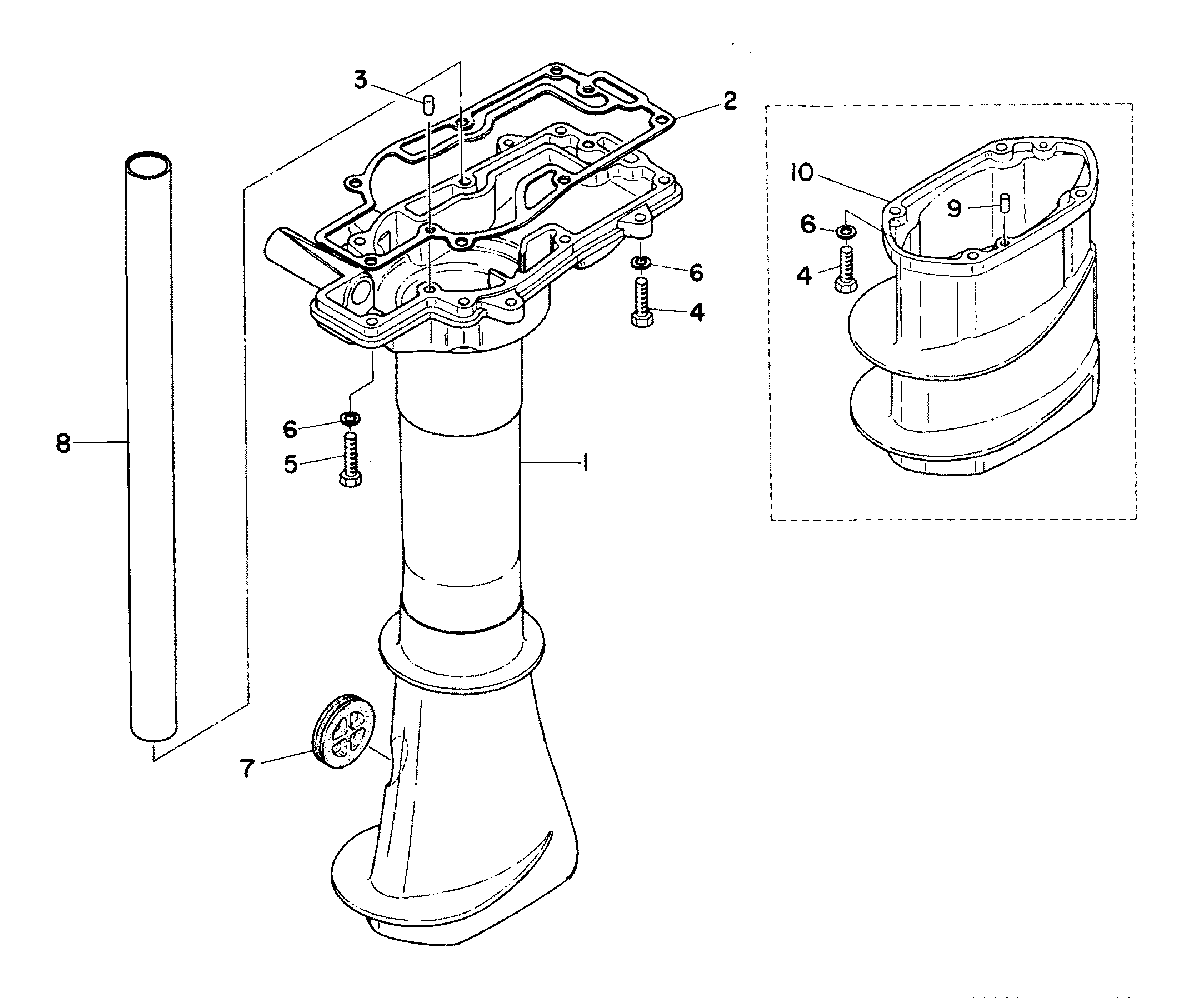

DRIVESHAFT HOUSING для Mariner - 8A 682-550141 THRU 551055 (EL)
-
№АртикулНазвание
-
11587-6873M DRIVESHAFT HOUSING, UPPER...
SERIAL 00000000-00020160DRIVESHAFT HOUSING, UPPER...
SERIAL 00000000-00020160 -
11587-6782M DRIVESHAFT HOUSING, UPPER...
SERIAL 16-55465-09999999DRIVESHAFT HOUSING, UPPER...
SERIAL 16-55465-09999999 -
11587-9271M DRIVESHAFT HOUSING - UPPER... .
SERIAL 00020661-09999999DRIVESHAFT HOUSING - UPPER... .
SERIAL 00020661-09999999 -
227-81082M GASKET, DRIVESHAFT HOUSING - UPPER...GASKET, DRIVESHAFT HOUSING - UPPER...
-
317-82359M PIN, DOWEL DRIVESHAFT HOUSING...PIN, DOWEL DRIVESHAFT HOUSING...
-
410-84058M BOLT, ATTACHING...BOLT, ATTACHING...
-
510-82405M BOLT, ATTACHING...BOLT, ATTACHING...
-
612-82214M WASHER...WASHER...
-
780533M COVER, ACCESS...COVER, ACCESS...
-
832-81083M COLLAR, DRIVESHAFT-UPPER (SHORT SHAFT)...
SERIAL 00000000-00020160COLLAR, DRIVESHAFT-UPPER (SHORT SHAFT)...
SERIAL 00000000-00020160 -
832-81084M COLLAR, DRIVESHAFT-UPPER (LONG SHAFT)...
SERIAL 00000000-00020160COLLAR, DRIVESHAFT-UPPER (LONG SHAFT)...
SERIAL 00000000-00020160 -
917-82354M PIN, DOWEL...PIN, DOWEL...
-
1083194M EXTENSION (LONG SHAFT)...EXTENSION (LONG SHAFT)...
