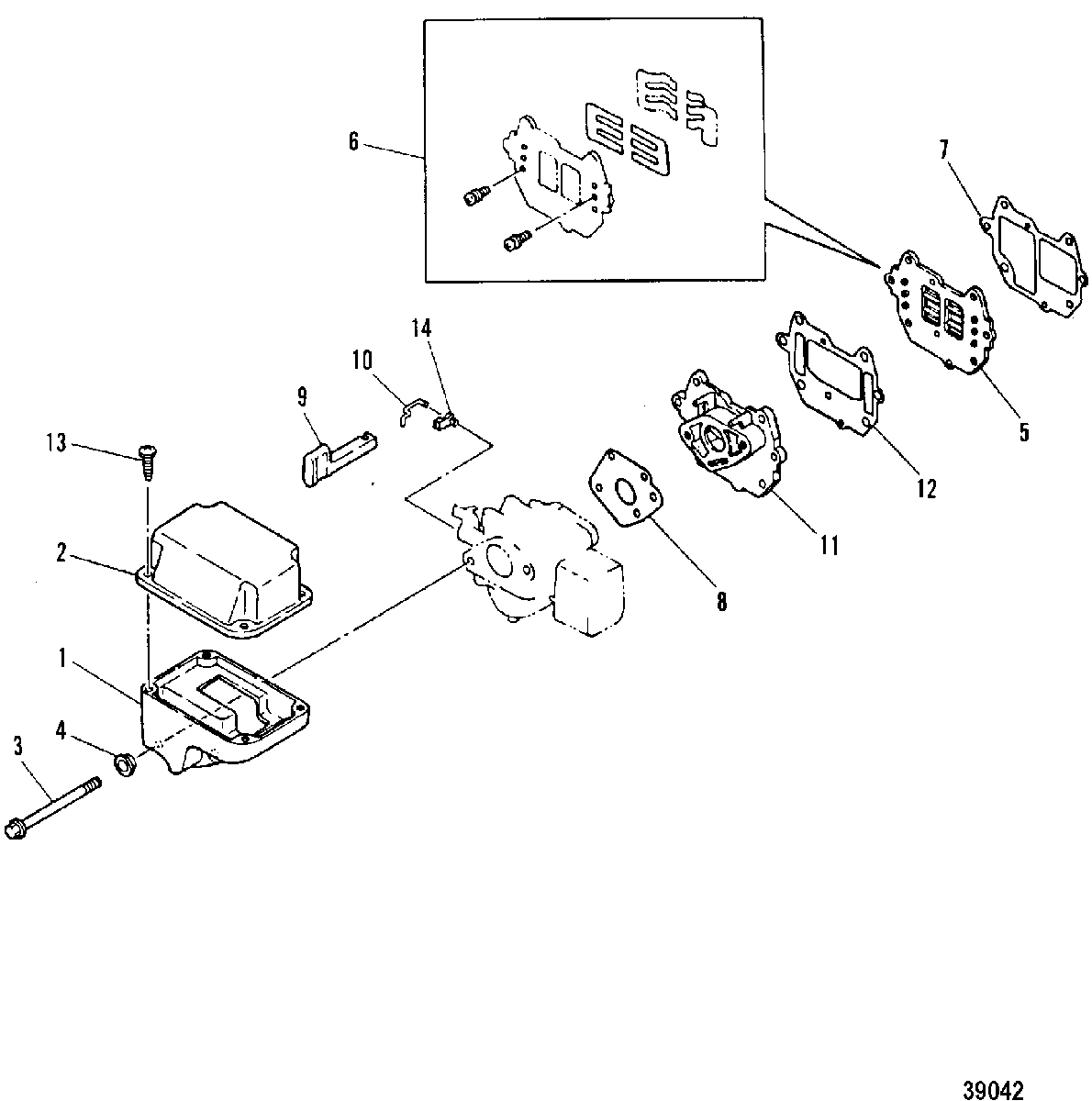

INTAKE MANIFOLD для Mariner - 8C 6G1-027238 & Up
-
№АртикулНазвание
-
111465M COVER, AIR INTAKE (OUTER)COVER, AIR INTAKE (OUTER)
-
211466M COVER, AIR INTAKE (INNER)COVER, AIR INTAKE (INNER)
-
310-11467M SCREWSCREW
-
423-17044M BUSHINGBUSHING
-
534-11469M REED VALVE ASSEMBLYREED VALVE ASSEMBLY
-
634-11470M REED SET (REED STOPS NOT INCLUDED)REED SET (REED STOPS NOT INCLUDED)
-
727-11471M GASKET, REED VALVEGASKET, REED VALVE
-
827-11472M GASKET, CARBURETORGASKET, CARBURETOR
-
911473M KNOB, CHOKEKNOB, CHOKE
-
1011474M ROD, CHOKE LINKROD, CHOKE LINK
-
1111475M MANIFOLD, INTAKEMANIFOLD, INTAKE
-
1227-11476M GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
1310-96610M SCREWSCREW
-
1416333 BRACKET, CHOKE RODBRACKET, CHOKE ROD
-
-27-11434M GASKET SETGASKET SET
