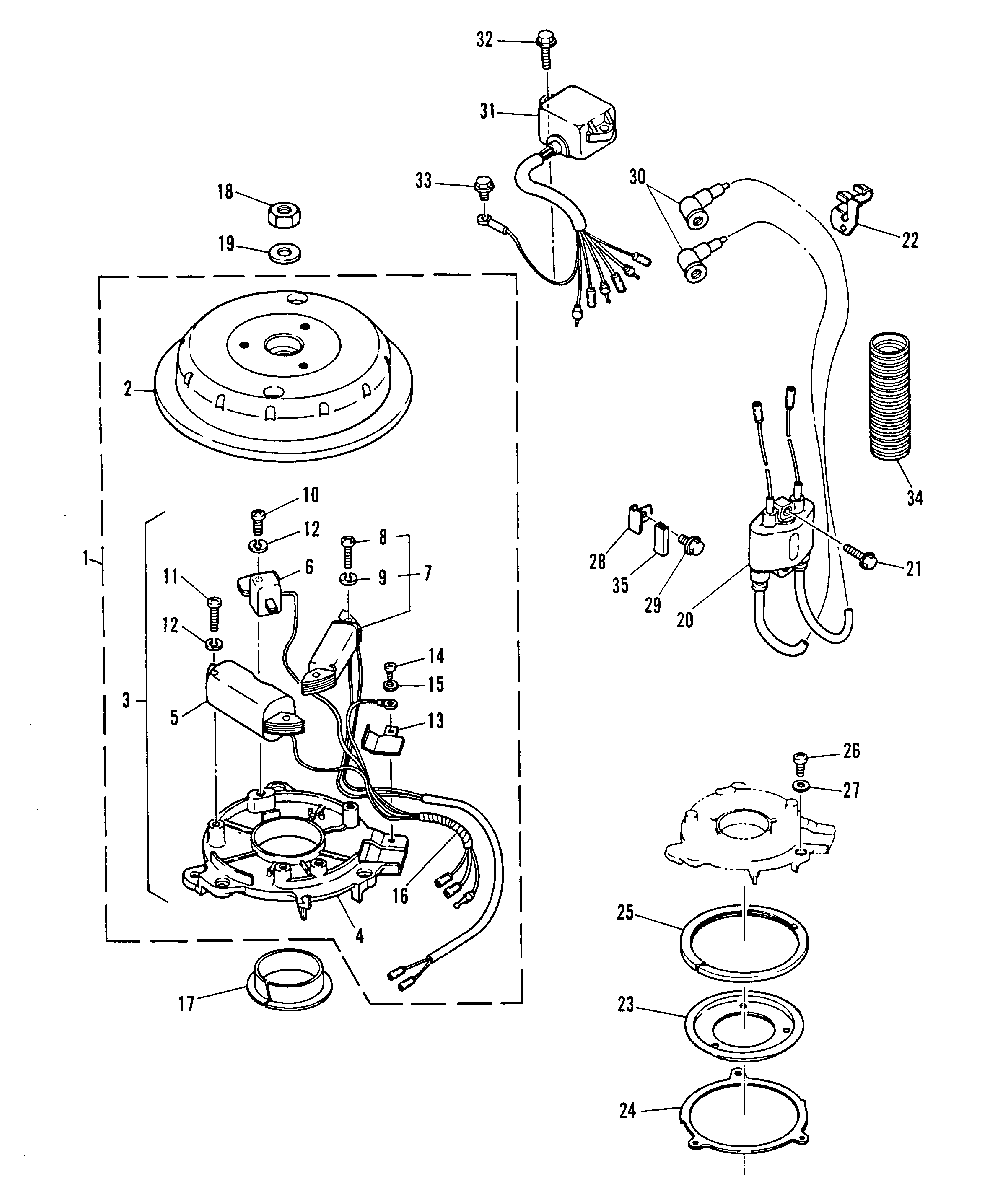

C.D.I. MAGNETO для Mariner - 8C 6G1-305951 THRU 316711
-
№АртикулНазвание
-
1253-9302M I. MAGNETO ASS'YI. MAGNETO ASS'Y
-
2253-9303M ROTOR ASS'YROTOR ASS'Y
-
311435M BASE AAS'YBASE AAS'Y
-
411436M BASE, MAGNETOBASE, MAGNETO
-
541829T CHARGE COIL ASS'YCHARGE COIL ASS'Y
-
641830M PLUSER COIL ASS'YPLUSER COIL ASS'Y
-
741866M LIGHTING COIL ASS'Y
LIGHTING COIL IS OPTIONAL ON U.S.A. ENGINES.LIGHTING COIL ASS'Y
LIGHTING COIL IS OPTIONAL ON U.S.A. ENGINES. -
810-83108M SCREWSCREW
-
913-82186M WASHERWASHER
-
1010-95178M SCREWSCREW
-
1110-815005M SCREWSCREW
-
1213-82186M WASHERWASHER
-
1354-11437M CLAMPCLAMP
-
1410-82500M SCREWSCREW
-
1513-82206M LOCK WASHERLOCK WASHER
-
1684-11439M WIRE, LEADWIRE, LEAD
-
1723-11440M BUSHINGBUSHING
-
1811-81769M NUTNUT
-
1912-81805M WASHERWASHER
-
2011441M IGNITION COIL ASS'YIGNITION COIL ASS'Y
-
2110-11945M BOLT
SERIAL 00006037-09999999BOLT
SERIAL 00006037-09999999 -
2110-99979M BOLT
SERIAL 00000000-00006036BOLT
SERIAL 00000000-00006036 -
2211442M BRACKETBRACKET
-
2311443M RETAINER, MAGNETO BASERETAINER, MAGNETO BASE
-
2411444M RETAINER, MAGNETO BASERETAINER, MAGNETO BASE
-
2592572M PLATE, BASE FRICTIONPLATE, BASE FRICTION
-
2610-83523M SCREWSCREW
-
2712-82211M WASHERWASHER
-
2811445M STOPPER, MAGNETO BASESTOPPER, MAGNETO BASE
-
2910-95456M BOLTBOLT
-
3085-63709A1 PLUG CAP ASS'YPLUG CAP ASS'Y
-
3141305M I. UNIT ASS'YI. UNIT ASS'Y
-
3210-91674M BOLTBOLT
-
3310-95456M BOLTBOLT
-
3432-11446M TUBINGTUBING
-
3511447M CAPCAP
