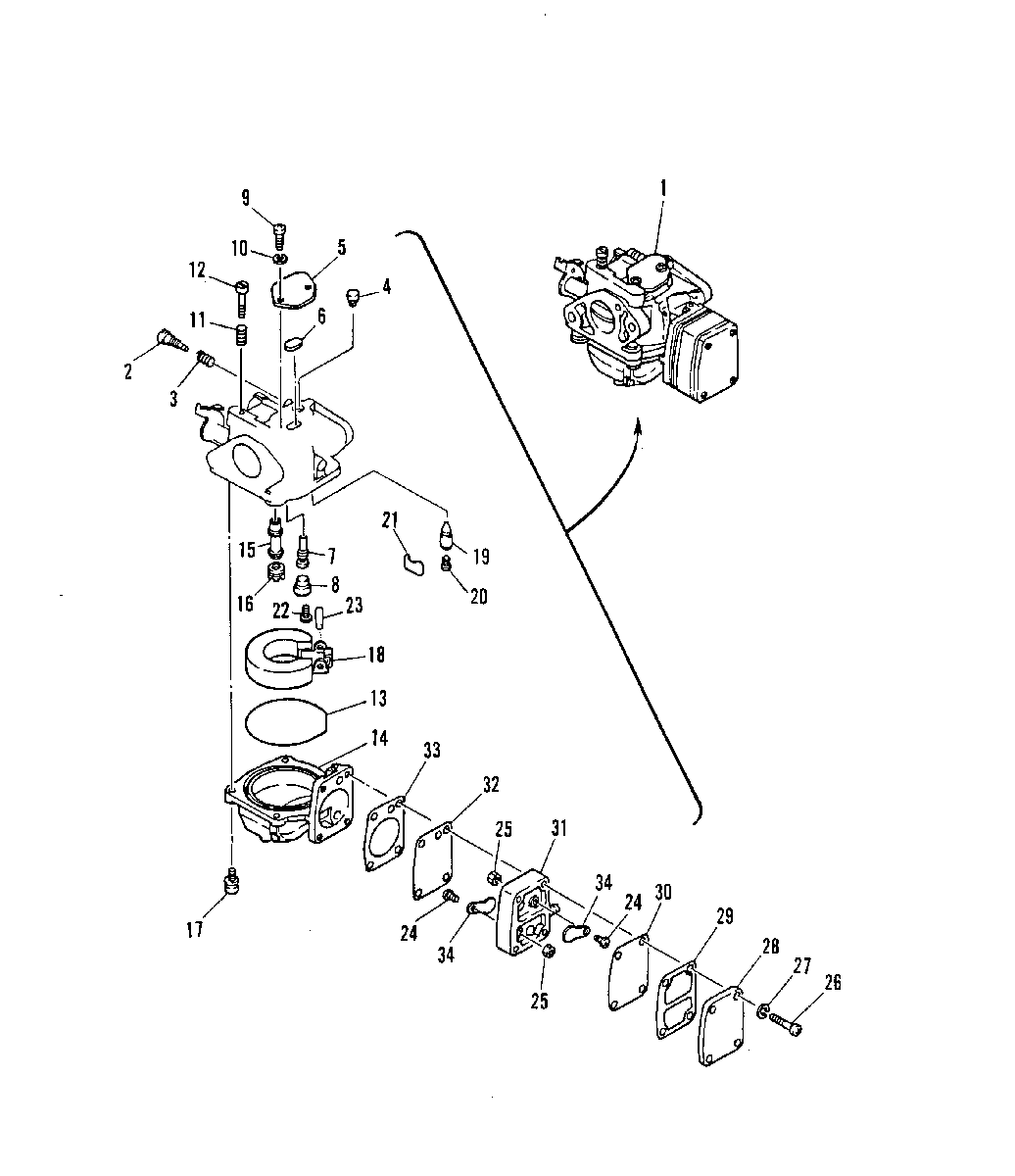

CARBURETOR для Mariner - 8C 6G1-700388 THRU 700865
-
№АртикулНазвание
-
11383-9307M CARBURETOR ASS'Y (8M MODEL)CARBURETOR ASS'Y (8M MODEL)
-
11383-9308M CARBURETOR ASS'Y (6M MODEL)CARBURETOR ASS'Y (6M MODEL)
-
210-83889M SCREW, ADJUSTINGSCREW, ADJUSTING
-
324-94499M SPRINGSPRING
-
419-11477M CAPCAP
-
511478M PLATEPLATE
-
611479M PACKINGPACKING
-
711480M JET, SLOW (#45)JET, SLOW (#45)
-
822-8M0080455 CAPCAP
-
910-83509M SCREWSCREW
-
1013-82206M LOCK WASHERLOCK WASHER
-
1124-82080M SPRINGSPRING
-
1210-81277M SCREW, STOPSCREW, STOP
-
1327-11483M GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
1411484M BODY, FLOAT CHAMBERBODY, FLOAT CHAMBER
-
1511485M NOZZLE, MAIN 98M MODEL)NOZZLE, MAIN 98M MODEL)
-
1511486M NOZZLE, MAIN (6M MODEL)NOZZLE, MAIN (6M MODEL)
-
1611487M JET, MAIN (#98 8M MODEL)JET, MAIN (#98 8M MODEL)
-
1611488M JET, MAIN (#100 6M MODEL)JET, MAIN (#100 6M MODEL)
-
1710-11796M SCREW, WITH WASHERSCREW, WITH WASHER
-
1811489M FLOATFLOAT
-
1911490M VALVE, FLOATVALVE, FLOAT
-
2017-92639M PIN, VALVEPIN, VALVE
-
2154-8M0120624 CLIPCLIP
-
2210-82500M SCREWSCREW
-
2317-97730M PIN, ARMPIN, ARM
-
2410-11492M SCREWSCREW
-
2511-11493M NUTNUT
-
2610-11494M SCREWSCREW
-
2713-82206M LOCK WASHERLOCK WASHER
-
2811495M COVER, PUMPCOVER, PUMP
-
2927-11496T GASKETGASKET
-
3011497M DIAPHRAGMDIAPHRAGM
-
3111498M BODY, PUMPBODY, PUMP
-
3211499T DIAPHRAGMDIAPHRAGM
-
3327-11500M GASKETGASKET
-
3421-11501M VALVE, CHECKVALVE, CHECK
-
3411502M REPAIR KIT, CARBURETOR
REPLACEMENT PARTSREPAIR KIT, CARBURETOR
REPLACEMENT PARTS
