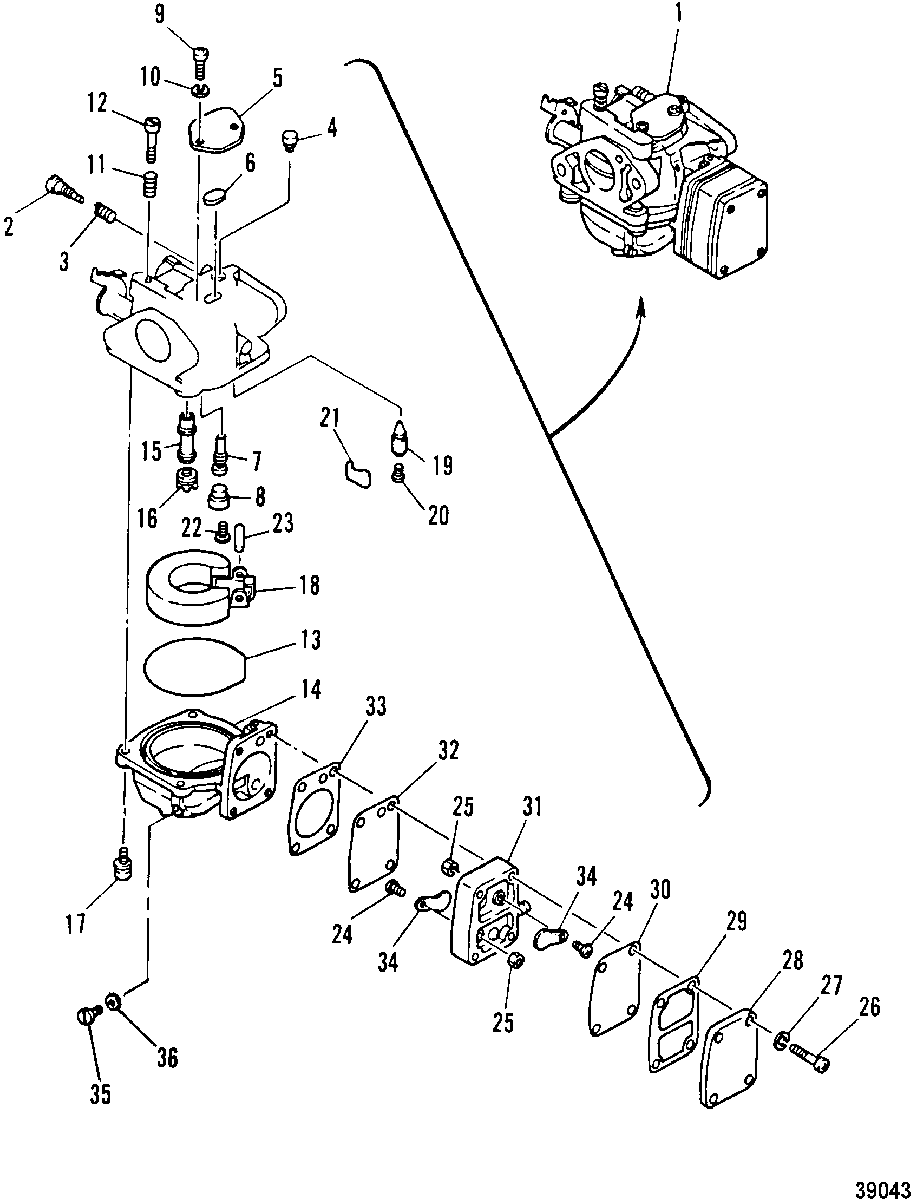

CARBURETOR для Mariner - 8C 6G1-7008786 & Up
-
№АртикулНазвание
-
11383-9692M CARBURETOR ASSEMBLY
(8M)CARBURETOR ASSEMBLY
(8M) -
11383-9693M CARBURETOR ASSEMBLY
(6M - 6H8)CARBURETOR ASSEMBLY
(6M - 6H8) -
11383-9694M CARBURETOR ASSEMBLY
(6M - 6H6)CARBURETOR ASSEMBLY
(6M - 6H6) -
210-83889M SCREW, ADJUSTINGSCREW, ADJUSTING
-
324-94499M SPRINGSPRING
-
419-11477M CAPCAP
-
511478M PLATEPLATE
-
611479M PACKINGPACKING
-
711480M JET, SLOW (#45)JET, SLOW (#45)
-
822-8M0080455 CAPCAP
-
910-82568M SCREWSCREW
-
1013-82206M LOCKWASHERLOCKWASHER
-
1124-82080M SPRINGSPRING
-
1210-81277M SCREW, STOPSCREW, STOP
-
1327-11483M GASKET, FLAOT CHAMBERGASKET, FLAOT CHAMBER
-
1417358M BODY, FLOAT CHAMBERBODY, FLOAT CHAMBER
-
1511485M NOZZLE, MAIN
(8M)NOZZLE, MAIN
(8M) -
1511486M NOZZLE, MAIN
(6M - 6H8)NOZZLE, MAIN
(6M - 6H8) -
1517359M NOZZLE, MAIN
(6M - 6H6)NOZZLE, MAIN
(6M - 6H6) -
1611487M JET, MAIN (#98)
(8M)JET, MAIN (#98)
(8M) -
1611488M JET, MAIN (#100)
(6M - 6H8)JET, MAIN (#100)
(6M - 6H8) -
1617360M JET, MAIN (#98)
(6M - 6H6)JET, MAIN (#98)
(6M - 6H6) -
1710-11796M SCREW, WITH WASHERSCREW, WITH WASHER
-
1811489M FLOATFLOAT
-
1911490M VALVE, FLOATVALVE, FLOAT
-
2017-92639M PIN, Float, VALVEPIN, Float, VALVE
-
2154-8M0120624 CLIPCLIP
-
2210-82500M SCREW, (M4 x 8)SCREW, (M4 x 8)
-
2317-97730M PIN, ARMPIN, ARM
-
2410-11492M SCREWSCREW
-
2511-11493M NUTNUT
-
2610-11494M SCREWSCREW
-
2713-82206M LOCKWASHERLOCKWASHER
-
2811495M COVER, PUMPCOVER, PUMP
-
2927-11496T GASKETGASKET
-
3011497M DIAPHRAGMDIAPHRAGM
-
3111498M BODY, PUMPBODY, PUMP
-
3211499T DIAPHRAGMDIAPHRAGM
-
3327-11500M GASKETGASKET
-
3421-11501M VALVE, CHECKVALVE, CHECK
-
3510-17361M SCREW, DRAINSCREW, DRAIN
-
3612-17362M WASHERWASHER
-
-11502M REPAIR KITREPAIR KIT
