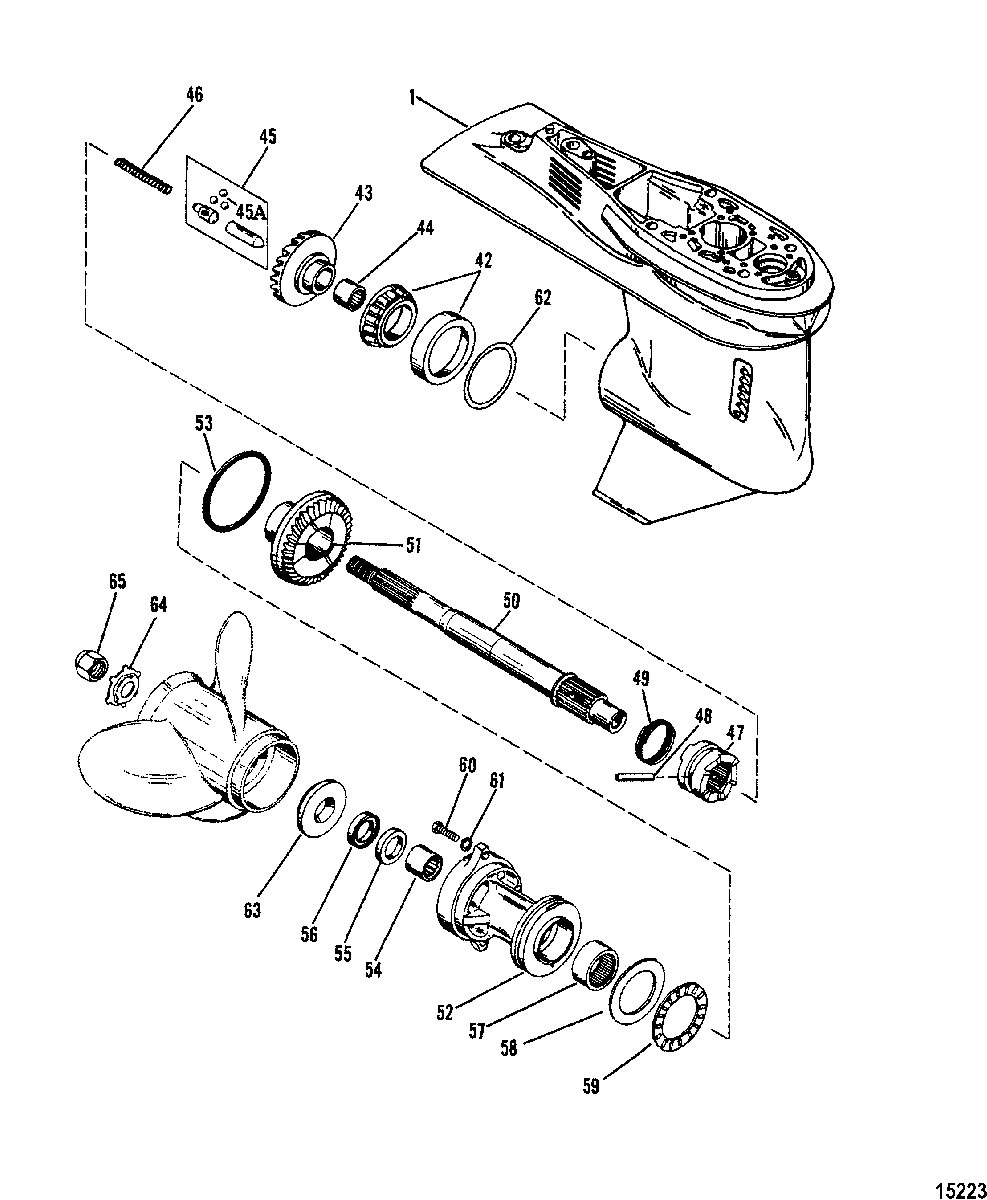

Gear Housing(Propeller Shaft) для Mariner - 90 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
-1667-9011J16 GEAR HOUSING ASSEMBLY, BlackGEAR HOUSING ASSEMBLY, Black
-
-1667-9011J16 GEAR HOUSING ASSEMBLY, GrayGEAR HOUSING ASSEMBLY, Gray
-
11667-9011T73 GEAR HOUSING ASSEMBLY, BlackGEAR HOUSING ASSEMBLY, Black
-
11667-9011T73 GEAR HOUSING ASSEMBLY, GrayGEAR HOUSING ASSEMBLY, Gray
-
4231-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
4343-12634T02 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
4431-30895T ROLLER BEARINGROLLER BEARING
-
45850315A1 CAM FOLLOWER ASSEMBLYCAM FOLLOWER ASSEMBLY
-
45A30-44530 BALLBALL
-
4624-30622 SPRINGSPRING
-
4752-822539T CLUTCHCLUTCH
-
4817-8M0100263 PIN, CrossPIN, Cross
-
4924-30893 SPRINGSPRING
-
5044-12238T PROPELLER SHAFTPROPELLER SHAFT
-
5143-12635T REVERSE GEARREVERSE GEAR
-
5212596T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
5325-861844 O-RINGO-RING
-
5431-30956T ROLLER BEARINGROLLER BEARING
-
5526-76868 SEAL, InnerSEAL, Inner
-
5626-70081 OIL SEAL, OuterOIL SEAL, Outer
-
5731-12578T ROLLER BEARINGROLLER BEARING
-
5812-12577 THRUST WASHERTHRUST WASHER
-
5931-12576 THRUST BEARINGTHRUST BEARING
-
6010-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
6112-4002317 WASHERWASHER
-
6215-8M0063266 SHIM SETSHIM SET
-
6313191Q01 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
6414-816629Q TAB WASHERTAB WASHER
-
6511-52707Q1 NUT, PropellerNUT, Propeller
-
-26-43035A4 GEAR HOUSING SEAL KITGEAR HOUSING SEAL KIT
-
-27-43004A99 GASKET SETGASKET SET
