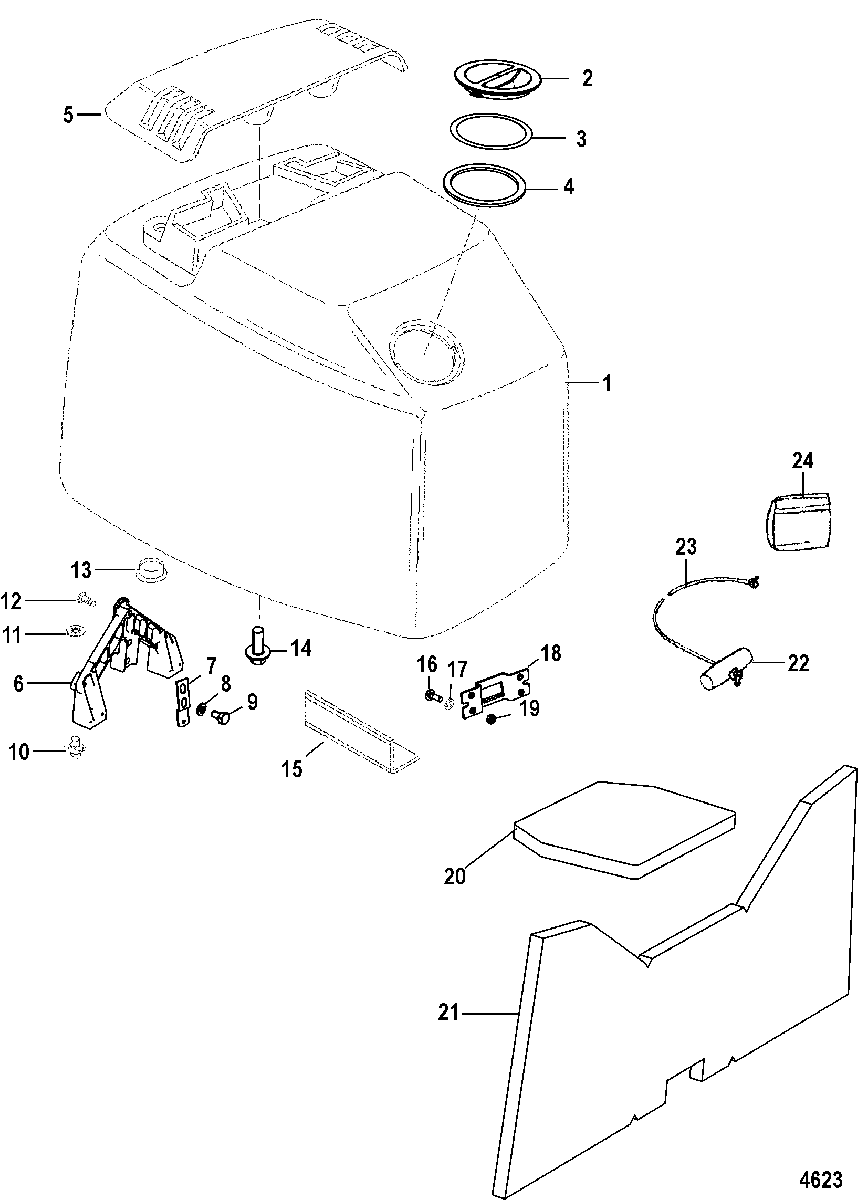

Top Cowl для Mariner - 90 (3 CYL.) 0T980000 THRU 0T999999
-
№АртикулНазвание
-
1100-8M0107146 TOP COWL ASSEMBLY
(Black-Electric)TOP COWL ASSEMBLY
(Black-Electric) -
1100-8M0107147 TOP COWL ASSEMBLY
(Silver-Electric)TOP COWL ASSEMBLY
(Silver-Electric) -
14026-828354T6 TOP COWL ASSEMBLY
(Black-Manual)TOP COWL ASSEMBLY
(Black-Manual) -
1100-8M0107148 TOP COWL ASSEMBLY
(Silver-Manual)TOP COWL ASSEMBLY
(Silver-Manual) -
2828716A2 CAPCAP
-
3828352 SEALSEAL
-
48283511 SEALSEAL
-
58218751 CAP, Upper
(Black)CAP, Upper
(Black) -
58218751 CAP, Upper
(Silver)CAP, Upper
(Silver) -
6819813T1 BRACKET, Cover LatchBRACKET, Cover Latch
-
7893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
813-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
910-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
10F481434 GUIDE, Cowl Latch BracketGUIDE, Cowl Latch Bracket
-
1111-91925 PUSH NUTPUSH NUT
-
1210-822512 SCREW, (.250-20 x 1.00)SCREW, (.250-20 x 1.00)
-
1319-823865 CAP PLUGCAP PLUG
-
1410-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
15823830 SUPPORTSUPPORT
-
1610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
188233941 BRACKETBRACKET
-
1911-8237515 NUT, (M4)NUT, (M4)
-
20823685A02 SOUND BLANKET KIT
(Hot Glue Adhesive)SOUND BLANKET KIT
(Hot Glue Adhesive) -
20823685A02 SOUND BLANKET KIT, (Pre-Applied Pressure Sensitive Adhesive)SOUND BLANKET KIT, (Pre-Applied Pressure Sensitive Adhesive)
-
21NSS NOT SOLD SEPARATE, Sound Blanket
(Manual)NOT SOLD SEPARATE, Sound Blanket
(Manual) -
21NSS NOT SOLD SEPARATE, Sound Blanket
(Electric)NOT SOLD SEPARATE, Sound Blanket
(Electric) -
2247341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
-
23NSS NOT SOLD SEPARATE, Starter RopeNOT SOLD SEPARATE, Starter Rope
-
24NSS NOT SOLD SEPARATE, EnvelopeNOT SOLD SEPARATE, Envelope
