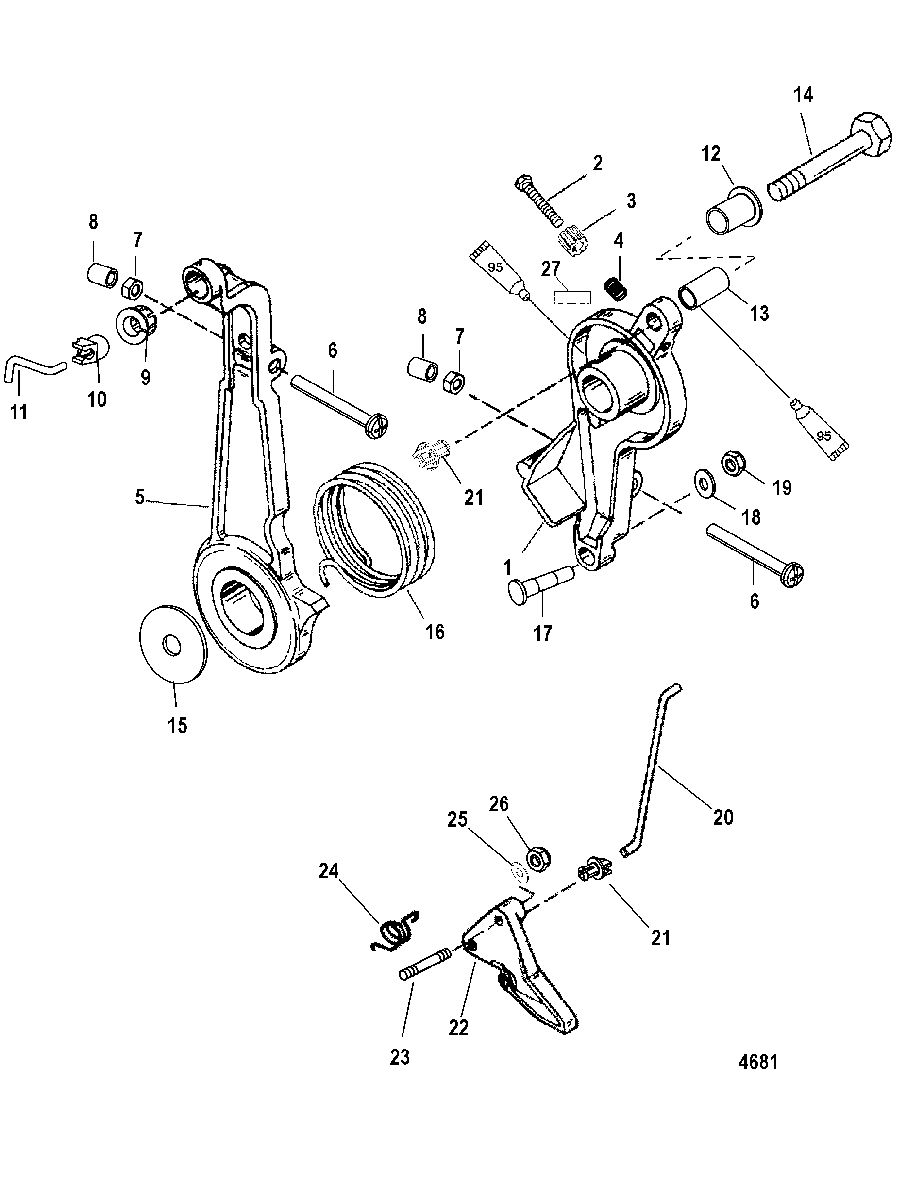

Throttle Lever and Linkage для Mariner - 90 (3 CYL.) 1B000001 & Up
-
№АртикулНазвание
-
142946T1 LEVER, ThrottleLEVER, Throttle
-
210-827008 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
3826264 CAPCAP
-
424-826382 SPRINGSPRING
-
5429471 LEVER, Spark AdvanceLEVER, Spark Advance
-
610-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
711-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
842942 CAPCAP
-
993254 SWIVEL BASESWIVEL BASE
-
1093421 SWIVEL BALLSWIVEL BALL
-
11878172 ROD, Spark AdvanceROD, Spark Advance
-
1223-812930A1 BUSHINGBUSHING
-
13NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
1410-4007180 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
1512-42980 WASHERWASHER
-
1624-55162 SPRINGSPRING
-
1742927 INSERTINSERT
-
1812-35459 WASHERWASHER
-
1911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
20878420T ROD, ThrottleROD, Throttle
-
2123-932481 BUSHINGBUSHING
-
2242948A7 CAM ASSEMBLY, ThrottleCAM ASSEMBLY, Throttle
-
2316-8161949 STUD, (M6 x 44)STUD, (M6 x 44)
-
2424-14159 SPRINGSPRING
-
2512-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
2611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
27NSS NOT SOLD SEPARATE (Decal-Idle Screw-Arrow up)NOT SOLD SEPARATE (Decal-Idle Screw-Arrow up)
