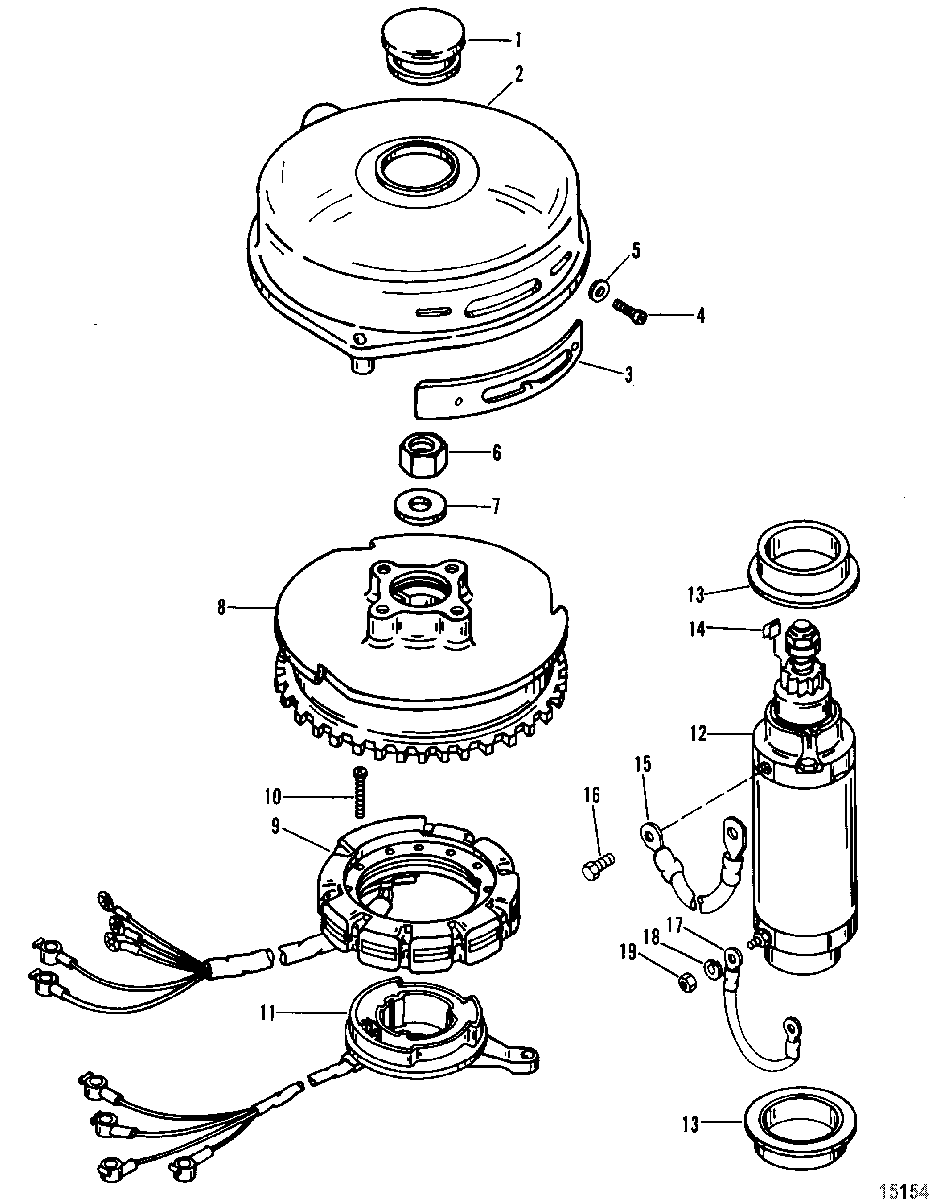

FLYWHEEL AND STARTER MOTOR для Mariner - 90 (3 CYL.) 9483121 THRU 9506480
-
№АртикулНазвание
-
119-45907 PLUG, Yellow, FLYWHEELPLUG, Yellow, FLYWHEEL
-
242956A1 COVER ASSEMBLY, FLYWHEELCOVER ASSEMBLY, FLYWHEEL
-
379022 MARKER, TIMINGMARKER, TIMING
-
410-37572 SCREW, (.190-32 x .380), TIMING MARKERSCREW, (.190-32 x .380), TIMING MARKER
-
512-72761 WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREWWASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW
-
611-42979 NUT, (M16), FLYWHEELNUT, (M16), FLYWHEEL
-
712-33001 WASHER, (.641 x 1.250 x .190), FLYWHEELWASHER, (.641 x 1.250 x .190), FLYWHEEL
-
8261-859234T30 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
9398-8778A10 STATOR ASSEMBLYSTATOR ASSEMBLY
-
1010-4007325 SCREW, (M5 x 25), STATORSCREW, (M5 x 25), STATOR
-
1199021A3 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
1250-893891T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1323-8M0034918 COLLAR, STARTER MOTORCOLLAR, STARTER MOTOR
-
148M0043376 STOP, RUBBER-STARTER MOTORSTOP, RUBBER-STARTER MOTOR
-
1584-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, STARTER MOTOR TO PLATECABLE ASSEMBLY, (6.00 Inches) Black, STARTER MOTOR TO PLATE
-
1610-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, WIRE TO STARTER MOTORSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, WIRE TO STARTER MOTOR
-
1784-88439A20 WIRE, STARTER MOTOR (BLACK)WIRE, STARTER MOTOR (BLACK)
-
1813-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINALLOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
-
1911-64015 NUT, (.250-20), STARTER MOTOR TERMINALNUT, (.250-20), STARTER MOTOR TERMINAL
