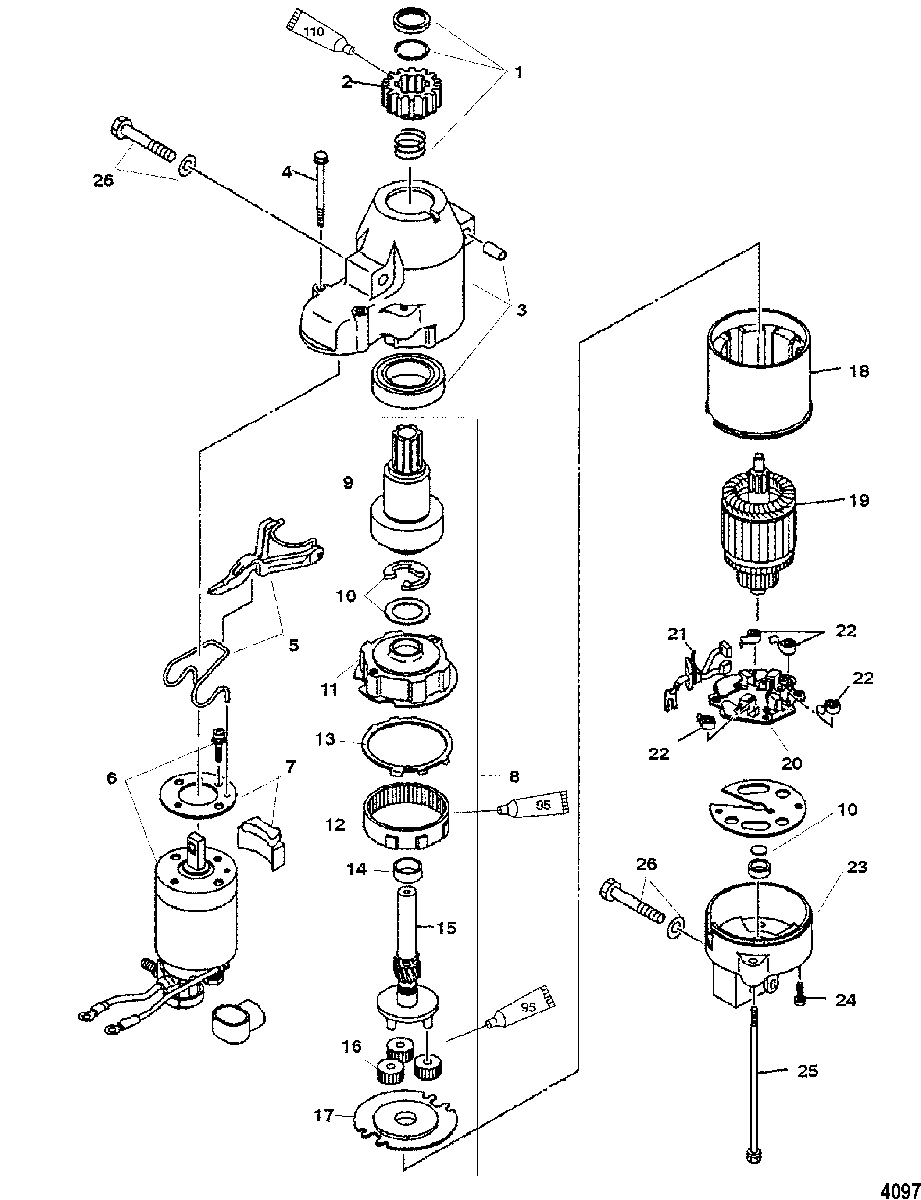

Starter Motor для Mariner - 90 (4-STROKE) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
-50-8M0065220 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1804320 STOP SET, PinionSTOP SET, Pinion
-
2804319 PINIONPINION
-
3804331T COVERCOVER
-
410-804336 BOLT, (M6 x 52)BOLT, (M6 x 52)
-
5804332 LEVER KITLEVER KIT
-
6804333T RELAY, StarterRELAY, Starter
-
7804334 COVERCOVER
-
8804321T1 GEAR KITGEAR KIT
-
9804322 CLUTCHCLUTCH
-
1012-804330 WASHER KITWASHER KIT
-
11804324 BRACKETBRACKET
-
12804326 RING GEARRING GEAR
-
1327-804327 GASKETGASKET
-
1431-804325 BEARINGBEARING
-
15804323 SHAFT, PinionSHAFT, Pinion
-
1643-804329001 IDLER GEARIDLER GEAR
-
17804328 BRACKETBRACKET
-
18804314T STATORSTATOR
-
19804313T ARMATUREARMATURE
-
20804315T1 HOLDER KIT, BrushHOLDER KIT, Brush
-
21804316 BRUSH SETBRUSH SET
-
2224-804317 SPRINGSPRING
-
23804318T BRACKETBRACKET
-
2410-804337 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
2510-804335 THRU BOLT, (M6 x 120)THRU BOLT, (M6 x 120)
-
2610-804605 BOLT, (M8 x 45)BOLT, (M8 x 45)
