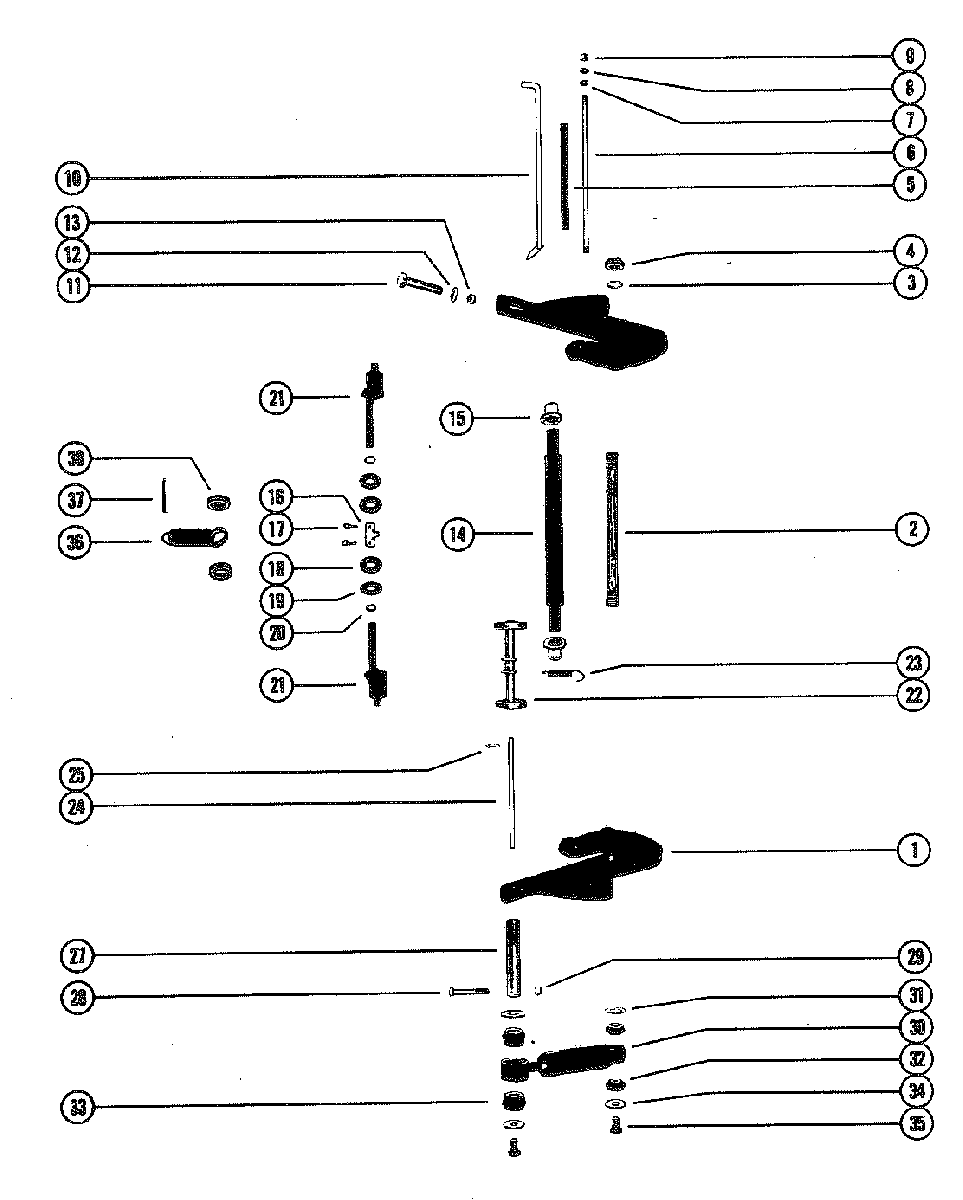

TRANSOM BRACKET для Mariner - 90 (6 CYL.) 5721325 THRU 6436122
-
№АртикулНазвание
-
11496-8822A1 TRANSOM BRACKETTRANSOM BRACKET
-
289099 TILT TUBETILT TUBE
-
313-89297 WASHER, WAVE-TILT TUBEWASHER, WAVE-TILT TUBE
-
411-858869 NUT, TILT TUBENUT, TILT TUBE
-
523-87642 SPACER, TRANSOM BRACKET STUDSPACER, TRANSOM BRACKET STUD
-
616-87643 STUD, TRANSOM BRACKET-NOT USED WITH POWER TRIMSTUD, TRANSOM BRACKET-NOT USED WITH POWER TRIM
-
712-36001 WASHER, TRANSOM BRACKET STUDWASHER, TRANSOM BRACKET STUD
-
813-26993 LOCKWASHER, TRANSOM BRACKET STUDLOCKWASHER, TRANSOM BRACKET STUD
-
911-28770 NUT, TRANSOM BRACKET STUDNUT, TRANSOM BRACKET STUD
-
1017-8M0026068 TILT LOCK PIN ASSEMBLY-NOT USED WITH POWER TRIMTILT LOCK PIN ASSEMBLY-NOT USED WITH POWER TRIM
-
1110-89673 BOLT, TRANSOM BRACKET (5")BOLT, TRANSOM BRACKET (5")
-
1212-46765 WASHER, TRANSOM BRACKET BOLTWASHER, TRANSOM BRACKET BOLT
-
1311-82671112 NUT, TRANSOM BRACKET BOLTNUT, TRANSOM BRACKET BOLT
-
1110-677552 BOLT, TRANSOM BRACKET (6")BOLT, TRANSOM BRACKET (6")
-
1212-28421 WASHER, TRANSOM BRACKET BOLTWASHER, TRANSOM BRACKET BOLT
-
1311-91962 NUT, TRANSOM BRACKET BOLTNUT, TRANSOM BRACKET BOLT
-
1489116 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
1523-89117 BUSHING, UPPER SHOCK MOUNTING PINBUSHING, UPPER SHOCK MOUNTING PIN
-
1679659 COUPLING, TILT LOCKCOUPLING, TILT LOCK
-
1718-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
1826-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)OIL SEAL, SWIVEL BRACKET (TILT LOCK)
-
1912-76388 WASHER, TILT LOCKWASHER, TILT LOCK
-
2025-627021 "O"RING, TILT LOCK"O"RING, TILT LOCK
-
2189105 TILT LOCKTILT LOCK
-
2287431 REVERSE LOCK ASS'Y
NOT USED WITH POWER TRIM UNITED STATES 5855841 AND BELOWREVERSE LOCK ASS'Y
NOT USED WITH POWER TRIM UNITED STATES 5855841 AND BELOW -
2324-78203A2 SPRING ASS'Y
NOT USED WITH POWER TRIM UNITED STATES 5855841 AND BELOWSPRING ASS'Y
NOT USED WITH POWER TRIM UNITED STATES 5855841 AND BELOW -
2214664A3 REVERSE LOCK ASS'Y
NOT USED WITH POWER TRIM UNITED STATES 5855842 AND UPREVERSE LOCK ASS'Y
NOT USED WITH POWER TRIM UNITED STATES 5855842 AND UP -
2324-78203A2 SPRING ASSEMBLY
NOT USED WITH POWER TRIM UNITED STATES 5855842 AND UPSPRING ASSEMBLY
NOT USED WITH POWER TRIM UNITED STATES 5855842 AND UP -
2456349 SHAFT, REVERSE LOCK PIVOT
NOT USED WITH POWER TRIMSHAFT, REVERSE LOCK PIVOT
NOT USED WITH POWER TRIM -
2518-45882 COTTER PIN, LOCK TO SHAFT
NOT USED WITH POWER TRIMCOTTER PIN, LOCK TO SHAFT
NOT USED WITH POWER TRIM -
2755-28414 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
2810-21937 SCREW, LOWER SHOCK PIN (2")SCREW, LOWER SHOCK PIN (2")
-
2911-20184 NUT, LOWER SHOCK PIN SCREWNUT, LOWER SHOCK PIN SCREW
-
3055-58780A4 SHOCK ABSORBER
NOT USED WITH POWER TRIMSHOCK ABSORBER
NOT USED WITH POWER TRIM -
3112-28196 WASHER, UPPER BUSHING RETAINER (INNER)
NOT USED WITH POWER TRIMWASHER, UPPER BUSHING RETAINER (INNER)
NOT USED WITH POWER TRIM -
3223-32171 BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
NOT USED WITH POWER TRIMBUSHING, RUBBER-SHOCK ABSORBER (UPPER)
NOT USED WITH POWER TRIM -
3323-28198 BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
NOT USED WITH POWER TRIMBUSHING, RUBBER-SHOCK ABSORBER (LOWER)
NOT USED WITH POWER TRIM -
3412-69374 WASHER, UPPER/LOWER SHOCK PIN (LOWER)
NOT USED WITH POWER TRIMWASHER, UPPER/LOWER SHOCK PIN (LOWER)
NOT USED WITH POWER TRIM -
3510-69375 SCREW, UPPER AND LOWER SHOCK PIN
NOT USED WITH POWER TRIMSCREW, UPPER AND LOWER SHOCK PIN
NOT USED WITH POWER TRIM -
3624-94891 SPRING, COIL-SWIVEL BRACKET
NOT USED WITH POWER TRIMSPRING, COIL-SWIVEL BRACKET
NOT USED WITH POWER TRIM -
3717-38311 PIN, COIL SPRING MOUNTING
NOT USED WITH POWER TRIMPIN, COIL SPRING MOUNTING
NOT USED WITH POWER TRIM -
3823-28688 SPACER, RUBBER-COIL SPRING
NOT USED WITH POWER TRIMSPACER, RUBBER-COIL SPRING
NOT USED WITH POWER TRIM
