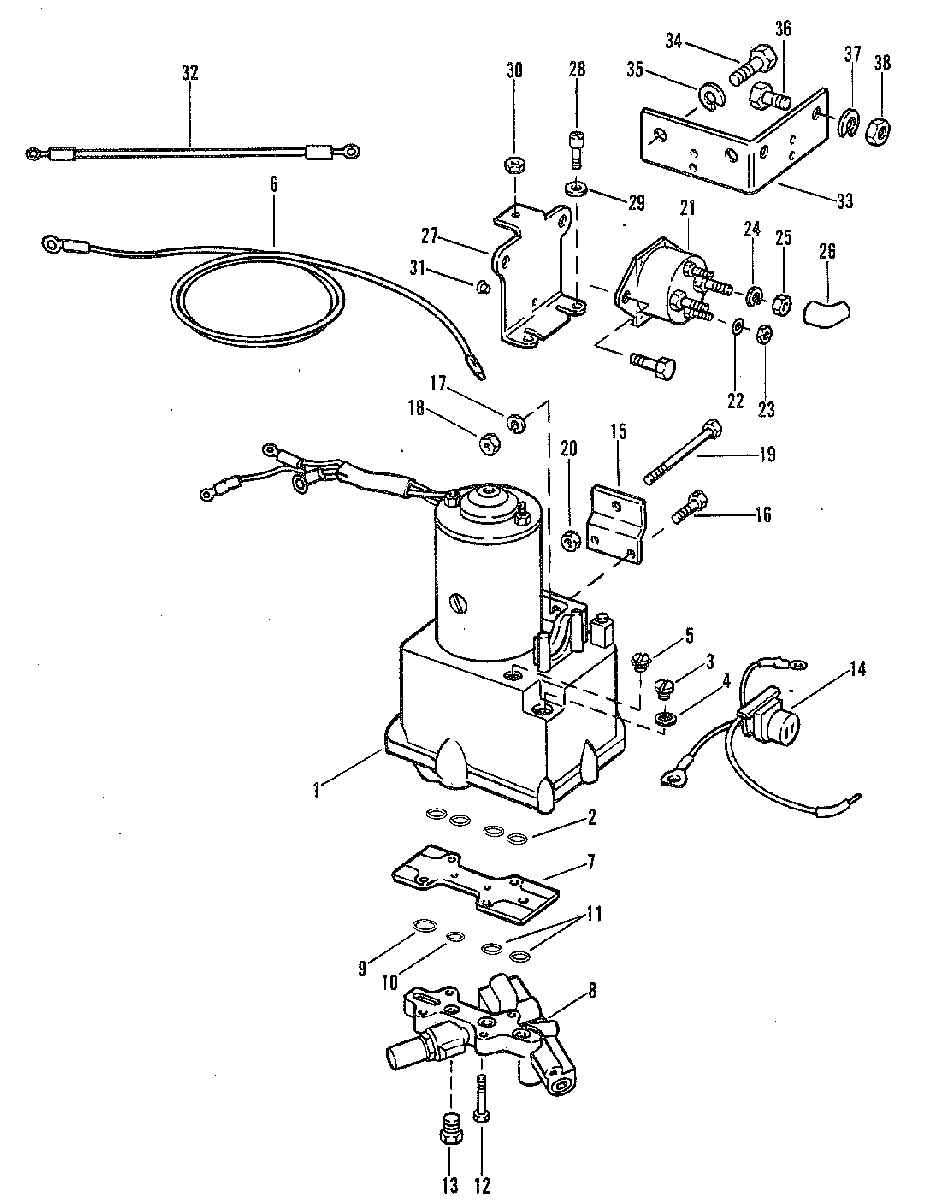

POWER TRIM COMPONENTS для Mariner - 90 (6 CYL.) 7190903 THRU 7208847
-
№АртикулНазвание
-
192975A32 HYDRAULIC PUMP ASS'Y (METAL RESERVOIR) - SEE NOTE BELOWHYDRAULIC PUMP ASS'Y (METAL RESERVOIR) - SEE NOTE BELOW
-
192975A32 HYDRAULIC PUMP ASS'Y (PLASTIC RESERVOIR) - SEE NOTE BELOWHYDRAULIC PUMP ASS'Y (PLASTIC RESERVOIR) - SEE NOTE BELOW
-
225-48171 "O" RING, MANIFOLD PLATE"O" RING, MANIFOLD PLATE
-
310-79953Q04 SCREW, FILLER - HYDRAULIC PUMPSCREW, FILLER - HYDRAULIC PUMP
-
412-191833 WASHER, SEALING - FILLER SCREWWASHER, SEALING - FILLER SCREW
-
510-62269 SCREW, VENT - HYDRAULIC PUMPSCREW, VENT - HYDRAULIC PUMP
-
632979 BATTERY LEAD (POSITIVE)BATTERY LEAD (POSITIVE)
-
632988 BATTERY LEAD (NEGATIVE)BATTERY LEAD (NEGATIVE)
-
745336 PLATE, MANIFOLDPLATE, MANIFOLD
-
845197A2 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
--25-48171 "O" RING, MANIFOLD PLATE (SEE REF.#2)"O" RING, MANIFOLD PLATE (SEE REF.#2)
-
925-45254 "O" RING, CONTROL VALVE (3.4" O.D.)"O" RING, CONTROL VALVE (3.4" O.D.)
-
1025-48171 "O" RING, CONTROL VALVE (1/2" O.D.)"O" RING, CONTROL VALVE (1/2" O.D.)
-
1125-45253 "O" RING, CONTROL VALVE (5/8" O.D.)"O" RING, CONTROL VALVE (5/8" O.D.)
-
1210-56500 SCREW, VALVE AND MANIFOLD PLATE TO PUMP (1-1/4')SCREW, VALVE AND MANIFOLD PLATE TO PUMP (1-1/4')
-
1322-46008 PLUG, CONTROL VALVE (1/2-20")PLUG, CONTROL VALVE (1/2-20")
-
1484-74023A1 CONNECTOR AND HARNESSCONNECTOR AND HARNESS
-
1545377T BRACKET, MOUNTINGBRACKET, MOUNTING
-
1610-35386 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")
-
1713-39107 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
1811-21908 NUT, MOUNTING BRACKET SCREWNUT, MOUNTING BRACKET SCREW
-
1910-68298 BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")
-
2011-82671112 NUT, HYDRAULIC PUMP BOLTNUT, HYDRAULIC PUMP BOLT
-
2189-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
2213-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
2398147A1 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
2413-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
2511-68292 NUT, SOLENOID TERMINAL (5/16")NUT, SOLENOID TERMINAL (5/16")
-
2646265 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
2774407T BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
2810-21140 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
-
2913-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
3011-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLTNUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
-
31269011 BUMPER, RUBBER - SOLENOID BRACKETBUMPER, RUBBER - SOLENOID BRACKET
-
3284-79139A2 JUMPER WIRE (POSITIVE)JUMPER WIRE (POSITIVE)
-
3255992 JUMPER WIRE (NEGATIVE)JUMPER WIRE (NEGATIVE)
-
3374406 BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
3410-69028 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")
-
3513-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
3610-34290 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
-
3713-26992 LOCKWASHER, STARTER SOLENOID SCREWLOCKWASHER, STARTER SOLENOID SCREW
-
3811-21825 NUT, STARTER SOLENOID SCREWNUT, STARTER SOLENOID SCREW
