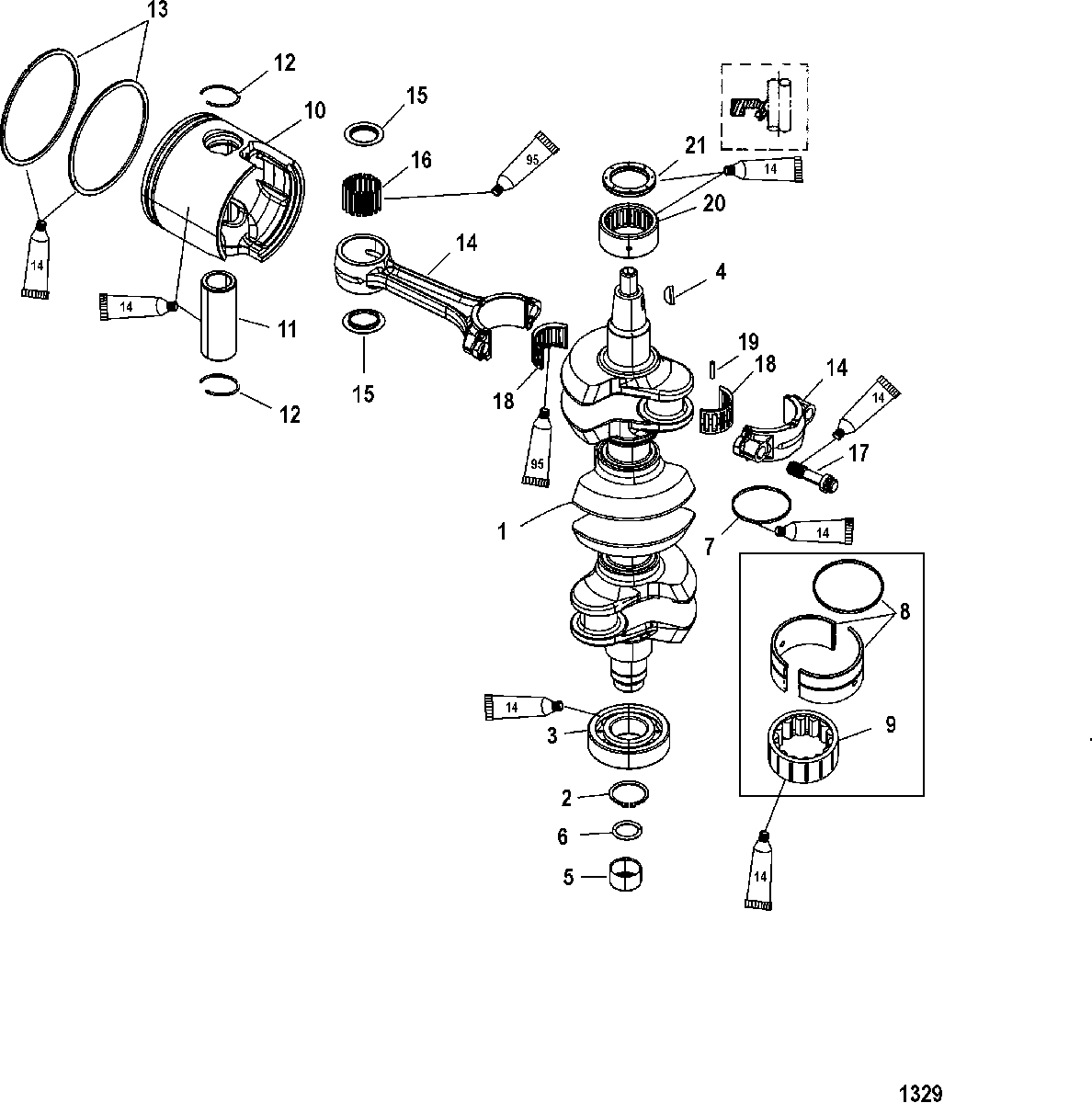

Crankshaft, Pistons and Connecting Rods для Mariner - 90 DFI (3 CYL.)(1.5L) 0T980000 THRU 1B226999

№

Артикул

Название
1

400-879633T01 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

290 320 ₽
2

53-880119 RING, Retaining

RING, Retaining

300 ₽
3

30-43011T BEARING, Ball (LOWER)

BEARING, Ball (LOWER)

5 400 ₽
4

28-91800 KEY, Woodruff

KEY, Woodruff

340 ₽
5

786611 WEAR SLEEVE

WEAR SLEEVE

400 ₽
6

25-35126 O-RING, (.859 x .139)

O-RING, (.859 x .139)

200 ₽
7

39-8M0071643 RING, Seal

RING, Seal

630 ₽
8

31-879848A02 BEARING

BEARING

15 180 ₽
9

NSS NOT SOLD SEPARATE, Needle Bearing

NOT SOLD SEPARATE, Needle Bearing

0 ₽
10

700-879858T08 PISTON ASSEMBLY
(Standard)

PISTON ASSEMBLY
(Standard)

24 280 ₽
10

700-896961A02 PISTON ASSEMBLY
(.015 Oversize)

PISTON ASSEMBLY
(.015 Oversize)

26 190 ₽
10

700-896962A02 PISTON ASSEMBLY
(.030 Oversize)

PISTON ASSEMBLY
(.030 Oversize)

24 100 ₽
11

NSS NOT SOLD SEPARATE, Piston Pin

NOT SOLD SEPARATE, Piston Pin

0 ₽
12

40-841202 RING

RING

230 ₽
13

39-827179A12 RING SET, Piston
(Standard)

RING SET, Piston
(Standard)

27 970 ₽
13

39-875252A12 RING SET, Piston
(.015 Oversize)

RING SET, Piston
(.015 Oversize)

55 390 ₽
13

39-875257A12 RING SET, Piston
(.030 Oversize)

RING SET, Piston
(.030 Oversize)

60 600 ₽
14

600-888470T05 CONNECTING ROD ASSEMBLY
SN# 0T845718 & Below

CONNECTING ROD ASSEMBLY
SN# 0T845718 & Below

43 350 ₽
14

600-888470T02 CONNECTING ROD ASSEMBLY
SN# 0T845719 THRU 1B189548

CONNECTING ROD ASSEMBLY
SN# 0T845719 THRU 1B189548

47 330 ₽
14

600-888470T06 CONNECTING ROD ASSEMBLY
SN# 1B189549 & Up

CONNECTING ROD ASSEMBLY
SN# 1B189549 & Up

52 490 ₽
15

12-88263 THRUST WASHER

THRUST WASHER

940 ₽
16

29-88258001 BEARING, Needle

BEARING, Needle

70 ₽
17

10-94320 SCREW, (.375-24 x 1.250)

SCREW, (.375-24 x 1.250)

650 ₽
18

31-892287A01 BEARING ASSEMBLY
SN# 1B189548 & Below

BEARING ASSEMBLY
SN# 1B189548 & Below

11 940 ₽
18

31-844338A01 BEARING/CAGE KIT
SN# 1B189549 & Up

BEARING/CAGE KIT
SN# 1B189549 & Up

9 160 ₽
19

NSS NOT SOLD SEPARATE, Roller Bearing

NOT SOLD SEPARATE, Roller Bearing

0 ₽
20

31-879853A01 BEARING ASSEMBLY, Roller (UPPER)

BEARING ASSEMBLY, Roller (UPPER)

9 640 ₽
21

26-879635 SEAL, Oil

SEAL, Oil

4 830 ₽
0

27-879855A04 GASKET SET, Powerhead

GASKET SET, Powerhead

10 910 ₽
0

895233A07 POWERHEAD ASSEMBLY
(75)

POWERHEAD ASSEMBLY
(75)

548 130 ₽
0

891767A07 POWERHEAD ASSEMBLY
(90/115)

POWERHEAD ASSEMBLY
(90/115)

576 370 ₽
