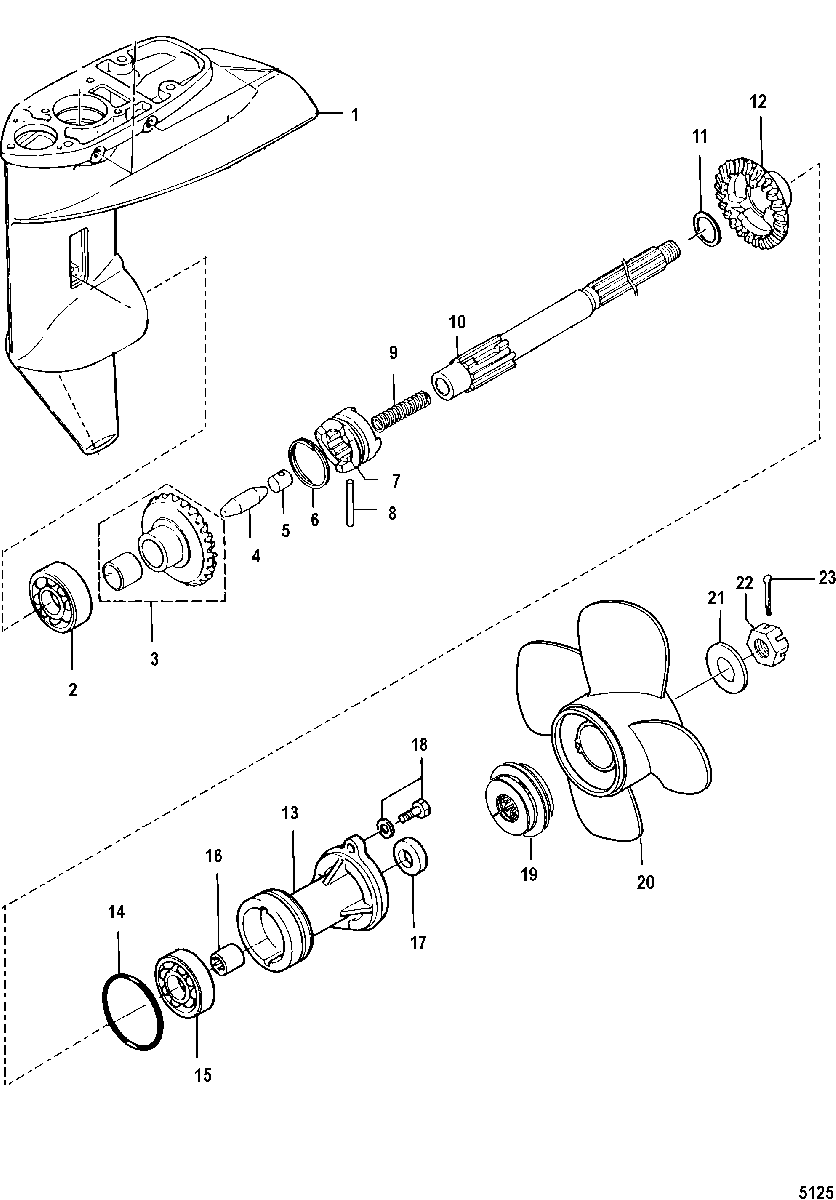

Gear Housing, Propeller Shaft-Bigfoot для Mariner - 9.9 (4-STROKE)(209cc) 0P325500 & Up
-
№АртикулНазвание
-
-1668-8M0070884 GEAR HOUSING ASSEMBLY, Complete
Long SN# USA-0R198975/BEL-0P513351 & BelowGEAR HOUSING ASSEMBLY, Complete
Long SN# USA-0R198975/BEL-0P513351 & Below -
-1668-8M0070884 GEAR HOUSING ASSEMBLY, Complete
Long SN# USA-0R198976/BEL-0P513352 & UpGEAR HOUSING ASSEMBLY, Complete
Long SN# USA-0R198976/BEL-0P513352 & Up -
-1668-8M0070895 GEAR HOUSING ASSEMBLY, Complete
X-Long SN# USA-0R198975/BEL-0P513351 & BelowGEAR HOUSING ASSEMBLY, Complete
X-Long SN# USA-0R198975/BEL-0P513351 & Below -
-1668-8M0070895 GEAR HOUSING ASSEMBLY, Complete
X-Long SN# USA-0R198976/BEL-0P513352 & UpGEAR HOUSING ASSEMBLY, Complete
X-Long SN# USA-0R198976/BEL-0P513352 & Up -
11668-8M0070873 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
230-16132T01 BEARING, BallBEARING, Ball
-
343-803739T03 GEAR, ForwardGEAR, Forward
-
4803747 PUSH RODPUSH ROD
-
5853764003 HOLDERHOLDER
-
624-803746 SPRINGSPRING
-
752-803745 CLUTCHCLUTCH
-
817-160851 PINPIN
-
924-176672 SPRINGSPRING
-
1044-8M0088568 PROPELLER SHAFTPROPELLER SHAFT
-
1112-803742 WASHERWASHER
-
1243-803741T03 GEAR, ReverseGEAR, Reverse
-
138M0070877 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
1425-8M0087846 O-RINGO-RING
-
1530-16132T01 BEARING, BallBEARING, Ball
-
1631-803734 BEARING, NeedleBEARING, Needle
-
1726-161622 SEAL, OilSEAL, Oil
-
1810-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
198M0143215 THRUST HOLDERTHRUST HOLDER
-
2048-812948A10 BLACK MAX PROPELLER, 4 Blade (10 Diameter/7 Pitch)
Silver-Power TiltBLACK MAX PROPELLER, 4 Blade (10 Diameter/7 Pitch)
Silver-Power Tilt -
2048-812950A10 BLACK MAX PROPELLER, 4 Blade (10 Diameter/7 Pitch)
Black-Non Power TiltBLACK MAX PROPELLER, 4 Blade (10 Diameter/7 Pitch)
Black-Non Power Tilt -
2112-161402 WASHERWASHER
-
2211-161471 PROP NUTPROP NUT
-
2318-8150264 COTTER PINCOTTER PIN
-
-27-8M0082884 GASKET SET, Lower UnitGASKET SET, Lower Unit
