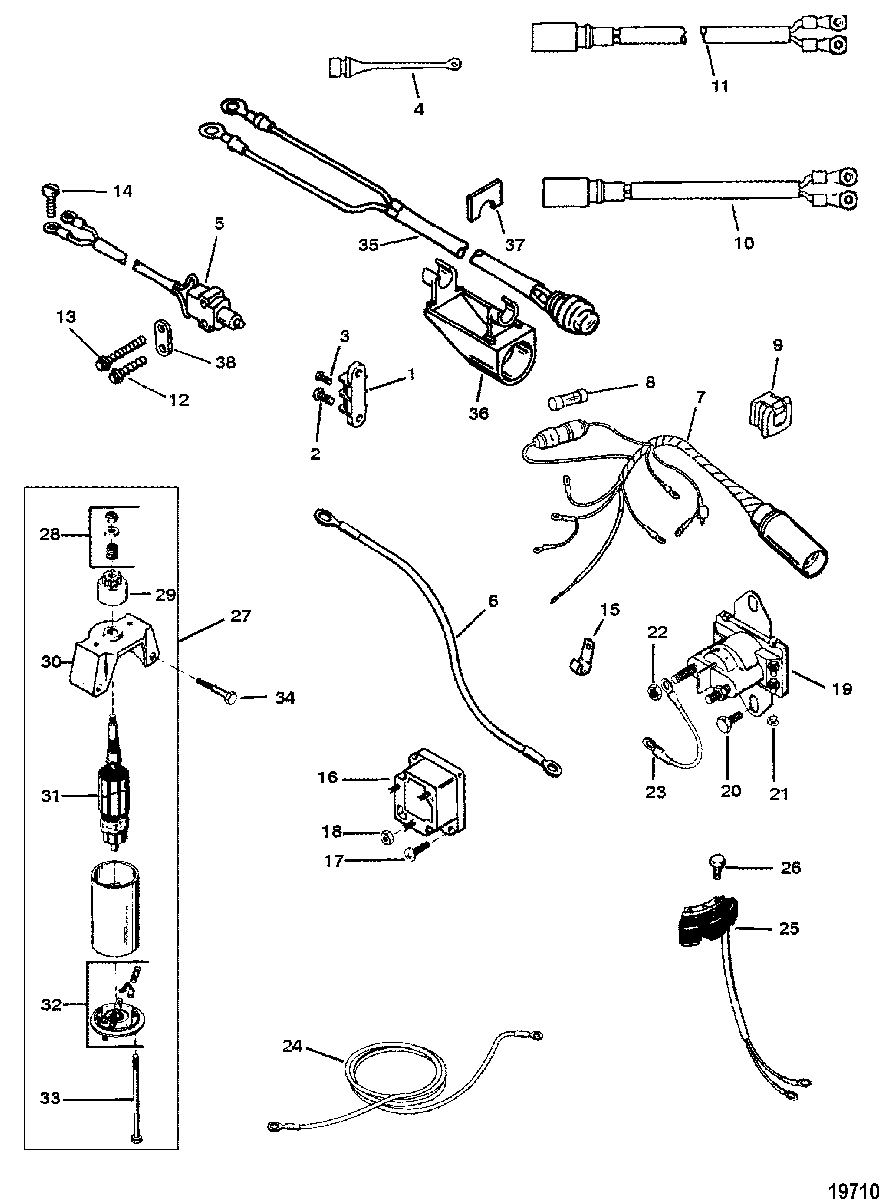

Electrical Components для Mariner - 9.9 0D281000 THRU 0G760299
-
№АртикулНазвание
-
186-638131 TERMINAL BLOCKTERMINAL BLOCK
-
210-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
310-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
471663 PLUGPLUG
-
587-813960A4 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
684-79139A20 CABLE ASSEMBLY (RED)CABLE ASSEMBLY (RED)
-
784-12334A2 HARNESS ASSEMBLY, Engine Wiring
(REMOTE CONTROL MODELS)HARNESS ASSEMBLY, Engine Wiring
(REMOTE CONTROL MODELS) -
888-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
912152 RETAINERRETAINER
-
1084-74725A2 HARNESS ASSEMBLY (20 IN. - BLACK/RED)HARNESS ASSEMBLY (20 IN. - BLACK/RED)
-
1184-65017A10 HARNESS ASSEMBLY, Battery End (62 IN. - BLACK/RED)HARNESS ASSEMBLY, Battery End (62 IN. - BLACK/RED)
-
1210-4001167 SCREW, (M3.5 x 16) Stainless Steel
(SIDE SHIFT)SCREW, (M3.5 x 16) Stainless Steel
(SIDE SHIFT) -
1310-88075020 SCREW, (M3.5 x 20) Stainless Steel
(TILLER HANDLE SHIFT)SCREW, (M3.5 x 20) Stainless Steel
(TILLER HANDLE SHIFT) -
1410-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1554-55098 J CLIPJ CLIP
-
168M0058226 RECTIFIERRECTIFIER
-
1710-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
1811-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1989-850189T SOLENOID, StarterSOLENOID, Starter
-
2010-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2111-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2211-64015 NUT, (.250-20)NUT, (.250-20)
-
2384-88809A5 WIRE ASSEMBLY (YELLOW)WIRE ASSEMBLY (YELLOW)
-
2484-88439A27 CABLE ASSEMBLY, Red - BatteryCABLE ASSEMBLY, Red - Battery
-
2484-88439A28 CABLE ASSEMBLY, Battery - BlackCABLE ASSEMBLY, Battery - Black
-
2586704A10 STATOR ASSEMBLYSTATOR ASSEMBLY
-
2610-4000123 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
2750-8M0033984 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2896561 DRIVE KITDRIVE KIT
-
2996562 DRIVEDRIVE
-
3096563T END CAPEND CAP
-
3196565 ARMATUREARMATURE
-
3296564T END CAPEND CAP
-
3310-96566 THRU BOLTTHRU BOLT
-
3410-421251 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
3587-823609A6 SWITCH ASSEMBLY, Start/StopSWITCH ASSEMBLY, Start/Stop
-
36889734 HOUSING, SwitchHOUSING, Switch
-
37824918 CLIPCLIP
-
38824923 PLATEPLATE
