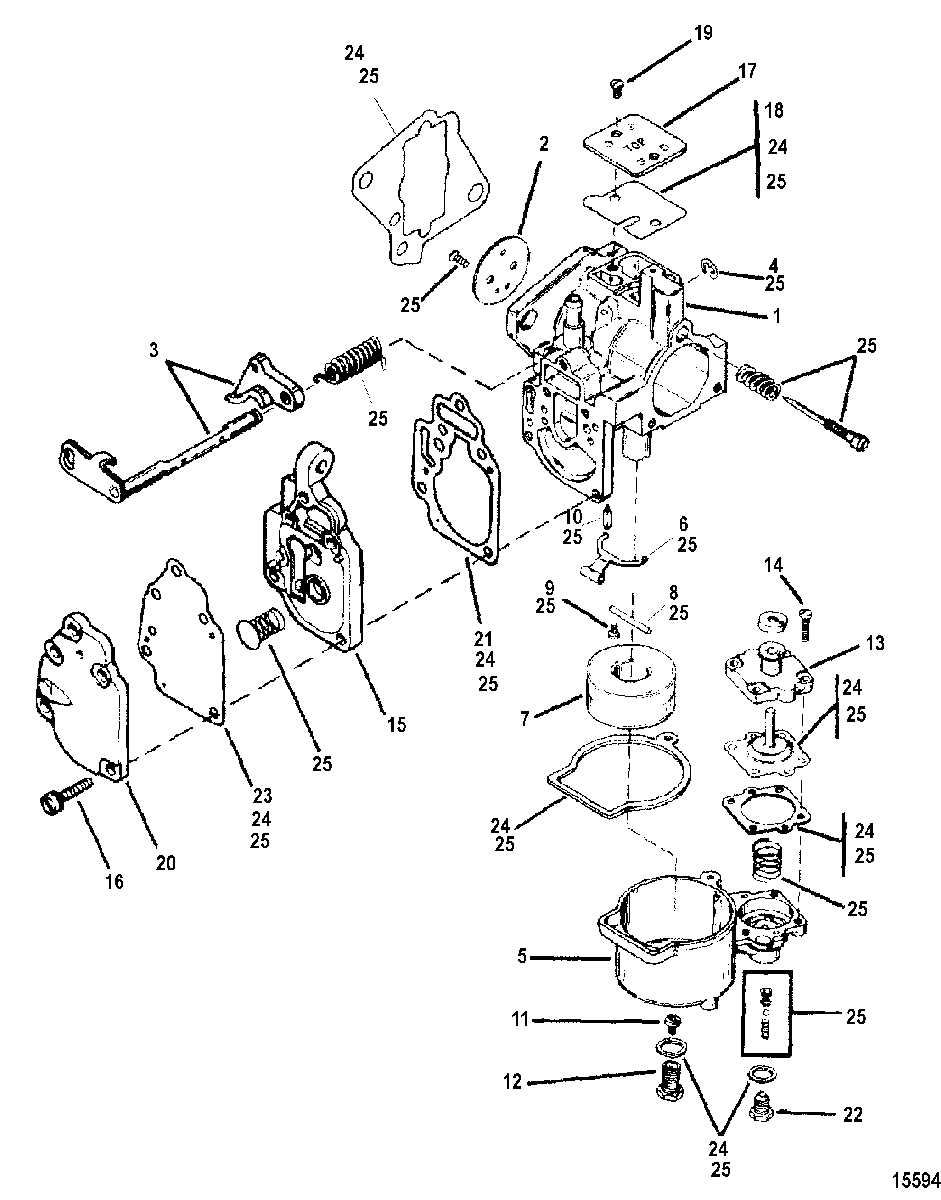

Carburetor Assembly для Mariner - 9.9 0T980000 THRU 0T999999
-
№АртикулНазвание
-
11392-9266T22 CARBURETOR (WMC-74)
(8)CARBURETOR (WMC-74)
(8) -
11392-9266T22 CARBURETOR (WMC-79A)
(8)CARBURETOR (WMC-79A)
(8) -
11392-8846T28 CARBURETOR (WMC-61)
(9.9)CARBURETOR (WMC-61)
(9.9) -
11392-8846T28 CARBURETOR, (WMC-80A)
(9.9)CARBURETOR, (WMC-80A)
(9.9) -
11392-8846T28 CARBURETOR, (WMC-102)
(9.9)CARBURETOR, (WMC-102)
(9.9) -
11392-9726T18 CARBURETOR, (WMC-77)
(15)CARBURETOR, (WMC-77)
(15) -
11392-9726T18 CARBURETOR, (WMC-83)
(15)CARBURETOR, (WMC-83)
(15) -
2815133 VALVE, Throttle
(8)VALVE, Throttle
(8) -
21395-94731 VALVE, Throttle
(9.9)VALVE, Throttle
(9.9) -
21395-823716 VALVE, Throttle
(15)VALVE, Throttle
(15) -
3813022 SHAFT, Throttle
(8/9.9)SHAFT, Throttle
(8/9.9) -
319267 SHAFT, Throttle
(15)SHAFT, Throttle
(15) -
453-F10167 RINGRING
-
51395-9164 BOWL, FuelBOWL, Fuel
-
61395-824401 LEVER, FloatLEVER, Float
-
71395-91691 FLOATFLOAT
-
8F10064 SHAFTSHAFT
-
91395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
101395-803861 VALVE, Inlet NeedleVALVE, Inlet Needle
-
111399-5317 JET, (.046)
(WMC-74)(WMC-79A)JET, (.046)
(WMC-74)(WMC-79A) -
111395-6246 JET, (.048)
(WMC-61)(WMC-80A)(WMC-102)JET, (.048)
(WMC-61)(WMC-80A)(WMC-102) -
111395-6207 JET, (.072)
(WMC-77)(WMC-83)JET, (.072)
(WMC-77)(WMC-83) -
121395-9171 PLUGPLUG
-
13813618 COVER
(8)COVER
(8) -
131395-823648 COVER, Diaphragm
(9.9/15)COVER, Diaphragm
(9.9/15) -
141395-9697 SCREWSCREW
-
151395-9702 BODYBODY
-
161395-9643 SCREWSCREW
-
171395-9699 PLATEPLATE
-
1827-44426 GASKETGASKET
-
191395-9696 SCREWSCREW
-
201395-9637 COVER
(8/9.9/15)COVER
(8/9.9/15) -
211395-9633 GASKETGASKET
-
221395-9762 PLUGPLUG
-
231395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
241395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
251395-8237072 REPAIR KITREPAIR KIT
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
