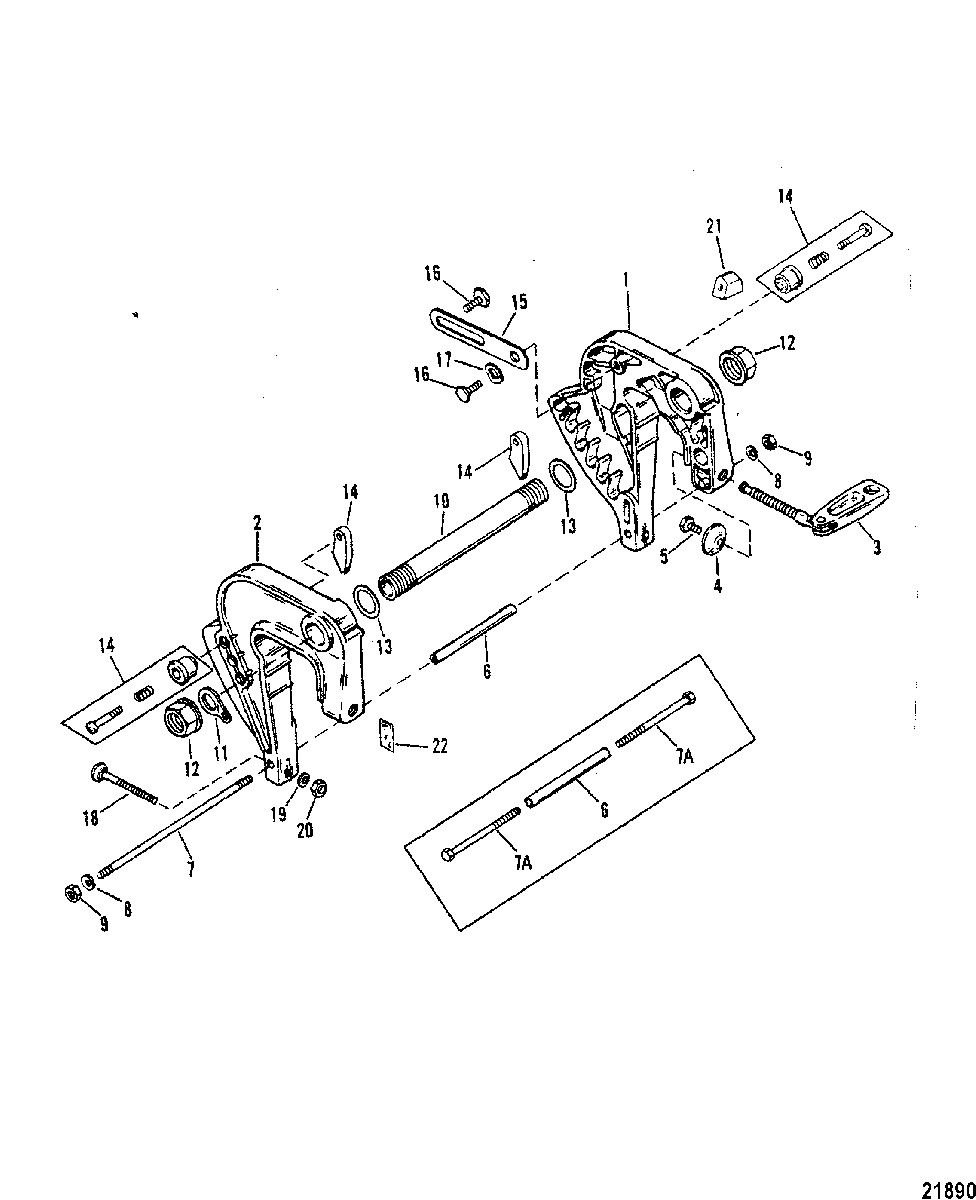

CLAMP BRACKET для Mariner - 9.9 9461526 THRU 9792199
-
№АртикулНазвание
-
13404-8894A11 CLAMP BRACKET ASSEMBLY (PORT) (BLACK)CLAMP BRACKET ASSEMBLY (PORT) (BLACK)
-
13404-8894A11 CLAMP BRACKET ASSEMBLY (PORT) (GRAY)CLAMP BRACKET ASSEMBLY (PORT) (GRAY)
-
23404-8894A11 CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)
-
23404-8894A11 CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)
-
310-92767A1 THUMB SCREW ASSEMBLY, (14 mm)THUMB SCREW ASSEMBLY, (14 mm)
-
310-92767A3 THUMB SCREW ASSEMBLY, (16 mm)THUMB SCREW ASSEMBLY, (16 mm)
-
412-818884 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
510-768042 SCREW, WASHER ATTACHINGSCREW, WASHER ATTACHING
-
623-43431 SPACER, CLAMP BRACKET STUD
(STUD ASSEMBLY)SPACER, CLAMP BRACKET STUD
(STUD ASSEMBLY) -
623-8M0084719 SPACER
(SCREW ASSEMBLY)SPACER
(SCREW ASSEMBLY) -
716-42129 STUD, CLAMP BRACKET
(STUD ASSEMBLY)STUD, CLAMP BRACKET
(STUD ASSEMBLY) -
7A10-4000333 SCREW, (M6 x 40)
(SCREW ASSEMBLY)SCREW, (M6 x 40)
(SCREW ASSEMBLY) -
813-400256 LOCKWASHER, (M6), CLAMP BRACKET STUD
(STUD ASSEMBLY)LOCKWASHER, (M6), CLAMP BRACKET STUD
(STUD ASSEMBLY) -
911-400212 NUT, (M6) Stainless Steel, CLAMP BRACKET STUD
(STUD ASSEMBLY)NUT, (M6) Stainless Steel, CLAMP BRACKET STUD
(STUD ASSEMBLY) -
1042078 TILT TUBE
(NOTE: USE 30664 ON ELECTRIC LONG W/REMOTE CONTROL.)TILT TUBE
(NOTE: USE 30664 ON ELECTRIC LONG W/REMOTE CONTROL.) -
1154-8M0085928 CLIP, SAFETYCLIP, SAFETY
-
1211-93164 NUT, (.875), TILT TUBENUT, (.875), TILT TUBE
-
1312-71421 WASHER, Nylon, TILT TUBEWASHER, Nylon, TILT TUBE
-
1442390A1 LEVER ASSEMBLY, Tilt ReturnLEVER ASSEMBLY, Tilt Return
-
1590901 STRAP, TILT STOP - PORT SIDESTRAP, TILT STOP - PORT SIDE
-
1610-42498 SCREW, (M6 x 1.0), STRAP TO CLAMP BRACKETSCREW, (M6 x 1.0), STRAP TO CLAMP BRACKET
-
1713-31030 WAVE WASHER, TILT STOP STRAT SCREWWAVE WASHER, TILT STOP STRAT SCREW
-
1810-43216 BOLT, (.250-20 x 3.50), CLAMP TO TRANSOMBOLT, (.250-20 x 3.50), CLAMP TO TRANSOM
-
1912-67983 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
21814427 SHUTTLE, TILT LOCK (NEW DESIGN)SHUTTLE, TILT LOCK (NEW DESIGN)
-
2237-12869 DECAL, Tilt PositionDECAL, Tilt Position
