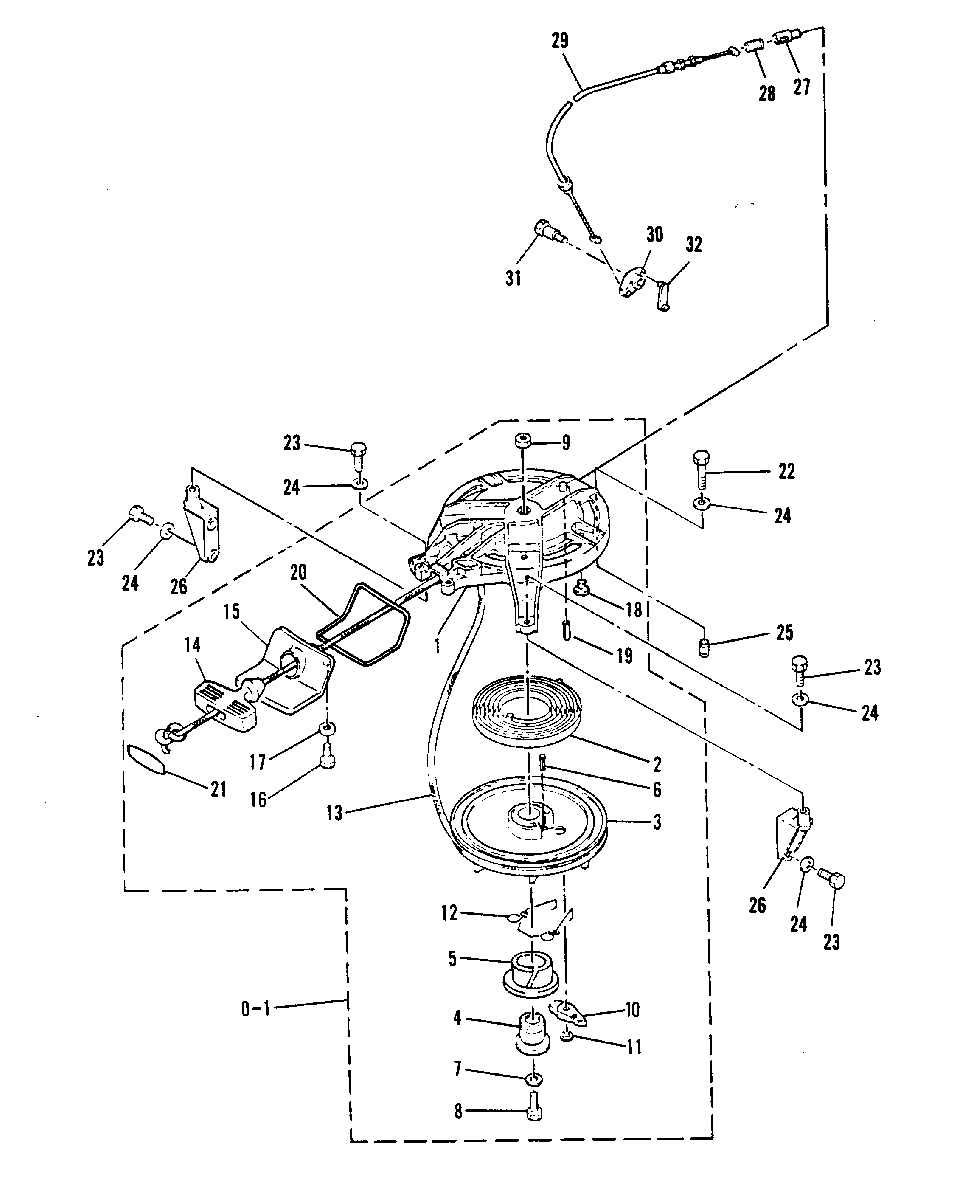

RECOIL STARTER для Mariner - 9.9C 682-032886 AND UP
-
№АртикулНазвание
-
0-1NLA STARTER (SEE NOTE #3)STARTER (SEE NOTE #3)
-
0-12169-9348M STARTER (SEE NOTE #4)STARTER (SEE NOTE #4)
-
12169-8398M STARTER HOUSINGSTARTER HOUSING
-
224-82115M SPRING (SEE NOTE #1)SPRING (SEE NOTE #1)
-
224-95588M SPRING (SEE NOTE #2)SPRING (SEE NOTE #2)
-
350-83250M STARTER SHEAVESTARTER SHEAVE
-
483251M SHAFT (SEE NOTE #1 - BRASS)SHAFT (SEE NOTE #1 - BRASS)
-
495590M SHAFT (SEE NOTE #2 - NYLON W/BRASS INSERT)SHAFT (SEE NOTE #2 - NYLON W/BRASS INSERT)
-
523-82687M BUSHINGBUSHING
-
617-82157M ROLL PINROLL PIN
-
712-81557M WASHERWASHER
-
810-84058M BOLTBOLT
-
911-82389M NUTNUT
-
1083252M DRIVE PAWLDRIVE PAWL
-
1153-84895M SNAP RINGSNAP RING
-
1224-83947M SPRING (SEE NOTE #1)SPRING (SEE NOTE #1)
-
1224-95589M SPRING (SEE NOTE #2)SPRING (SEE NOTE #2)
-
1350-12066Q10 STARTER ROPESTARTER ROPE
-
14814491A1 HANDLEHANDLE
-
1584318M GUIDE (SEE NOTE #3)GUIDE (SEE NOTE #3)
-
1541265M GUIDE (SEE NOTE #4)GUIDE (SEE NOTE #4)
-
1610-826957M BOLTBOLT
-
1712-82214M WASHERWASHER
-
1819-80604M PLUGPLUG
-
1917-82155M PINPIN
-
2083982M SEALSEAL
-
21814491A1 COVERCOVER
-
2210-83285M BOLTBOLT
-
2310-84058M BOLTBOLT
-
2412-82214M WASHERWASHER
-
2517-14214M DOWEL PINDOWEL PIN
-
2696599M BRACKET (SEE NOTE #3)BRACKET (SEE NOTE #3)
-
2641266M BRACKET (SEE NOTE #4)BRACKET (SEE NOTE #4)
-
2781106M PLUNGERPLUNGER
-
2824-82079M SPRINGSPRING
-
2984117M LOCKOUT WIRE ASSEMBLYLOCKOUT WIRE ASSEMBLY
-
3084115M ARMARM
-
3110-94544M BOLTBOLT
-
3284116M LINKLINK
