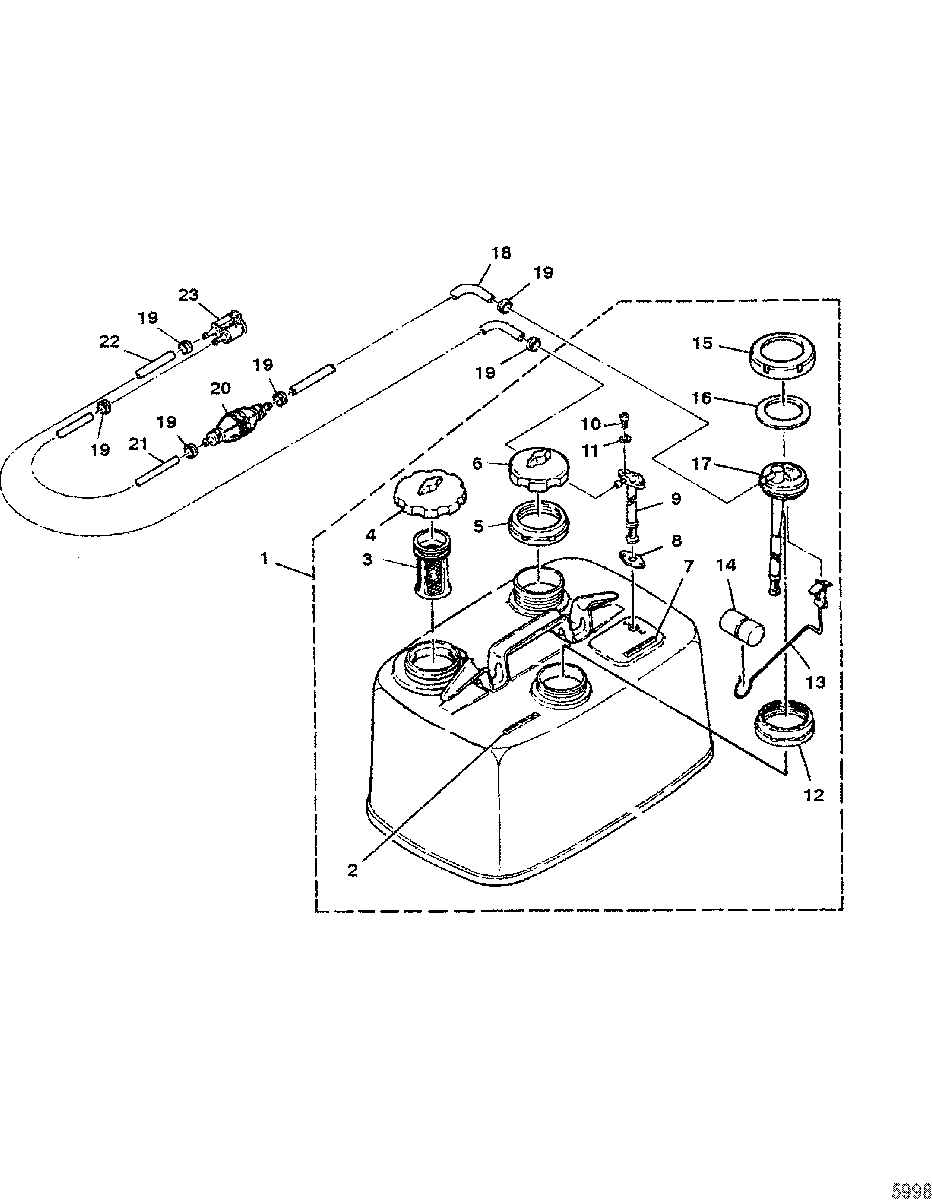

Fuel Tank/Fuel Line(S/N:M-001189/ML-304031 & Above) для Mariner - K 40 H.P. 6F5-301827 & Up
-
№АртикулНазвание
-
11252-9522M TANK ASSEMBLY, FuelTANK ASSEMBLY, Fuel
-
2NSS NOT SOLD SEPARATE, Decal-TopNOT SOLD SEPARATE, Decal-Top
-
335-95568M STRAINERSTRAINER
-
436-814497M CAPCAP
-
5NSS NOT SOLD SEPARATE, NutNOT SOLD SEPARATE, Nut
-
636-814498M CAPCAP
-
7NSS NOT SOLD SEPARATE, Decal-TopNOT SOLD SEPARATE, Decal-Top
-
8NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
999954M HOUSING, ConnectorHOUSING, Connector
-
1010-95502M SCREWSCREW
-
1112-95501M SEALSEAL
-
12NSS NOT SOLD SEPARATE, NutNOT SOLD SEPARATE, Nut
-
1314274M INDICTORINDICTOR
-
1481319M FLOATFLOAT
-
1597624M SUPPORTSUPPORT
-
1627-97623M GASKETGASKET
-
1795616M METER, FuelMETER, Fuel
-
1832-94727M HOSEHOSE
-
1954-16725M CLAMPCLAMP
-
2089396Q01 PRIMER BULBPRIMER BULB
-
2132-94727M HOSEHOSE
-
2232-16571M HOSEHOSE
-
2395569M CONNECTOR, FuelCONNECTOR, Fuel
