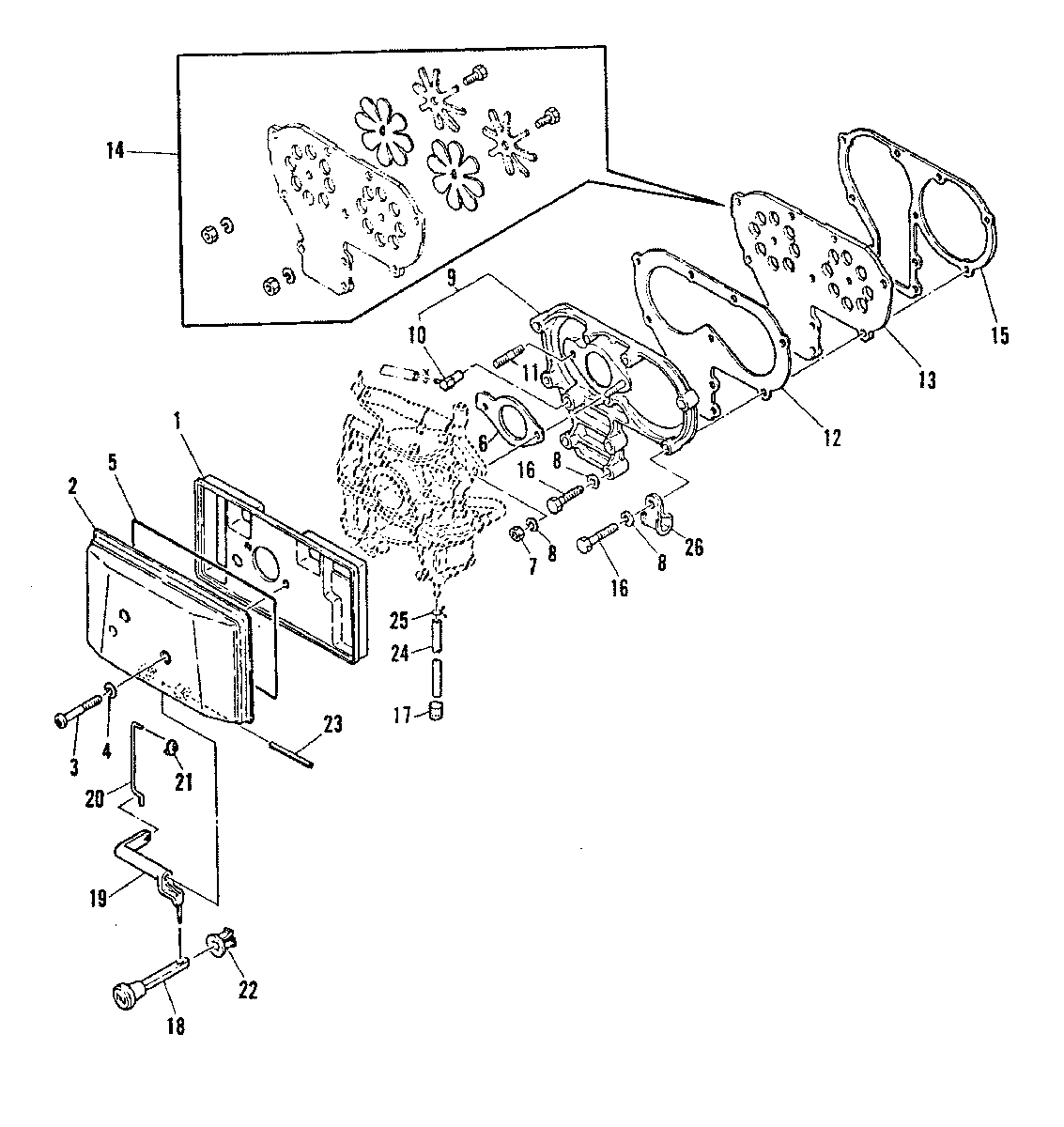

INTAKE MANIFOLD для Mariner - K25 6A4-300101 AND UP (ML)
-
№АртикулНазвание
-
195571M COVER (INNER)COVER (INNER)
-
297565M COVER (OUTER)COVER (OUTER)
-
310-82522M SCREWSCREW
-
412-82211M WASHERWASHER
-
525-95558M SEALSEAL
-
627-80572 GASKETGASKET
-
711-82389M NUTNUT
-
812-82214M WASHERWASHER
-
997566M INTAKE MANIFOLDINTAKE MANIFOLD
-
1021-80727M CHECK VALVECHECK VALVE
-
1116-811028M STUD (M-001613 ML-311139 AND UP0)STUD (M-001613 ML-311139 AND UP0)
-
1116-91735M STUD (M-001612 ML-311138 AND BELOW)STUD (M-001612 ML-311138 AND BELOW)
-
1227-97567M GASKETGASKET
-
1334-97568M REED VALVE ASSEMBLYREED VALVE ASSEMBLY
-
1434-94639M REED SETREED SET
-
1527-97569M GASKETGASKET
-
1610-83285M BOLTBOLT
-
1783323M CAP (M-001182-001285 ML-307013-308338)CAP (M-001182-001285 ML-307013-308338)
-
1883960M CHOKE KNOBCHOKE KNOB
-
1997570M CHOKE LEVERCHOKE LEVER
-
2097571M CHOKE RODCHOKE ROD
-
2116333 RETAINERRETAINER
-
2225-84760M GROMMETGROMMET
-
2317-82157M PINPIN
-
2432-82012M HOSE M-001181 ML-307012 AND BELOWHOSE M-001181 ML-307012 AND BELOW
-
2554-82047M CLIPCLIP
-
2654-96348M CLAMPCLAMP
