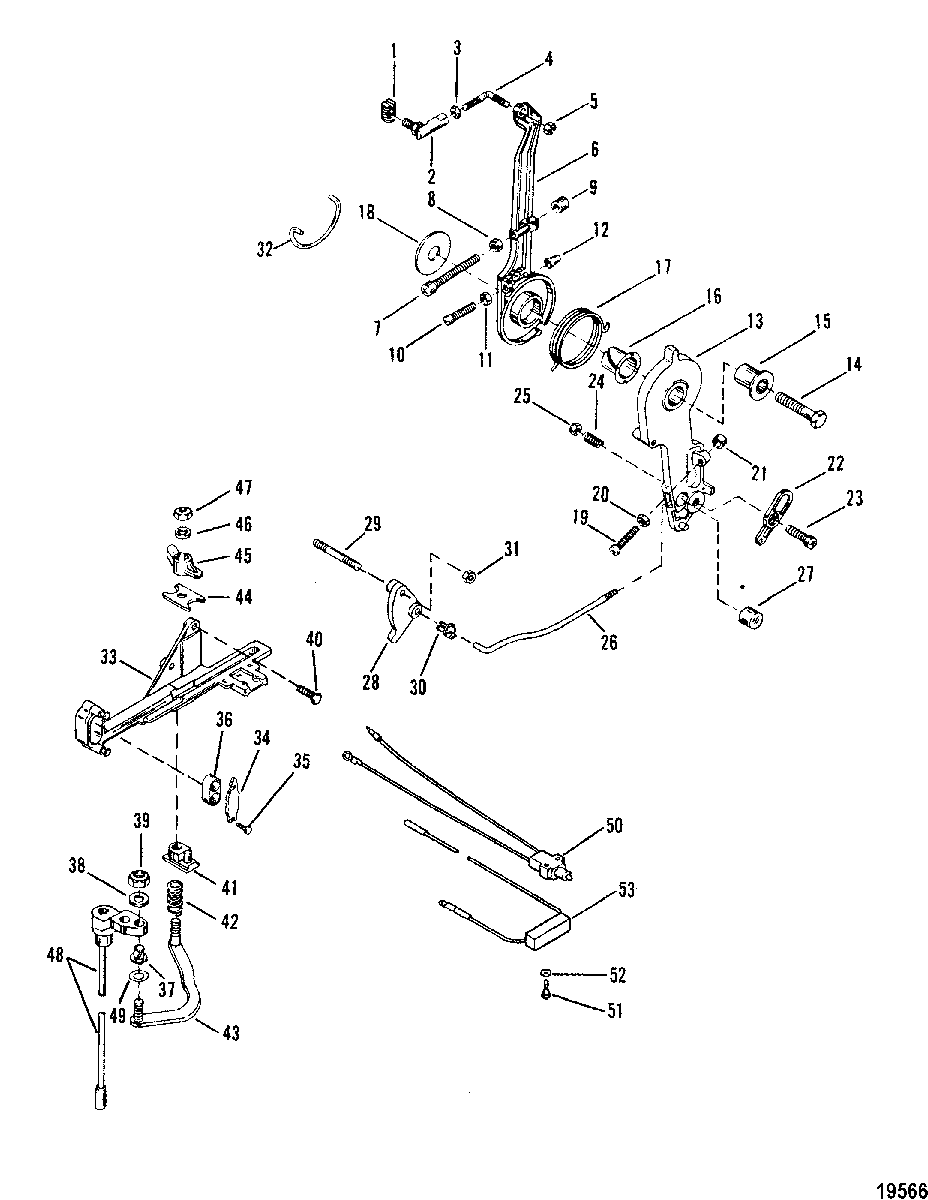

Throttle Lever and Shift Shaft для Mariner - MAGNUM II 0C239553 THRU 0D081999
-
№АртикулНазвание
-
174897T PIVOT, TRIGGER PLATEPIVOT, TRIGGER PLATE
-
262459T BALL JOINT ASSEMBLY, TRIGGER PLATEBALL JOINT ASSEMBLY, TRIGGER PLATE
-
311-45076 NUT, (#10-32), LINK RODNUT, (#10-32), LINK ROD
-
476035 ROD, TRIGGER PLATEROD, TRIGGER PLATE
-
511-46438 NUT, (#10-32), BALL JOINTNUT, (#10-32), BALL JOINT
-
641094A3 LEVER ASSEMBLY, SPARK ADVANCELEVER ASSEMBLY, SPARK ADVANCE
-
710-64022 SCREW, (.250-20 x 2.125), SPARK ADVANCE LEVERSCREW, (.250-20 x 2.125), SPARK ADVANCE LEVER
-
811-64015 NUT, ( #8-32)NUT, ( #8-32)
-
926852 CAP, SPARK ADVANCE LEVER STOP SCREWCAP, SPARK ADVANCE LEVER STOP SCREW
-
1010-69560 SCREW, (.190-32 X 1.25)SCREW, (.190-32 X 1.25)
-
1111-68219 NUT, (#10-32), SPARK ADVANCE LEVER STOP SCREWNUT, (#10-32), SPARK ADVANCE LEVER STOP SCREW
-
1248039 CAP, SPARK ADVANCE LEVER STOP SCREWCAP, SPARK ADVANCE LEVER STOP SCREW
-
13410952 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1410-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
1523-55164 BUSHING, THROTTLE LEVERBUSHING, THROTTLE LEVER
-
1623-55171 BUSHING, SPARK ADVANCE LEVERBUSHING, SPARK ADVANCE LEVER
-
1724-55162 SPRING, THROTTLE AND SPARK ADVANCE LEVERSPRING, THROTTLE AND SPARK ADVANCE LEVER
-
1812-46765 WASHER, SPARK ADVANCE LEVERWASHER, SPARK ADVANCE LEVER
-
1910-64022 SCREW, (.250-20 x 2.125), THROTTLE LEVER - STOPSCREW, (.250-20 x 2.125), THROTTLE LEVER - STOP
-
2011-64015 NUT, ( #8-32), THROTTLE LEVER STOP SCREWNUT, ( #8-32), THROTTLE LEVER STOP SCREW
-
2126852 CAP, THROTTLE LEVER STOP SCREWCAP, THROTTLE LEVER STOP SCREW
-
2239483 LATCH, CABLELATCH, CABLE
-
2310-69026 SCREW, (.250-28 x .88), CABLE LATCH TO THROTTLE LEVERSCREW, (.250-28 x .88), CABLE LATCH TO THROTTLE LEVER
-
2424-20099 SPRING, CABLE LATCH TO THROTTLE LEVERSPRING, CABLE LATCH TO THROTTLE LEVER
-
2511-826709109 NUT, (.250-28), CABLE LATCH SCREWNUT, (.250-28), CABLE LATCH SCREW
-
26814929 ROD, THROTTLE CONTROLROD, THROTTLE CONTROL
-
2714638 BARREL, THROTTLE CONTROL RODBARREL, THROTTLE CONTROL ROD
-
28815539T THROTTLE CAMTHROTTLE CAM
-
2916-20353 STUD, (.250-28 x 1.750), THROTTLE CAM ATTACHINGSTUD, (.250-28 x 1.750), THROTTLE CAM ATTACHING
-
3023-932481 BUSHINGBUSHING
-
3111-826709109 NUT, (.250-28), THROTTLE CAM STUDNUT, (.250-28), THROTTLE CAM STUD
-
3224-41050 SPRING, THROTTLE RETURN (OLD DESIGN)SPRING, THROTTLE RETURN (OLD DESIGN)
-
33814283A2 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
3498889 LATCH, CONTROL CABLELATCH, CONTROL CABLE
-
3510-42975 SCREW, Drive, LATCHSCREW, Drive, LATCH
-
3639519 CUP, BARREL RETAINERCUP, BARREL RETAINER
-
3723-26600 BUSHING, NYLON - LINK RODBUSHING, NYLON - LINK ROD
-
3812-35462 WASHER, (.2656 x .625 x .0625) , LINK RODWASHER, (.2656 x .625 x .0625) , LINK ROD
-
3911-826709109 NUT, (.250-28), LINK ROD TO SHIFT SHAFTNUT, (.250-28), LINK ROD TO SHIFT SHAFT
-
4010-53167T SCREW, (.312-18 x .880), ANCHOR BRACKETSCREW, (.312-18 x .880), ANCHOR BRACKET
-
41814284 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
4224-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
4367073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
4452100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
458M0036768 LATCHLATCH
-
4612-35462 WASHER, (.2656 x .625 x .0625) , LATCHWASHER, (.2656 x .625 x .0625) , LATCH
-
4711-826709109 NUT, (.250-28), LINK RODNUT, (.250-28), LINK ROD
-
4879932A16 SHIFT SHAFT ASSEMBLY (LONG)SHIFT SHAFT ASSEMBLY (LONG)
-
4879932A17 SHIFT SHAFT ASSEMBLY (X-LONG)SHIFT SHAFT ASSEMBLY (X-LONG)
-
4913-29720 WAVE WASHER, LINK RODWAVE WASHER, LINK ROD
-
5087-814281A1 IDLE STABILIZING SHIFT KITIDLE STABILIZING SHIFT KIT
-
5110-77478 SCREW, (#6-32 x .875)SCREW, (#6-32 x .875)
-
5212-27882 WASHERWASHER
-
5317461A3 RESISTOR MODULERESISTOR MODULE
