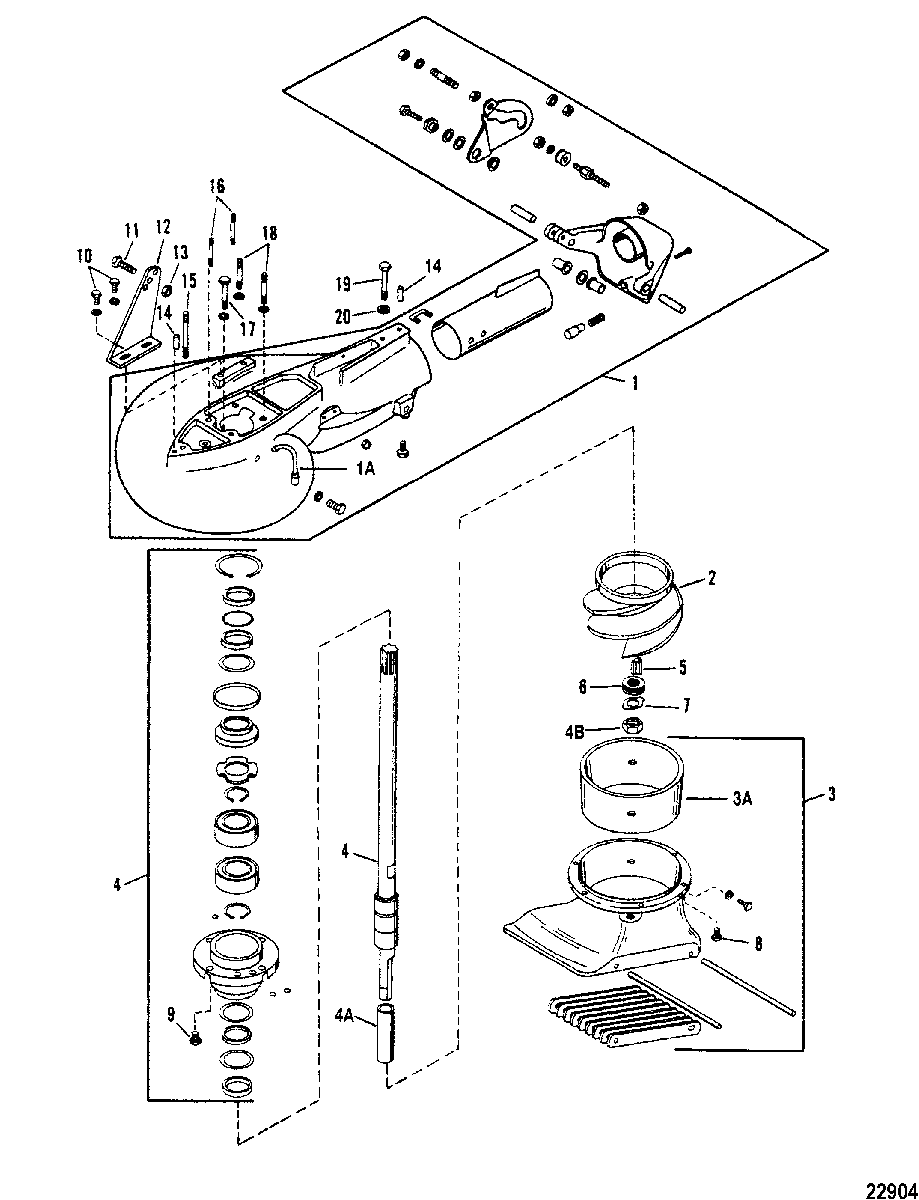

JET PUMP ASSEMBLY для Mariner - MAGNUM III 0D082000 THRU 0G303045
-
№АртикулНазвание
-
-855766150 JET PUMP (BLACK)JET PUMP (BLACK)
-
-855766150 JET PUMP (GRAY)JET PUMP (GRAY)
-
1801411150 HOUSING, PumpHOUSING, Pump
-
1A32-827490 HOSE, LubeHOSE, Lube
-
247-803984T IMPELLERIMPELLER
-
380141290 HOUSING, IntakeHOUSING, Intake
-
3A8271883 LINERLINER
-
445-801413150 SHAFT, DriveSHAFT, Drive
-
4A23-8271891 SLEEVESLEEVE
-
4B11-8271901 NUTNUT
-
528-801405875 KEYKEY
-
615-801404875 SHIM, ImpellerSHIM, Impeller
-
714-801403875 TAB WASHERTAB WASHER
-
810-812618 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
910-19923088 SCREW, (.250-20 x .875)SCREW, (.250-20 x .875)
-
1010-19923062 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1110-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
12801410 BRACKET, Cable SupportBRACKET, Cable Support
-
1311-82670910 NUT, (.312-18)NUT, (.312-18)
-
1417-801407 PIN, DowelPIN, Dowel
-
1516-786382 STUD, (.438 x 3.12)STUD, (.438 x 3.12)
-
1616-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
1710-69064 BOLT, (.312-18 x 2.750)BOLT, (.312-18 x 2.750)
-
1816-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
1910-68299 SCREW, (.375-16 x 3.00) Stainless SteelSCREW, (.375-16 x 3.00) Stainless Steel
-
2012-856774 WASHER, (.406 x .750 x .104)WASHER, (.406 x .750 x .104)
