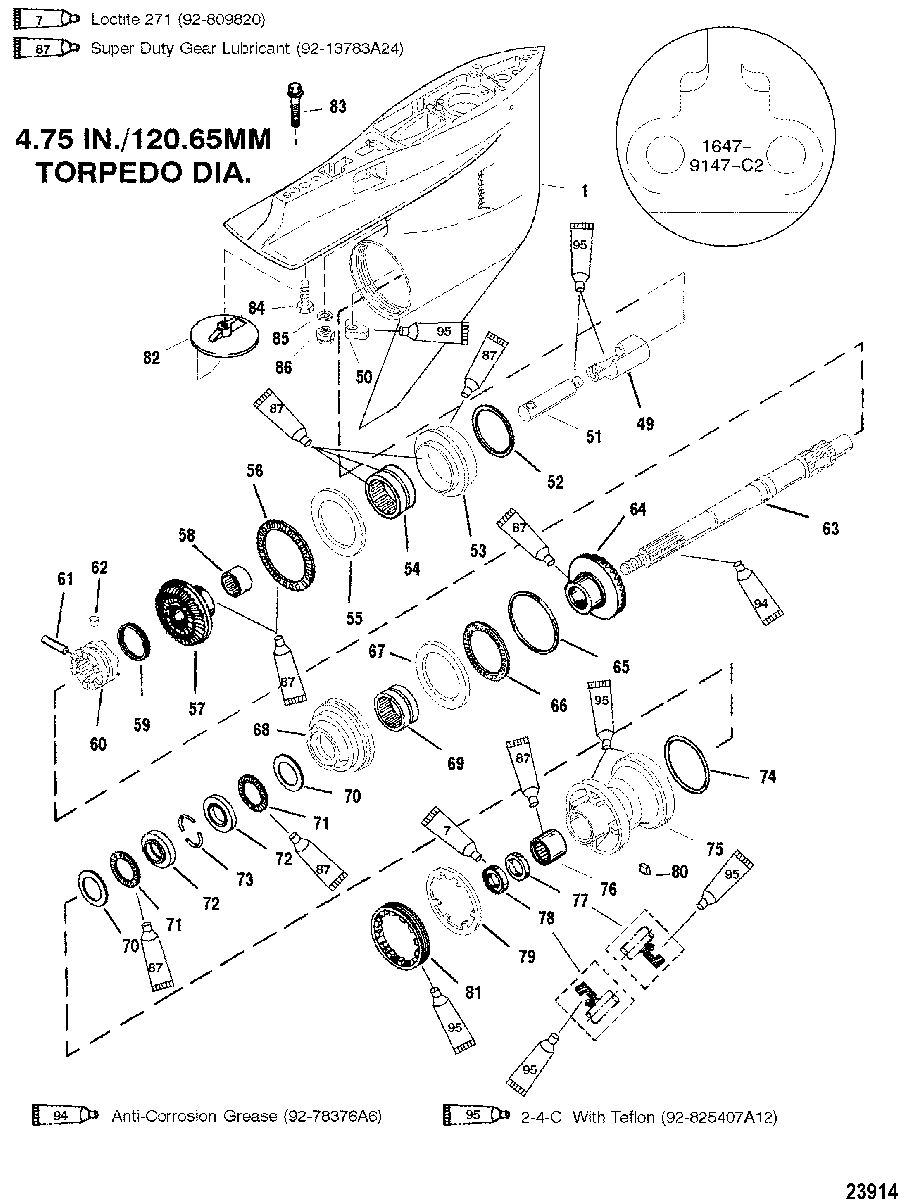

GEAR HOUSING(PROP SHAFT)(COUNTER ROTATION) для Mariner - MAGNUM III 0G760300 THRU 0G960499
-
№АртикулНазвание
-
11647-9148T93 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
4989594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
50789562 SHIFT CAMSHIFT CAM
-
51828287 RODROD
-
5215-8M0063266 SHIM SETSHIM SET
-
53828830A2 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
5431-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
5512-815481 THRUST WASHERTHRUST WASHER
-
5631-815480 BEARING, ThrustBEARING, Thrust
-
5743-828704A2 GEAR ASSEMBLY, Reverse - 14/28
(135)(2.0:1)GEAR ASSEMBLY, Reverse - 14/28
(135)(2.0:1) -
5743-828702A2 GEAR ASSEMBLY, Reverse - 15/28
(150/175/200)(1.87:1)GEAR ASSEMBLY, Reverse - 15/28
(150/175/200)(1.87:1) -
5831-15844 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
5924-30893 SPRINGSPRING
-
6052-859340T CLUTCH, SlidingCLUTCH, Sliding
-
6117-8M0100263 PIN, CrossPIN, Cross
-
6217-828356 PIN, DetentPIN, Detent
-
6344-828951 PROPELLER SHAFTPROPELLER SHAFT
-
6443-828703A1 GEAR ASSEMBLY, Forward - 14/28
(135)(2.0:1)GEAR ASSEMBLY, Forward - 14/28
(135)(2.0:1) -
6443-828701A1 GEAR ASSEMBLY, Forward - 15/28
(150/175/200)(1.87:1)GEAR ASSEMBLY, Forward - 15/28
(150/175/200)(1.87:1) -
6523-1761514 SPACER SHIM , (.206)SPACER SHIM , (.206)
-
6523-1761515 SPACER SHIM , (.208)SPACER SHIM , (.208)
-
6523-1761516 SPACER SHIM, (.210)SPACER SHIM, (.210)
-
6523-1761517 SPACER SHIM, (.212)SPACER SHIM, (.212)
-
6523-1761518 SPACER SHIM, (.214)SPACER SHIM, (.214)
-
6523-1761519 SPACER SHIM, (.216)SPACER SHIM, (.216)
-
6523-1761520 SPACER SHIM, (.218)SPACER SHIM, (.218)
-
6523-1761521 SPACER SHIM, (.220)SPACER SHIM, (.220)
-
6523-1761522 SPACER SHIM, (.222)SPACER SHIM, (.222)
-
6523-1761523 SPACER SHIM, (.224)SPACER SHIM, (.224)
-
6523-1761524 SPACER SHIM, (.226)SPACER SHIM, (.226)
-
6523-1761525 SPACER SHIM, (.228)SPACER SHIM, (.228)
-
6523-1761526 SPACER SHIM, (.230)SPACER SHIM, (.230)
-
6631-815480 BEARING, ThrustBEARING, Thrust
-
6712-815481 THRUST WASHERTHRUST WASHER
-
68828831A3 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
6931-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
7012-18448 THRUST WASHERTHRUST WASHER
-
7131-15842 BEARING, ThrustBEARING, Thrust
-
728182911 RACE, ThrustRACE, Thrust
-
73814605 KEEPERKEEPER
-
7425-31534 O-RINGO-RING
-
75818290A4 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
7631-30956T BEARING, NeedleBEARING, Needle
-
7726-14077 SEAL, Oil (INSIDE)SEAL, Oil (INSIDE)
-
7826-76868 SEAL (OUTSIDE)SEAL (OUTSIDE)
-
7914-183231 TAB WASHERTAB WASHER
-
8028-30281 KEYKEY
-
818M2000347 RETAINERRETAINER
-
8231640T07 TRIM TABTRIM TAB
-
8297-76214Q5 ANODE KIT
(TRACKER/XR6/MAG III/175 /200 LONG)ANODE KIT
(TRACKER/XR6/MAG III/175 /200 LONG) -
8310-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
8410-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
8512-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
8611-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
-26-89238A2 SEAL KITSEAL KIT
