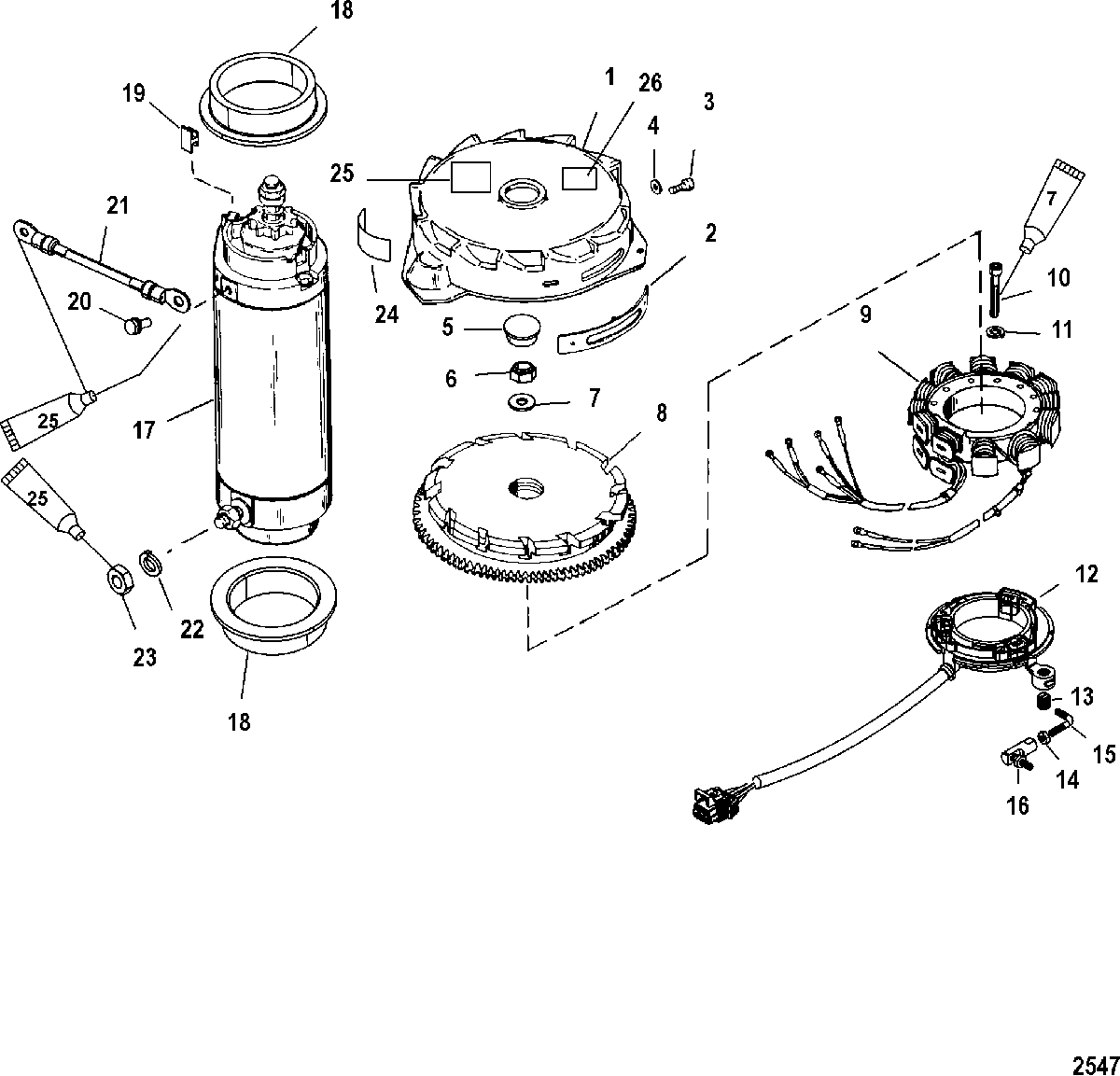

Flywheel/Starter Motor для Mariner - MAGNUM III 0G960500 THRU 1B226999
-
№АртикулНазвание
-
118896A1 COVER KITCOVER KIT
-
279022 MARKERMARKER
-
310-37572 SCREW, (.190-32 x .380)SCREW, (.190-32 x .380)
-
412-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
519-45907 PLUG, YellowPLUG, Yellow
-
611-52901 NUT, (.625-18)NUT, (.625-18)
-
712-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
8271-859238T17 FLYWHEEL ASSEMBLY
SN# 0T800999 & BelowFLYWHEEL ASSEMBLY
SN# 0T800999 & Below -
8271-859238T17 FLYWHEEL
SN# 0T801000 & UpFLYWHEEL
SN# 0T801000 & Up -
9398-858404T4 STATOR
SN# 0T599000 & UpSTATOR
SN# 0T599000 & Up -
9398-858404T4 STATOR ASSEMBLY
SN# 0T598999 & BelowSTATOR ASSEMBLY
SN# 0T598999 & Below -
1010-90045 SCREW, (#10-32 x 1.375)SCREW, (#10-32 x 1.375)
-
1113-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1296455T18 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
1374897T PIVOTPIVOT
-
1411-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1576035 RODROD
-
1662459T BALL JOINT ASSEMBLYBALL JOINT ASSEMBLY
-
1750-893893 STARTER MOTOR ASSEMBLY
SN# 0T469023 & UpSTARTER MOTOR ASSEMBLY
SN# 0T469023 & Up -
1750-893893 STARTER MOTOR ASSEMBLY
SN# 0T409000 THRU 0T469022STARTER MOTOR ASSEMBLY
SN# 0T409000 THRU 0T469022 -
1750-893893 STARTER MOTOR ASSEMBLY
SN# 0T408999 & BelowSTARTER MOTOR ASSEMBLY
SN# 0T408999 & Below -
1823-8M0034918 COLLARCOLLAR
-
198M0043376 STOP, Rubber, RubberSTOP, Rubber, Rubber
-
2010-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
2184-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
2213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2311-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
24NSS NOT SOLD SEPARATE, Decal-In-Gear IdleNOT SOLD SEPARATE, Decal-In-Gear Idle
-
2537-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
2637-881865 DECAL, Caution-Start in Gear
(Start In Gear)DECAL, Caution-Start in Gear
(Start In Gear)
