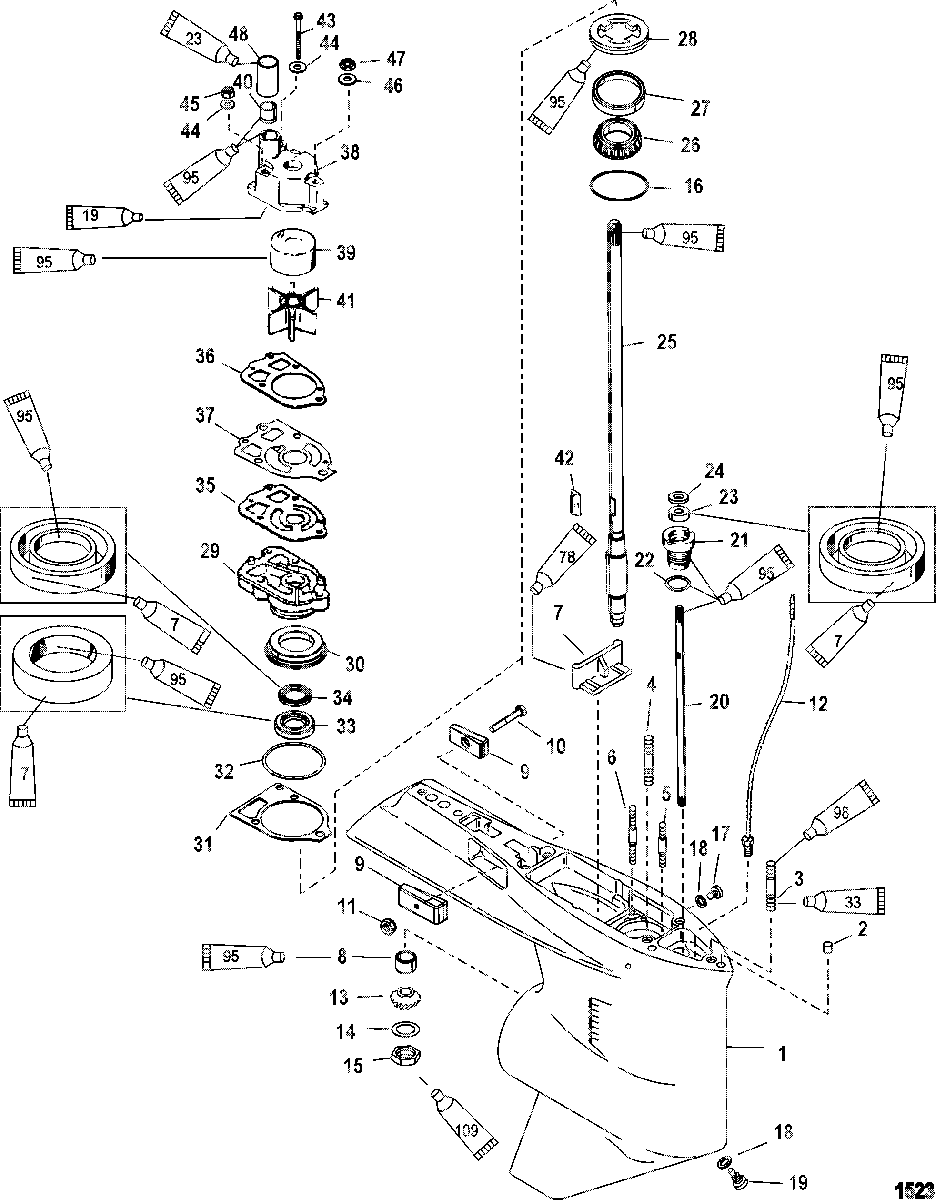

Gear Housing(Driveshaft)(Standard/Counter Rotation) для Mariner - V-135 DFI (2.5L) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
-1647-9148T84 GEAR HOUSING ASSEMBLY (Complete)
(Black-Long-Standard-1.87:1)GEAR HOUSING ASSEMBLY (Complete)
(Black-Long-Standard-1.87:1) -
-1647-9148T84 GEAR HOUSING ASSEMBLY (Complete)
(Gray-Long-Standard-1.87:1)GEAR HOUSING ASSEMBLY (Complete)
(Gray-Long-Standard-1.87:1) -
-1647-9148T85 GEAR HOUSING ASSEMBLY (Complete)
(Black X-Long-Standard-1.87:1)GEAR HOUSING ASSEMBLY (Complete)
(Black X-Long-Standard-1.87:1) -
-1647-9148T85 GEAR HOUSING ASSEMBLY (Complete)
(Gray X-Long-Standard-1.87:1)GEAR HOUSING ASSEMBLY (Complete)
(Gray X-Long-Standard-1.87:1) -
-1647-9148T81 GEAR HOUSING ASSEMBLY (Complete)
(Black-Long-Standard-2:1)GEAR HOUSING ASSEMBLY (Complete)
(Black-Long-Standard-2:1) -
-1647-9148T81 GEAR HOUSING ASSEMBLY (Complete)
(Gray-Long-Standard-2:1)GEAR HOUSING ASSEMBLY (Complete)
(Gray-Long-Standard-2:1) -
-1647-9148T82 GEAR HOUSING ASSEMBLY (Complete)
(Black-X-Long-Standard-2:1)GEAR HOUSING ASSEMBLY (Complete)
(Black-X-Long-Standard-2:1) -
-1647-9148T82 GEAR HOUSING ASSEMBLY (Complete)
(Gray-X-Long-Standard-2:1)GEAR HOUSING ASSEMBLY (Complete)
(Gray-X-Long-Standard-2:1) -
-1647-9148T86 GEAR HOUSING ASSEMBLY (Complete)
(Black-X-Long-Counter Rotation-1.87:1)GEAR HOUSING ASSEMBLY (Complete)
(Black-X-Long-Counter Rotation-1.87:1) -
-1647-9148T86 GEAR HOUSING ASSEMBLY (Complete)
(Gray-X-Long-Counter Rotation-1.87:1)GEAR HOUSING ASSEMBLY (Complete)
(Gray-X-Long-Counter Rotation-1.87:1) -
-1647-9148T83 GEAR HOUSING ASSEMBLY (Complete)
(Black-X-Long-Counter Rotation-2:1)GEAR HOUSING ASSEMBLY (Complete)
(Black-X-Long-Counter Rotation-2:1) -
-1647-9148T89 GEAR HOUSING ASSEMBLY (Complete)
(Gray-X-Long-Counter Rotation-2:1)GEAR HOUSING ASSEMBLY (Complete)
(Gray-X-Long-Counter Rotation-2:1) -
11647-9148T93 GEAR HOUSING ASSEMBLY
(Black-Basic)GEAR HOUSING ASSEMBLY
(Black-Basic) -
11647-9148T93 GEAR HOUSING ASSEMBLY
(Gray-Basic)GEAR HOUSING ASSEMBLY
(Gray-Basic) -
217-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
316-786382 STUD, (.437-14/.437-20 x 3.120)
(LONG)STUD, (.437-14/.437-20 x 3.120)
(LONG) -
316-8M0034464 STUD, (.438 x 3.82 Inches)
(X-LONG)STUD, (.438 x 3.82 Inches)
(X-LONG) -
416-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
516-8M0034463 STUD, (.312-18/.324-24 x 3.380)STUD, (.312-18/.324-24 x 3.380)
-
616-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
78M0039169 FILLER BLOCKFILLER BLOCK
-
831-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
997-826134Q ANODEANODE
-
1010-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1111-401386 NUT, (M6)NUT, (M6)
-
1222-85822A10 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
-
13NSS NOT SOLD SEPARATE, Pinion Gear
(1.87:1 - 15 Teeth)(150)(Part of 43-828174A2 or 43-828701A1)NOT SOLD SEPARATE, Pinion Gear
(1.87:1 - 15 Teeth)(150)(Part of 43-828174A2 or 43-828701A1) -
1343-44101T3 GEAR, Pinion 2:1 - 14 Teeth
(2:1 - 14 Teeth)(135)(Also part of 43-828176A2 or 43-828703A1)GEAR, Pinion 2:1 - 14 Teeth
(2:1 - 14 Teeth)(135)(Also part of 43-828176A2 or 43-828703A1) -
1412-92721 WASHERWASHER
-
1511-35921 NUT, (.625-18)NUT, (.625-18)
-
1615-8M0063267 SHIM SETSHIM SET
-
1710-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
1812-191833 WASHER, FiberWASHER, Fiber
-
1922-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
20789022 SHIFT SHAFTSHIFT SHAFT
-
2123-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
2225-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
2326-8164641 SEAL, OilSEAL, Oil
-
2412-77674 WASHERWASHER
-
2545-897624T DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
2545-897625T DRIVESHAFT
(X-LONG)DRIVESHAFT
(X-LONG) -
2631-36387A1 BEARING, RollerBEARING, Roller
-
27NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
288245191 RETAINERRETAINER
-
2946-8M0077147 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
30NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
3127-426311 GASKETGASKET
-
3225-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
3326-89238 SEAL, OilSEAL, Oil
-
3426-16977 SEAL, OilSEAL, Oil
-
3527-8M0090319 GASKETGASKET
-
3627-858524 GASKETGASKET
-
37324351 FACE PLATEFACE PLATE
-
3846-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
3948752T INSERTINSERT
-
4026-38970 SEALSEAL
-
4147-89984T3 IMPELLERIMPELLER
-
4228-8M0032834 KEYKEY
-
4310-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
4412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4511-8267119 NUT, (.250-28)NUT, (.250-28)
-
4612-36001 WASHERWASHER
-
4711-13436 NUTNUT
-
4823-29804T SLEEVESLEEVE
-
-27-8M0046714 GASKET SETGASKET SET
-
-26-89238A2 SEAL KITSEAL KIT
-
-46-96148A8 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
