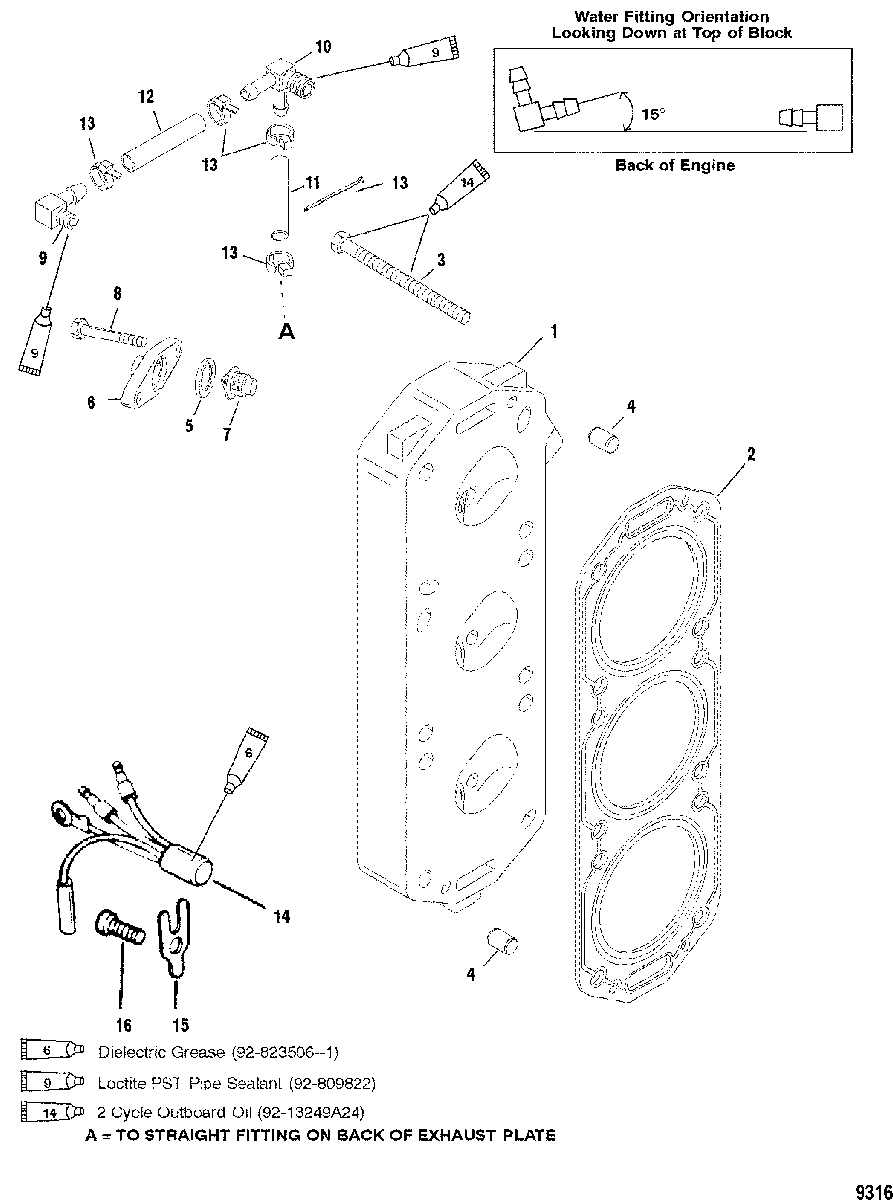

Cylinder Head для Mariner - V-135 DFI (2.5L) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
1852380T1 CYLINDER HEAD
(PORT)CYLINDER HEAD
(PORT) -
1852381T1 CYLINDER HEAD
(STARBOARD)CYLINDER HEAD
(STARBOARD) -
227-8525203 GASKETGASKET
-
310-832971 SCREW, (.375-16 x 3.00)SCREW, (.375-16 x 3.00)
-
417-74840 PIN, DowelPIN, Dowel
-
527-62386001 GASKETGASKET
-
68M0039353 COVERCOVER
-
7833072003 THERMOSTAT, 62A° Celsius (143A° Fahrenheit)THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
-
810-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
922-687271 FITTING, (.250-18) 90 Degree - Brass (Starboard)FITTING, (.250-18) 90 Degree - Brass (Starboard)
-
1022-68728 FITTING (Port)FITTING (Port)
-
1132-77653101 HOSE, (48.00 Inches Bulk) (Cut to 21-1/2 Inches)HOSE, (48.00 Inches Bulk) (Cut to 21-1/2 Inches)
-
1232-77653101 HOSE, (48.00 Inches Bulk) (Cut to 11-1/2 Inches)HOSE, (48.00 Inches Bulk) (Cut to 11-1/2 Inches)
-
1354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1413536A14 SENSOR ASSEMBLY, Temperature (Starboard)SENSOR ASSEMBLY, Temperature (Starboard)
-
15137151 RETAINERRETAINER
-
1610-81893412 SCREW, (M8 x 12)SCREW, (M8 x 12)
-
-27-8M0046714 GASKET SETGASKET SET
-
-804545R99 POWERHEAD ASSEMBLY
SN# 0G886267 & UpPOWERHEAD ASSEMBLY
SN# 0G886267 & Up -
-804545R99 POWERHEAD ASSEMBLY
SN# 0G886266 & BelowPOWERHEAD ASSEMBLY
SN# 0G886266 & Below
