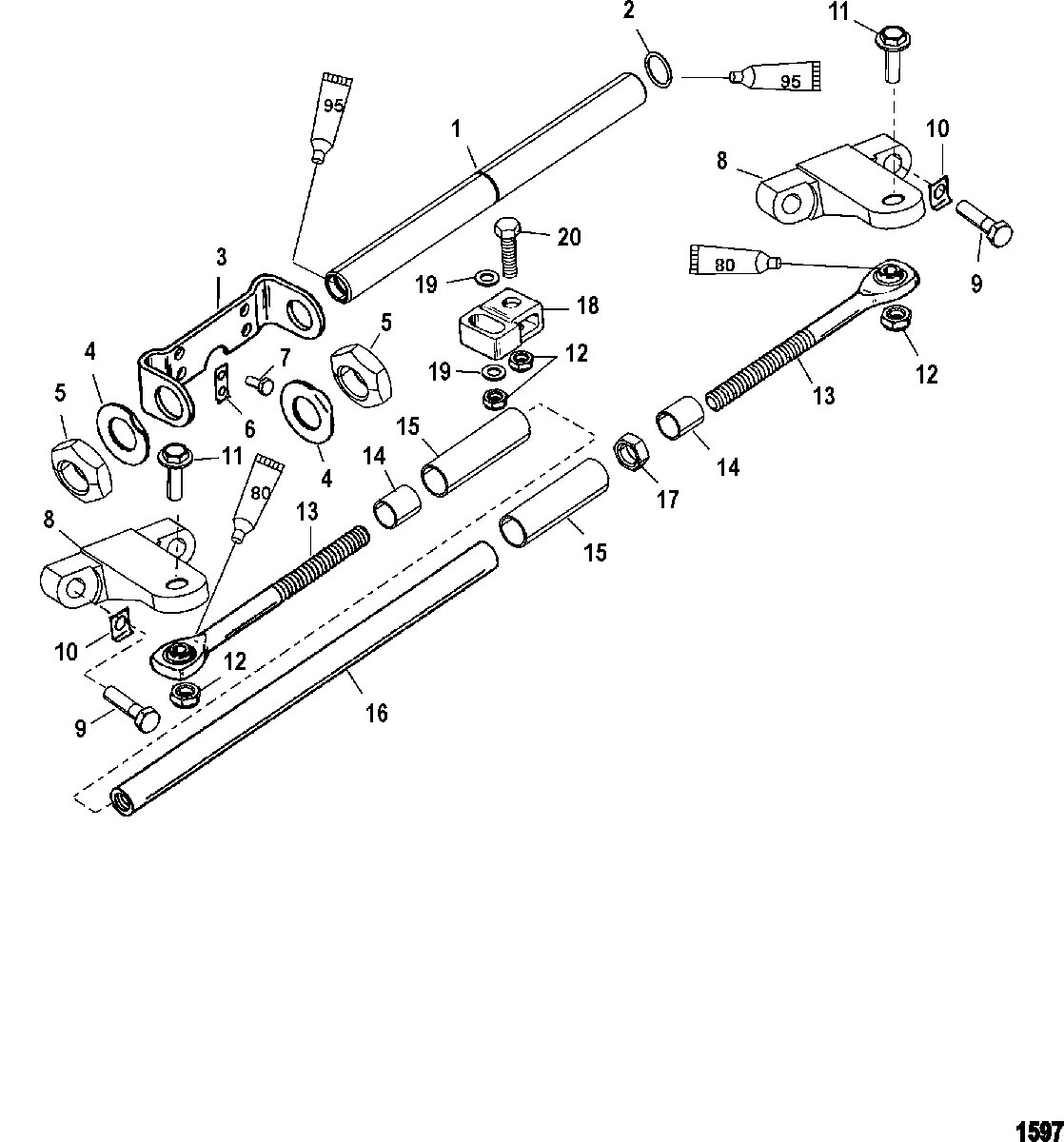

Dual Engine Tie Bar Kit для Mariner - V-135 DFI (2.5L) 0G960500 THRU 0T178499

№

Артикул

Название
-

92876A9 EXTENSION KIT, Dual Engine

EXTENSION KIT, Dual Engine

61 180 ₽
1

71565A2 TUBE ASSEMBLY

TUBE ASSEMBLY

4 580 ₽
2

25-48462 O-RING, (.614 x .070)

O-RING, (.614 x .070)

140 ₽
3

41055 MOUNT

MOUNT

5 250 ₽
4

14-42100 TAB WASHER

TAB WASHER

460 ₽
5

11-8M0041651 NUT, (.875-14)

NUT, (.875-14)

960 ₽
6

88404 TAB WASHER

TAB WASHER

200 ₽
7

10-38601 SCREW, (.250-28 x 1.250)

SCREW, (.250-28 x 1.250)

140 ₽
8

17729A1 BRACKET

BRACKET

6 950 ₽
9

10-62055 SCREW, (.312-24 x 1.250)

SCREW, (.312-24 x 1.250)

200 ₽
10

17728 TAB WASHER

TAB WASHER

460 ₽
11

10-140001 SCREW, (.375-24 x 1.38)

SCREW, (.375-24 x 1.38)

1 510 ₽
12

11-8M0042636 NUT, (.375-24) Stainless Steel

NUT, (.375-24) Stainless Steel

150 ₽
13

8M0026167 STEERING EYE

STEERING EYE

12 320 ₽
14

23-23651 SLEEVE, (1.625)

SLEEVE, (1.625)

410 ₽
15

97931 TUBING, (4.00 Inches)

TUBING, (4.00 Inches)

940 ₽
16

8M0026098 COUPLER, (15.00 Inches)

COUPLER, (15.00 Inches)

17 270 ₽
17

11-42099 NUT, (.562-18)

NUT, (.562-18)

970 ₽
18

22-821169 COUPLING

COUPLING

3 550 ₽
19

12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
(.734 O.D.)

WASHER, (.406 x .734 x .063) Stainless Steel
(.734 O.D.)

70 ₽
19

12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(.625 O.D.)

WASHER, (.390 x .625 x .062) Stainless Steel
(.625 O.D.)

50 ₽
20

10-94319 SCREW, (.375-24 x 1.5)

SCREW, (.375-24 x 1.5)

200 ₽
