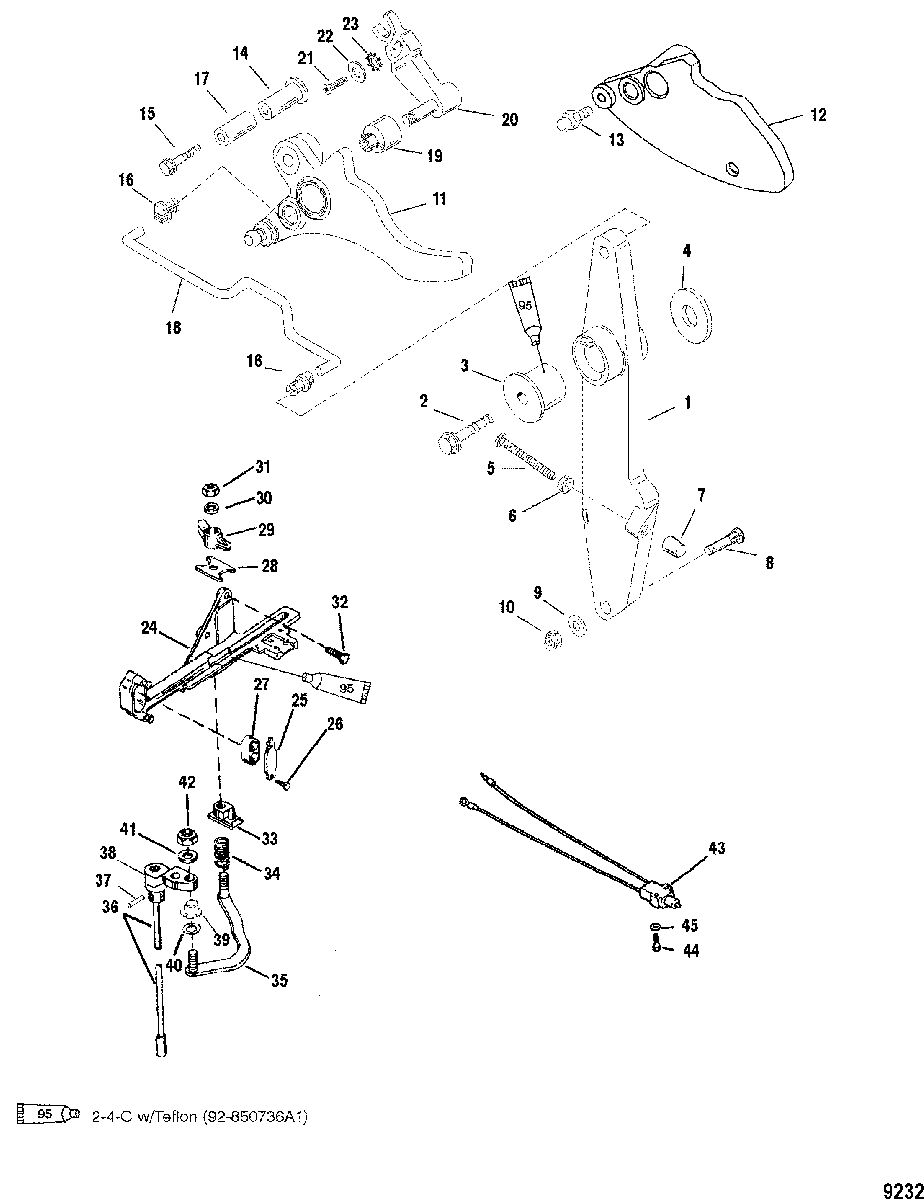

Throttle Lever and Shift Shaft для Mariner - V-135 DFI (2.5L) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
18M0040990 LEVERLEVER
-
210-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
323-55164 BUSHINGBUSHING
-
423-858959 SPACERSPACER
-
510-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
611-64015 NUT, (.250-20)NUT, (.250-20)
-
726852 CAP, NylonCAP, Nylon
-
842927 INSERTINSERT
-
912-35459 WASHERWASHER
-
1011-401386 NUT, (M6)NUT, (M6)
-
118562211 CAM
(135/150)CAM
(135/150) -
12858847 CAM
(115)CAM
(115) -
138235694 BALL, Threaded
(115)BALL, Threaded
(115) -
1423-856895 BUSHINGBUSHING
-
1510-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
1623-932481 BUSHINGBUSHING
-
1730-856896 BEARINGBEARING
-
188508152 LINKLINK
-
1967748 ROLLERROLLER
-
20850286A03 LEVERLEVER
-
2110-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
2212-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
2313-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
24814283T6 BRACKET, AnchorBRACKET, Anchor
-
2598889 LATCHLATCH
-
2610-42975 DRIVE SCREWDRIVE SCREW
-
2739519 CUPCUP
-
2852100 WEAR PLATEWEAR PLATE
-
298M0036768 LATCHLATCH
-
3012-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3111-826709109 NUT, (.250-28)NUT, (.250-28)
-
3210-28782 SCREW, (.312-18 x .880) Stainless SteelSCREW, (.312-18 x .880) Stainless Steel
-
33814284 GUIDE BLOCKGUIDE BLOCK
-
3424-20099 SPRINGSPRING
-
3567073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
3679932A16 SHIFT SHAFT ASSEMBLY
(LONG)SHIFT SHAFT ASSEMBLY
(LONG) -
3679932A17 SHIFT SHAFT ASSEMBLY
(X-LONG)SHIFT SHAFT ASSEMBLY
(X-LONG) -
37NSS NOT SOLD SEPARATE, Roll PinNOT SOLD SEPARATE, Roll Pin
-
38NSS NOT SOLD SEPARATE, Shift Shaft Lever-UpperNOT SOLD SEPARATE, Shift Shaft Lever-Upper
-
3923-26856 BUSHINGBUSHING
-
4013-29720 WAVE WASHERWAVE WASHER
-
4112-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4211-826709109 NUT, (.250-28)NUT, (.250-28)
-
4387-8M0052931 SWITCHSWITCH
-
4410-77478 SCREW, (#6-32 x .875)SCREW, (#6-32 x .875)
-
4512-27882 WASHERWASHER
