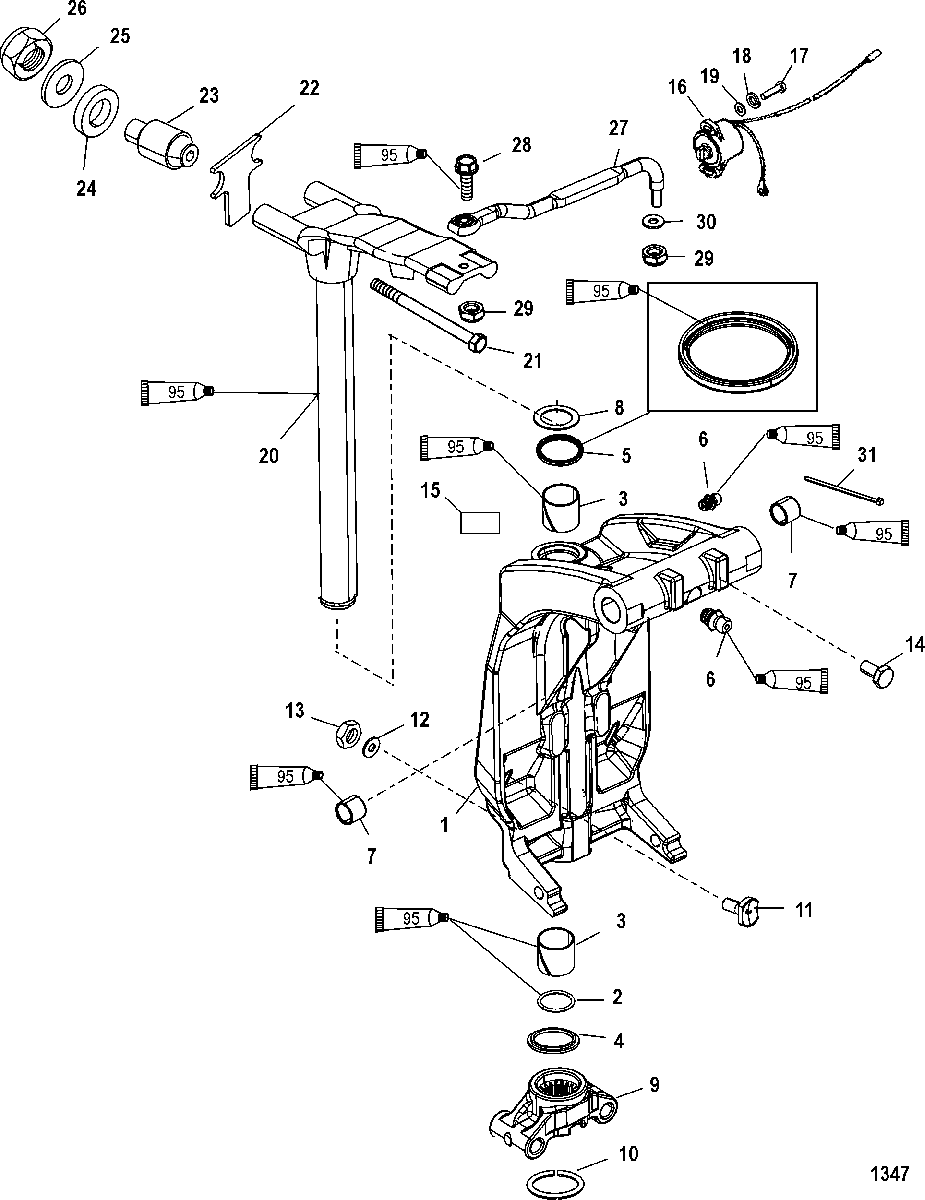

Swivel Bracket and Steering Arm для Mariner - V-135 DFI (2.5L) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, BlackSWIVEL BRACKET ASSEMBLY, Black
-
225-33504 O-RINGO-RING
-
323-818764 BUSHINGBUSHING
-
423-816039 SPACERSPACER
-
526-87735 SEAL, Oil (LOWER)SEAL, Oil (LOWER)
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
812-816432 THRUST WASHERTHRUST WASHER
-
9878182T01 YOKE ASSEMBLY, Bottom
(CARBON STEEL)YOKE ASSEMBLY, Bottom
(CARBON STEEL) -
9878182T01 YOKE, Bottom - Stainless Steel
(STAINLESS STEEL)YOKE, Bottom - Stainless Steel
(STAINLESS STEEL) -
1053-67684 RING, RetainingRING, Retaining
-
118M0045383 STRIKER PLATESTRIKER PLATE
-
1213-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1311-46335 NUT, (.375-24)NUT, (.375-24)
-
1410-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
15NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
168M0098273 SENDER ASSEMBLY, Trim
(TRACKER)SENDER ASSEMBLY, Trim
(TRACKER) -
1710-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
-
1813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1912-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
2017-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm
(CARBON STEEL)SWIVEL PIN ASSEMBLY, Steering Arm
(CARBON STEEL) -
2017-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel
(STAINLESS STEEL)SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel
(STAINLESS STEEL) -
2110-8M0000491 SCREW, (.437-20 x 7.50)SCREW, (.437-20 x 7.50)
-
228M0000516 BUMPERBUMPER
-
2377326 MOUNTMOUNT
-
2412-66921 WASHERWASHER
-
2512-78688 WASHERWASHER
-
2611-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2792876A12 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
2810-849838 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
2911-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
3012-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
