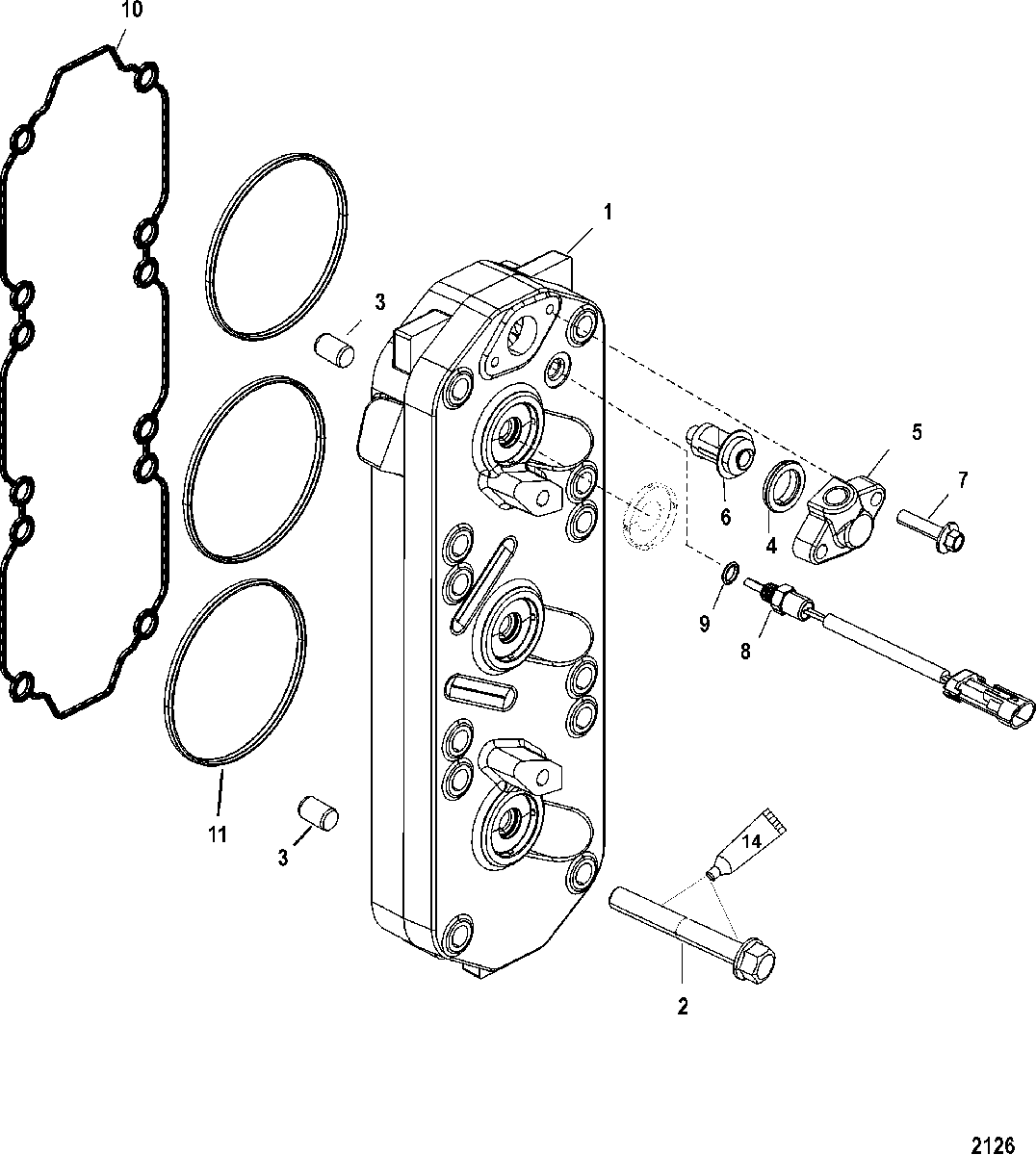

Cylinder Head для Mariner - V-135 DFI (2.5L) 1B417702 & Up
-
№АртикулНазвание
-
1858405T05 CYLINDER HEAD
Port - 135CYLINDER HEAD
Port - 135 -
1858405T05 CYLINDER HEAD
Port - 150/Jet 110CYLINDER HEAD
Port - 150/Jet 110 -
1878109T1 CYLINDER HEAD ASSEMBLY
Port - 175CYLINDER HEAD ASSEMBLY
Port - 175 -
1858406T05 CYLINDER HEAD
Starboard - 135CYLINDER HEAD
Starboard - 135 -
1858406T05 CYLINDER HEAD
Starboard - 150/Jet 110CYLINDER HEAD
Starboard - 150/Jet 110 -
1878110T1 CYLINDER HEAD ASSEMBLY
Starboard - 175CYLINDER HEAD ASSEMBLY
Starboard - 175 -
210-8M0125882 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
317-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
427-62386001 GASKETGASKET
-
58M0039353 COVERCOVER
-
6833072003 THERMOSTAT, 62A°C (143A°F)THERMOSTAT, 62A°C (143A°F)
-
710-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
8885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
925-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
108584521 SEALSEAL
-
118597721 SEALSEAL
-
-27-8M0046714 GASKET SET, EngineGASKET SET, Engine
-
-879808T07 POWERHEAD ASSEMBLY
135/150/Jet 110POWERHEAD ASSEMBLY
135/150/Jet 110 -
-879809T07 POWERHEAD ASSEMBLY
175POWERHEAD ASSEMBLY
175
