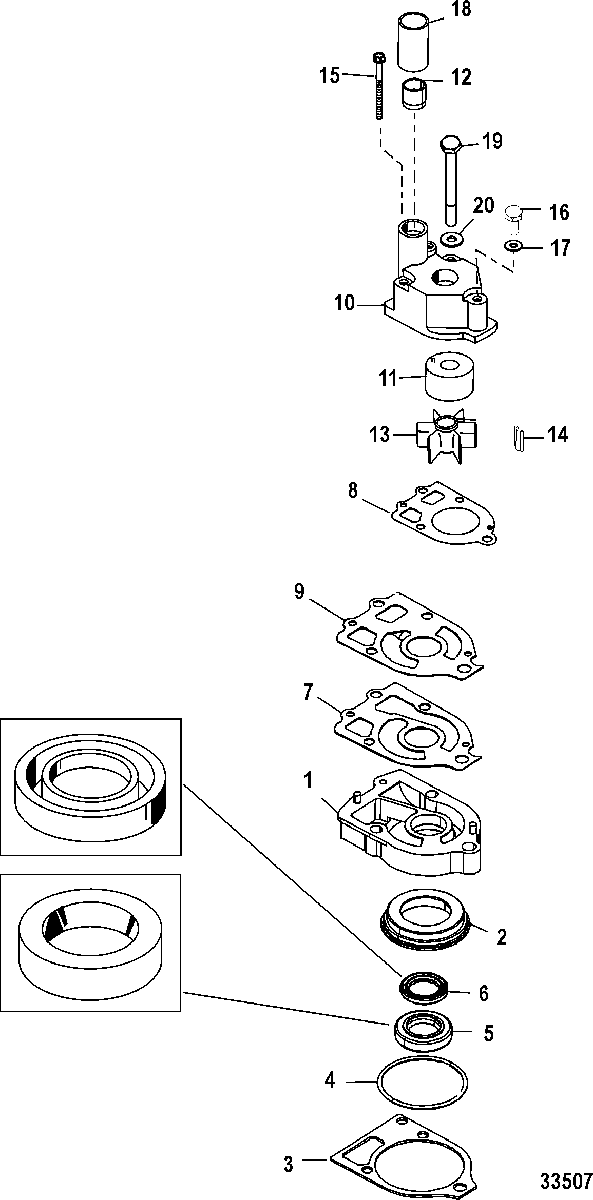

Water Pump Kit, Jet для Mariner - V-135 DFI (2.5L) 1B417702 & Up
-
№АртикулНазвание
-
-46-8M0077148 PUMP KIT, WaterPUMP KIT, Water
-
146-8M0077147 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
327-426311 GASKETGASKET
-
425-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
526-89238 SEAL, OilSEAL, Oil
-
626-16977 SEAL, OilSEAL, Oil
-
727-8M0090319 GASKETGASKET
-
827-858524 GASKETGASKET
-
9324351 FACE PLATEFACE PLATE
-
1046-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
1148752T INSERTINSERT
-
1226-38970 SEALSEAL
-
1347-89984T3 IMPELLERIMPELLER
-
1428-8M0032834 KEYKEY
-
1510-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
1610-19924275 SCREW, (.312-18 x 2.75)SCREW, (.312-18 x 2.75)
-
1712-36001 WASHERWASHER
-
1823-29804T SLEEVESLEEVE
-
1910-35049 SCREW, (.250-20 x 2.75)SCREW, (.250-20 x 2.75)
-
2012-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2112-45176 WASHER, (.453 x .812 x .105) Stainless Steel
Mounting hardwareWASHER, (.453 x .812 x .105) Stainless Steel
Mounting hardware -
2211-34933 NUT, (.437-20) Stainless Steel
Mounting hardwareNUT, (.437-20) Stainless Steel
Mounting hardware
