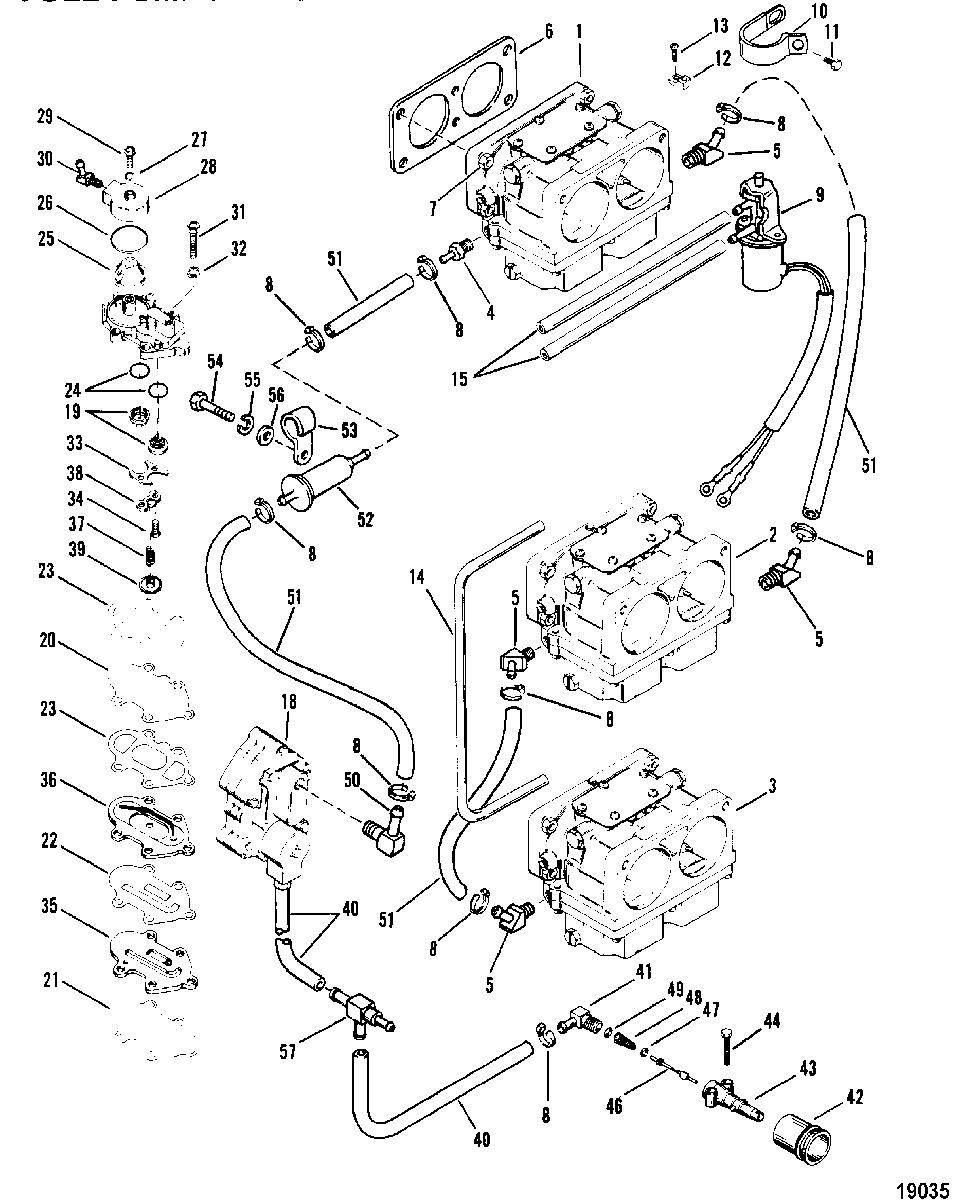

Fuel Pump(Old Design Fuel Pump) для Mariner - V-135 0A904646 THRU 0C100860
-
№АртикулНазвание
-
11382-7563A10 CARBURETOR (TOP) - (WH-35)CARBURETOR (TOP) - (WH-35)
-
21382-7563A11 CARBURETOR (CENTER) - (WH-35)CARBURETOR (CENTER) - (WH-35)
-
31382-7563A12 CARBURATOR (BOTTOM) - (WH-35)CARBURATOR (BOTTOM) - (WH-35)
-
11374-9242A33 CARBURETOR (TOP) - (WH-40)CARBURETOR (TOP) - (WH-40)
-
21374-9242A34 CARBURETOR (CENTER) - (WH-40)CARBURETOR (CENTER) - (WH-40)
-
31374-9242A35 CARBURETOR (BOTTOM) - (WH-40)CARBURETOR (BOTTOM) - (WH-40)
-
11382-7563A13 CARBURETOR (TOP) - (WH-38)CARBURETOR (TOP) - (WH-38)
-
21382-7563A14 CARBURETOR (CENTER) - (WH-38)CARBURETOR (CENTER) - (WH-38)
-
31382-7563A15 CARBURETOR (BOTTOM) - (WH-38)CARBURETOR (BOTTOM) - (WH-38)
-
41395-6232 FITTING, FUEL INLETFITTING, FUEL INLET
-
522-70007 FITTING, 45 Degree, FUEL INLETFITTING, 45 Degree, FUEL INLET
-
627-904301 GASKET, CARBURETORGASKET, CARBURETOR
-
711-20184 NUT, (1/4-28X7/32), CARBURETOR MOUNTINGNUT, (1/4-28X7/32), CARBURETOR MOUNTING
-
854-816311T CLAMP, FUEL HOSE TO CARBURETORCLAMP, FUEL HOSE TO CARBURETOR
-
942859A2 VALVE ASSEMBLY, Enrichner, ENRICHNERVALVE ASSEMBLY, Enrichner, ENRICHNER
-
1054-633001 CLAMP, ENRICHNER VALVECLAMP, ENRICHNER VALVE
-
1110-69079 SCREW, (#10-16 x .440), VALVE CLAMPSCREW, (#10-16 x .440), VALVE CLAMP
-
1286-45915 TERMINAL BLOCK, REED BLOCK HOUSINGTERMINAL BLOCK, REED BLOCK HOUSING
-
1310-35519 SCREW, (#10-16 x .500), TERMINAL BLOCK ATTACHINGSCREW, (#10-16 x .500), TERMINAL BLOCK ATTACHING
-
1432-892024122 TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE (7-3/4")TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE (7-3/4")
-
1532-9912688 TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR (4-1/4")TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR (4-1/4")
-
1813453A1 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
1921-30430A8 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
2089031A2 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
21NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
22NSS NOT SOLD SEPARATE, Gasket-Pulse ChamberNOT SOLD SEPARATE, Gasket-Pulse Chamber
-
23NSS NOT SOLD SEPARATE, Gasket-Fuel PumpNOT SOLD SEPARATE, Gasket-Fuel Pump
-
24NSS NOT SOLD SEPARATE, Gasket-Check Valve to HousingNOT SOLD SEPARATE, Gasket-Check Valve to Housing
-
2535-59072 SCREEN, FUEL INLETSCREEN, FUEL INLET
-
2625-35480 O-RING, (1.237 x .103), FUEL INLET COVERO-RING, (1.237 x .103), FUEL INLET COVER
-
27NSS NOT SOLD SEPARATE, Gasket-Cover Attaching ScrewNOT SOLD SEPARATE, Gasket-Cover Attaching Screw
-
2835-91078A1 COVER ASSEMBLY, FUEL FILTERCOVER ASSEMBLY, FUEL FILTER
-
2910-89766 SCREW, (#10-32 x .620) Stainless Steel, FUEL FILTER COVERSCREW, (#10-32 x .620) Stainless Steel, FUEL FILTER COVER
-
3022-70007 FITTING, 45 Degree, INLET FUEL LINEFITTING, 45 Degree, INLET FUEL LINE
-
3110-73013 SCREW, 10-32 x 1.50, FUEL PUMPSCREW, 10-32 x 1.50, FUEL PUMP
-
3213-26996 LOCKWASHER, (#10) Stainless Steel, FUEL PUMP SCREWLOCKWASHER, (#10) Stainless Steel, FUEL PUMP SCREW
-
3323004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
3410-43723 SCREW, (#6-32 x .500), RETAINER ATTACHINGSCREW, (#6-32 x .500), RETAINER ATTACHING
-
3567623 BASE, FUEL PUMPBASE, FUEL PUMP
-
3686449 CHAMBER, PULSE - FUEL PUMPCHAMBER, PULSE - FUEL PUMP
-
3724-86207 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3886026 RETAINER, SPRINGRETAINER, SPRING
-
3986252 CAP, SPRING ENDCAP, SPRING END
-
4032-8M0108355 LINE, (57.00 Inches Bulk), INLETLINE, (57.00 Inches Bulk), INLET
-
4122-920071 FITTING, (.250-18), FUEL LINE (90 DEGREES)FITTING, (.250-18), FUEL LINE (90 DEGREES)
-
4292037 SEAL, ADAPTORSEAL, ADAPTOR
-
4330186 ADAPTOR, CHECK UNITADAPTOR, CHECK UNIT
-
4410-69067 SCREW, (.250-20 x 1.375), ADAPTOR TO BRACKETSCREW, (.250-20 x 1.375), ADAPTOR TO BRACKET
-
4630185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
4725-16524 O-RING, ADAPTOR STEMO-RING, ADAPTOR STEM
-
4824-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
4930188 WASHER, ADAPTORWASHER, ADAPTOR
-
5022-19688 FITTING, FUEL PUMPFITTING, FUEL PUMP
-
5132-8M0108355 LINE, (57.00 Inches Bulk)LINE, (57.00 Inches Bulk)
-
5235-816296Q03 FILTER, FuelFILTER, Fuel
-
5354-26404 CLAMP, FUEL FILTERCLAMP, FUEL FILTER
-
5410-78291 SCREW, (.190-24 x .500), CLAMPSCREW, (.190-24 x .500), CLAMP
-
5513-26996 LOCKWASHER, (#10) Stainless Steel, CLAMP SCREWLOCKWASHER, (#10) Stainless Steel, CLAMP SCREW
-
568M0084613 C WASHER, CLAMP SCREWC WASHER, CLAMP SCREW
-
5722-42425 TEETEE
-
-27-90484A88 GASKET SETGASKET SET
