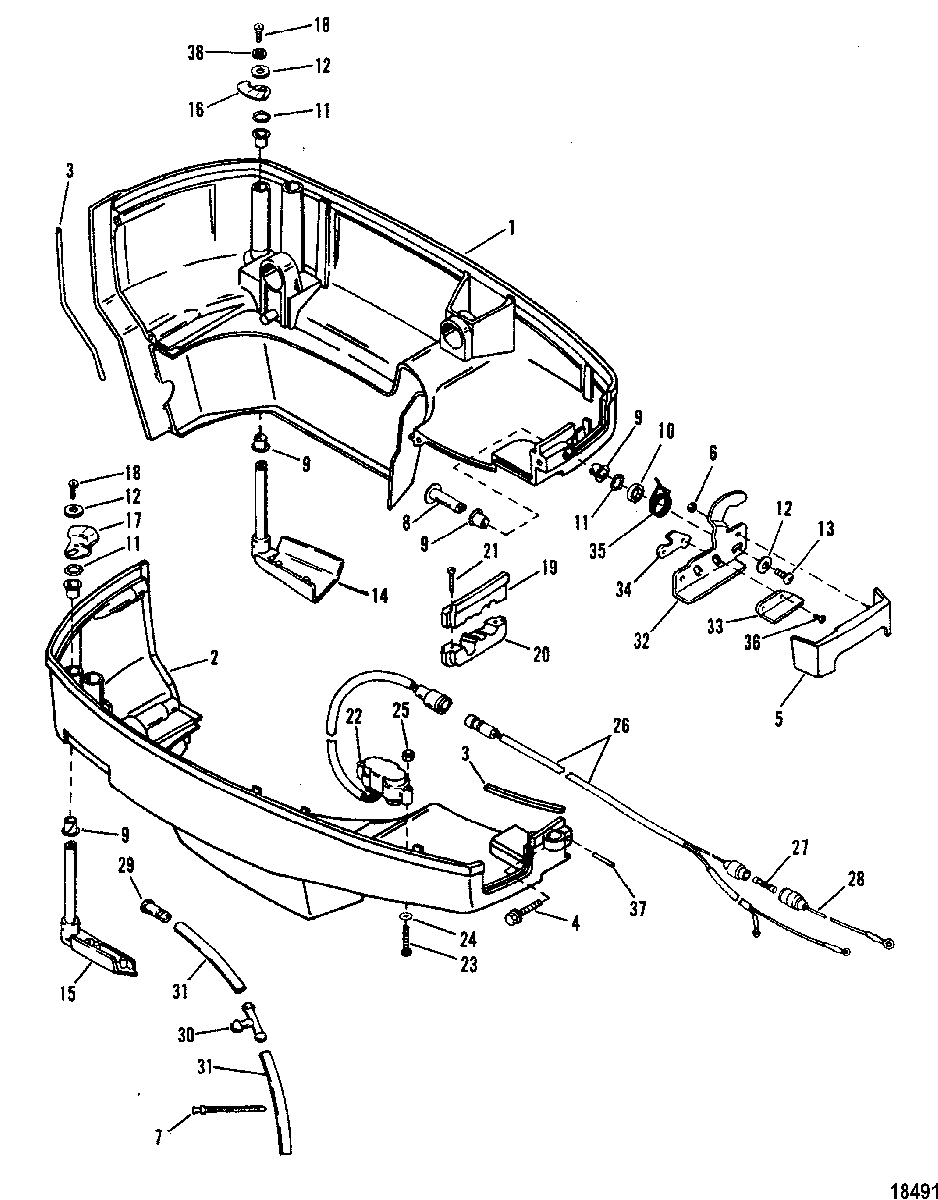

Bottom Cowl для Mariner - V-135 0C100861 THRU 0C239552
-
№АртикулНазвание
-
12197-9744A16 BOTTOM COWL ASSEMBLY, PORT (BLACK)BOTTOM COWL ASSEMBLY, PORT (BLACK)
-
12197-9744A16 BOTTOM COWL ASSEMBLY, PORT (GRAY)BOTTOM COWL ASSEMBLY, PORT (GRAY)
-
22197-9745A1 BOTTOM COWL ASSEMBLY, STARBOARD (BLACK)BOTTOM COWL ASSEMBLY, STARBOARD (BLACK)
-
22197-9745A2 BOTTOM COWL ASSEMBLY, STARBOARD (GRAY)BOTTOM COWL ASSEMBLY, STARBOARD (GRAY)
-
318701A1 SEAL KIT, BOTTOM COWLSSEAL KIT, BOTTOM COWLS
-
410-18699 SCREW, (.250-20 x 1.320), COWL (STANDARD)SCREW, (.250-20 x 1.320), COWL (STANDARD)
-
518872A1 COVER ASSEMBLY (BLACK)COVER ASSEMBLY (BLACK)
-
518872A1 COVER ASSEMBLY (GRAY)COVER ASSEMBLY (GRAY)
-
611-8136921 LOCK NUTLOCK NUT
-
754-816311T STA STRAPSTA STRAP
-
818727 RODROD
-
923-65830 NYLINERNYLINER
-
1023-19666 BUSHINGBUSHING
-
1113-99611 WAVE WASHERWAVE WASHER
-
1212-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
1310-18192 SCREW, (.25-20 x .62)SCREW, (.25-20 x .62)
-
1419648A2 HANDLE ASSEMBLY, PORT (BLACK)HANDLE ASSEMBLY, PORT (BLACK)
-
1419648A2 HANDLE ASSEMBLY, PORT (GRAY)HANDLE ASSEMBLY, PORT (GRAY)
-
1519647A3 HANDLE ASSEMBLY, STARBOARD (BLACK)HANDLE ASSEMBLY, STARBOARD (BLACK)
-
1519647A3 HANDLE ASSEMBLY, STARBOARD (GRAY)HANDLE ASSEMBLY, STARBOARD (GRAY)
-
1619370 PAWL, PORTPAWL, PORT
-
1719369 PAWL, STARBOARDPAWL, STARBOARD
-
1810-90047 SCREWSCREW
-
1954-19749 CLAMP, UPPERCLAMP, UPPER
-
2054-197481 CLAMP, LOWERCLAMP, LOWER
-
2110-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
2284-16636A1 HARNESS ASSEMBLY, TRIMHARNESS ASSEMBLY, TRIM
-
2310-72202 SCREW, (#10-32 x 1.25)SCREW, (#10-32 x 1.25)
-
2412-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2511-826709106 NUT, (#10-32)NUT, (#10-32)
-
2684-16639A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2788-79091 FUSE, (20 Ampere)FUSE, (20 Ampere)
-
2884-95084A2 CABLE ASSEMBLY, FUSECABLE ASSEMBLY, FUSE
-
2922-813613 FITTING, TELLTALEFITTING, TELLTALE
-
3022-90824001 TEE, TELLTALETEE, TELLTALE
-
3132-8M0108355 FUEL LINE, (57.00 Inches Bulk), TELLTALEFUEL LINE, (57.00 Inches Bulk), TELLTALE
-
32813076A2 FRONT HANDLE ASSEMBLYFRONT HANDLE ASSEMBLY
-
33813076A2 HANDLE LOCKHANDLE LOCK
-
34813076A2 HANDLEHANDLE
-
35813076A2 SPRINGSPRING
-
3610-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
3717-815296 LOCK PINLOCK PIN
-
3813-26992 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
-813096A1 REAR LATCH KITREAR LATCH KIT
