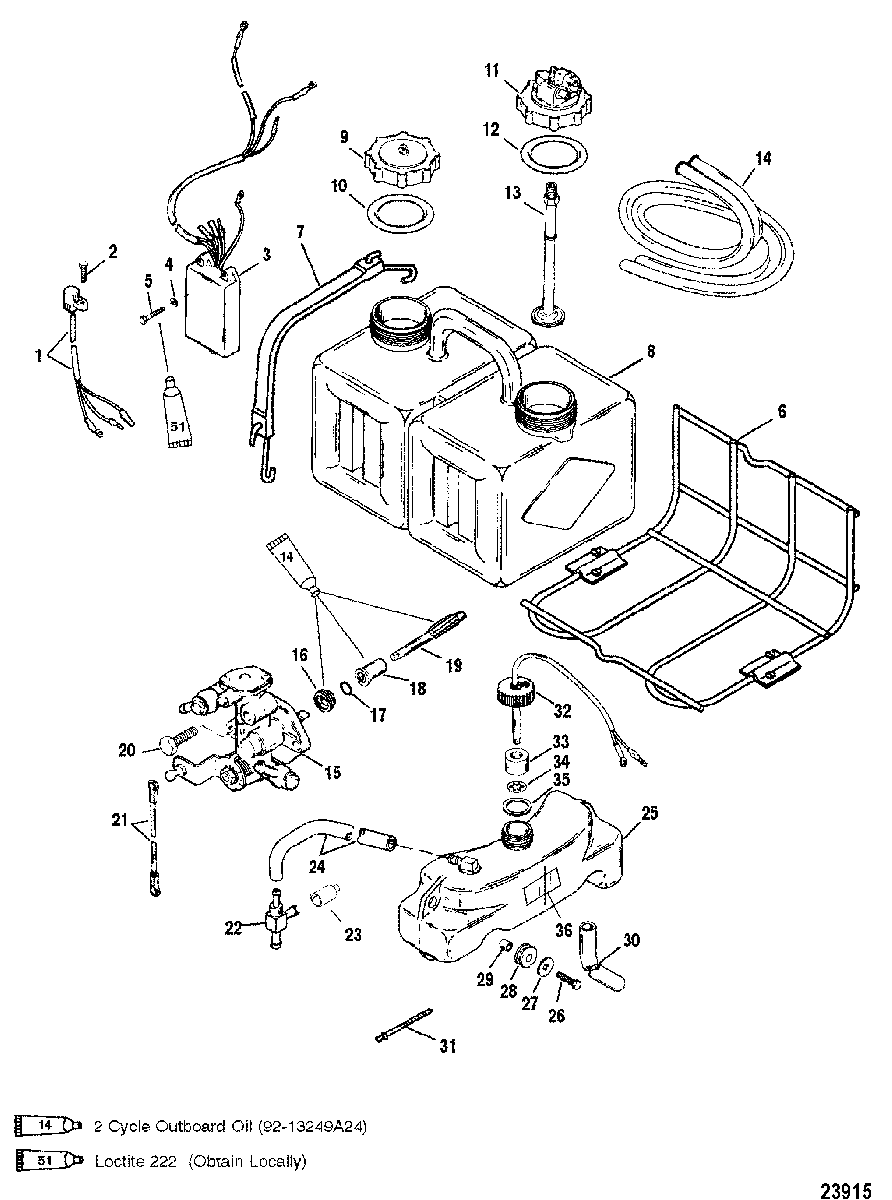

OIL INJECTION COMPONENTS для Mariner - V-135 0G760300 THRU 0G960499
-
№АртикулНазвание
-
112430A4 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
210-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
341470A26 WARNING MODULE ASSEMBLYWARNING MODULE ASSEMBLY
-
412-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
510-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
612335A1 BRACKET KITBRACKET KIT
-
712323A1 CORD/HOOK KITCORD/HOOK KIT
-
81257-87421 TANKTANK
-
936-43298A2 CAP ASSEMBLYCAP ASSEMBLY
-
1025-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
11816190A4 HOUSING ASSEMBLY, AdapterHOUSING ASSEMBLY, Adapter
-
1225-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
1332-99802 TUBETUBE
-
1432-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
-
15815698T PUMP, Oil
(135)PUMP, Oil
(135) -
15815699T PUMP ASSEMBLY, Oil
(150/XR6/MAGNUM III/175/200)PUMP ASSEMBLY, Oil
(150/XR6/MAGNUM III/175/200) -
168141032 BUSHING, WormBUSHING, Worm
-
1725-11379 O-RINGO-RING
-
1823-41429A2 BEARING ASSEMBLYBEARING ASSEMBLY
-
1943-14563 GEAR, DrivenGEAR, Driven
-
2010-32228 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
2210-41507 SCREW, (#10-32 x 1.120)SCREW, (#10-32 x 1.120)
-
21193855 LINK ASSEMBLYLINK ASSEMBLY
-
2222-424254 FITTINGFITTING
-
23NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
2432-8M0108355 HOSE, (57.00 Inches Bulk) (6 IN.)HOSE, (57.00 Inches Bulk) (6 IN.)
-
25994436 RESERVOIRRESERVOIR
-
2610-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2712-42118 WASHERWASHER
-
2825-42117 GROMMETGROMMET
-
2923-42116 BUSHINGBUSHING
-
3032-82381455 TUBING, (25.00 Inches Bulk) (4-3/4 IN.)TUBING, (25.00 Inches Bulk) (4-3/4 IN.)
-
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3236-43300A9 CAP ASSEMBLYCAP ASSEMBLY
-
3399022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3411-99265 PUSH NUTPUSH NUT
-
3527-43307T GASKETGASKET
-
36NSS NOT SOLD SEPARATE, Decal-reservoir WarningNOT SOLD SEPARATE, Decal-reservoir Warning
