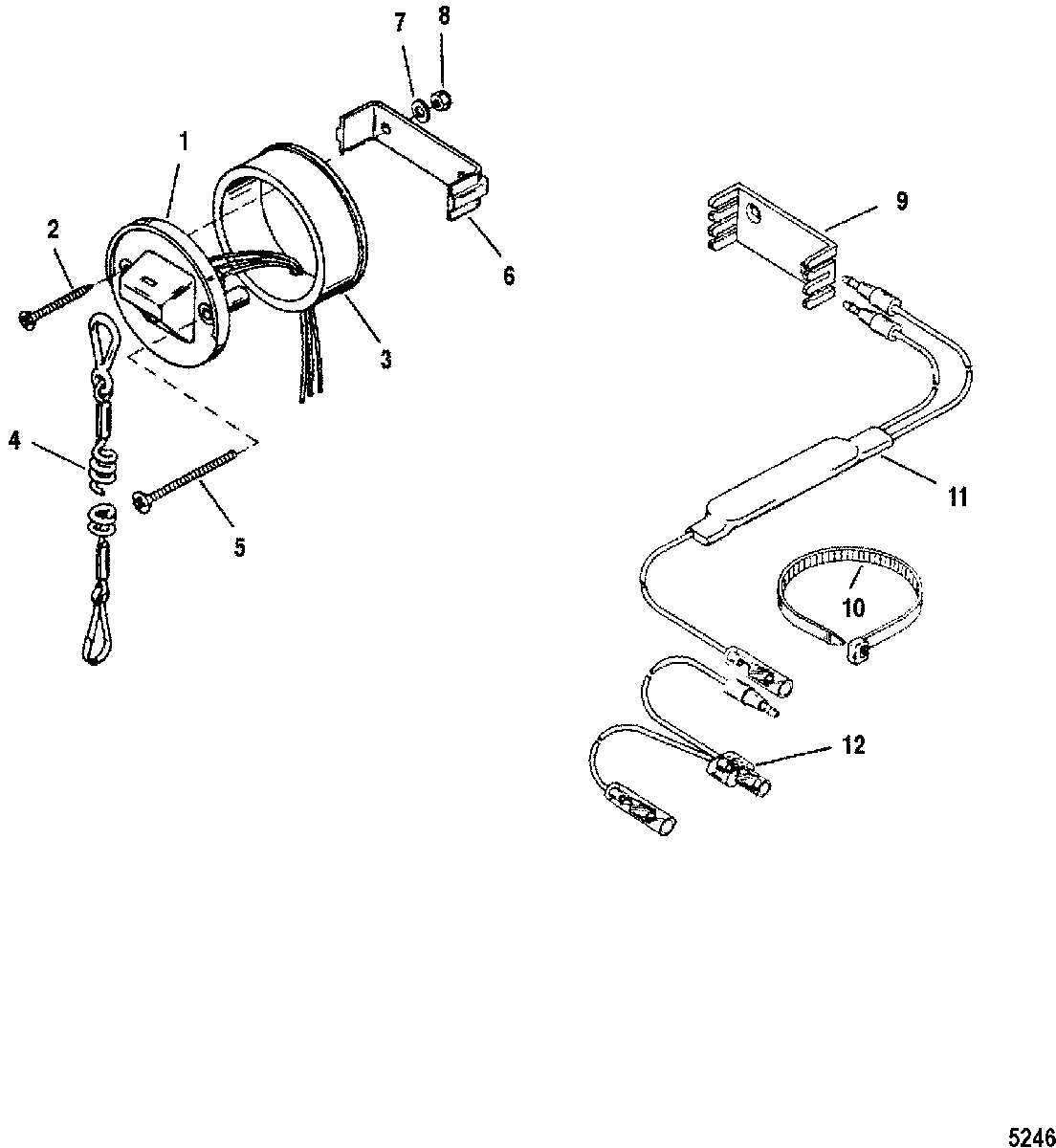

Instrumentation для Mariner - V-135 0G960500 THRU 0T178499
-
№АртикулНазвание
-
187-19674A1 SWITCH ASSEMBLY, LanyardSWITCH ASSEMBLY, Lanyard
-
210-18303 SCREW, (.190-16 x 1.750) Stainless SteelSCREW, (.190-16 x 1.750) Stainless Steel
-
3813679 ADAPTERADAPTER
-
48M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
510-32866 SCREW, (#10-32 x 2.00) Stainless SteelSCREW, (#10-32 x 2.00) Stainless Steel
-
618321 CLAMP, MountingCLAMP, Mounting
-
712-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
979146 RETAINERRETAINER
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1184-898289A72 DIODE ASSEMBLYDIODE ASSEMBLY
-
1284-11149A2 CABLE ASSEMBLY, (6.00 Inches)CABLE ASSEMBLY, (6.00 Inches)
