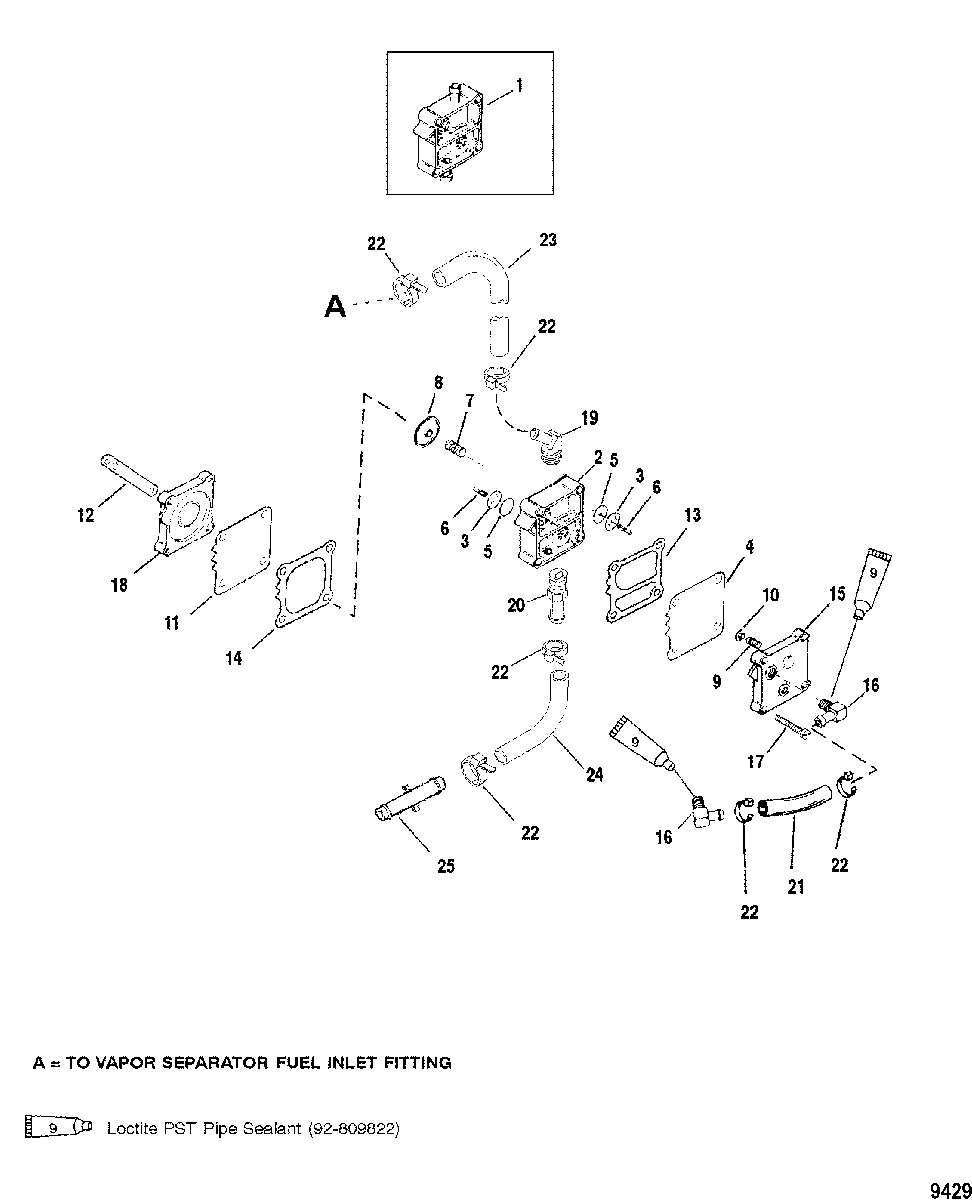

Fuel Pump для Mariner - V-150 DFI (2.5L) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1NSS NOT SOLD SEPARATE, Fuel Pump
(DESIGN I -REFER TO SERVICE BULLETIN 98-8)NOT SOLD SEPARATE, Fuel Pump
(DESIGN I -REFER TO SERVICE BULLETIN 98-8) -
214360T75 PUMP ASSEMBLY, Fuel
(DESIGN II - SCREW IN FITTINGSPUMP ASSEMBLY, Fuel
(DESIGN II - SCREW IN FITTINGS -
321-857005A1 DIAPHAGM KITDIAPHAGM KIT
-
4NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
5NSS NOT SOLD SEPARATE, Rubber Check ValveNOT SOLD SEPARATE, Rubber Check Valve
-
6NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
10NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
11NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
1227-987691 GASKETGASKET
-
13NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
14NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
15987752 PLATEPLATE
-
1622-996642 ELBOWELBOW
-
1710-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1710-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
18144303 BASEBASE
-
1922-782792 ELBOW (45 DEGREES)
(DESIGN II)ELBOW (45 DEGREES)
(DESIGN II) -
2022-291112 FITTING
(DESIGN II)FITTING
(DESIGN II) -
2132-8M0108349 TUBING, (28.00 Inches Bulk)TUBING, (28.00 Inches Bulk)
-
2254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2332-8M0064784 TUBING (W/INSULATING SLEEVE) (7 IN.)TUBING (W/INSULATING SLEEVE) (7 IN.)
-
2432-8M0043979 HOSE AND SLEEVE ASSEMBLY, (18.00 Inches)HOSE AND SLEEVE ASSEMBLY, (18.00 Inches)
-
2522-822769 CONNECTORCONNECTOR
-
-27-8M0046714 GASKET SETGASKET SET
-
-804545R99 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
