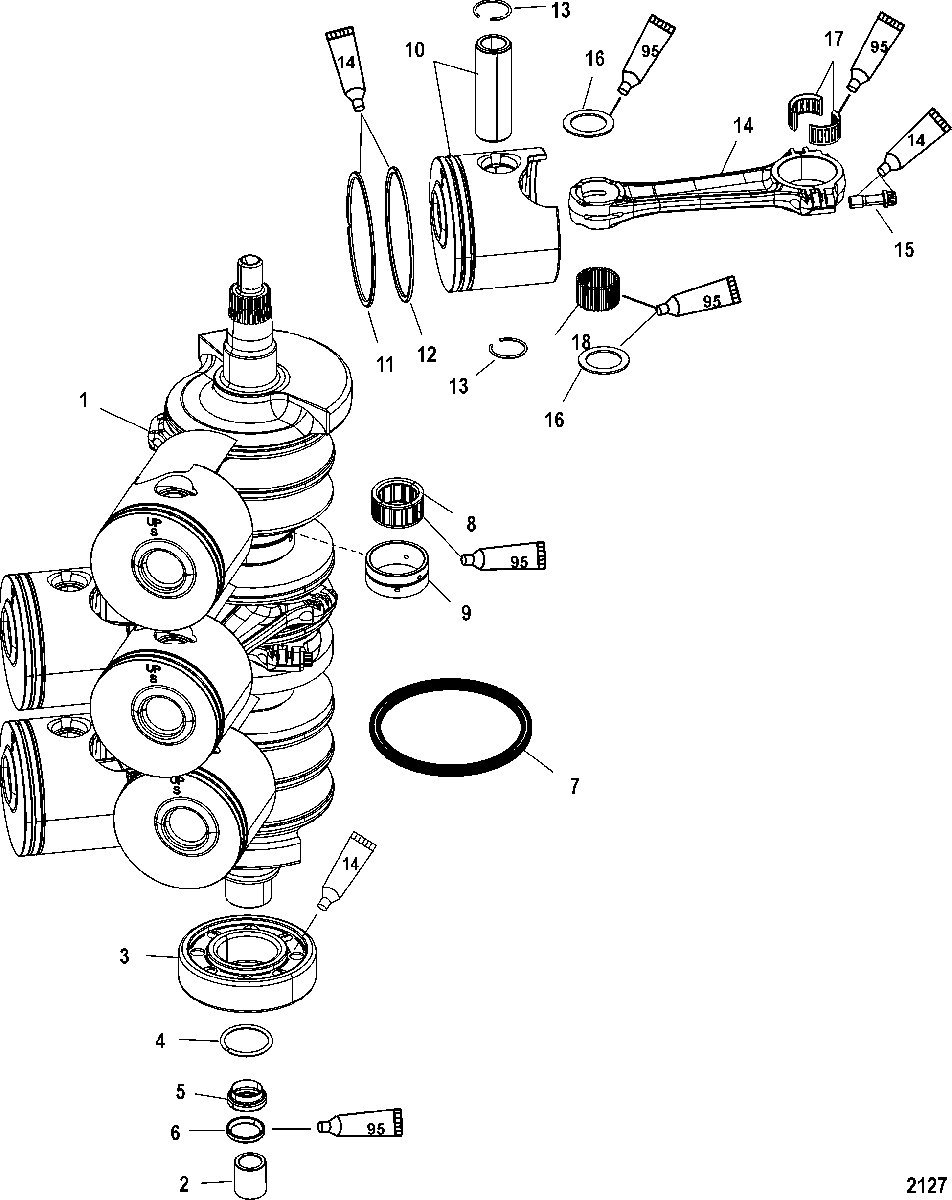

Crankshaft, Pistons and Connecting Rods для Mariner - V-150 DFI (2.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
1455-850690T2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
278662 WEAR SLEEVEWEAR SLEEVE
-
330-67923T BEARING, Ball (Lower)BEARING, Ball (Lower)
-
453-67446 RINGRING
-
554196A6 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
665800 PACKINGPACKING
-
739-67377T RING, SealingRING, Sealing
-
831-16756A6 BEARING KITBEARING KIT
-
9NSS NOT SOLD SEPARATE, RaceNOT SOLD SEPARATE, Race
-
10700-859563T17 PISTON
(Starboard)(Standard)PISTON
(Starboard)(Standard) -
10700-859562T17 PISTON
(Port)(Standard)PISTON
(Port)(Standard) -
10700-859563A5 PISTON ASSEMBLY
(Starboard)(.015 Oversize)PISTON ASSEMBLY
(Starboard)(.015 Oversize) -
10700-859562A5 PISTON ASSEMBLY
(Port)(.015 Oversize)PISTON ASSEMBLY
(Port)(.015 Oversize) -
1139-877544A12 RING SET
(Standard)RING SET
(Standard) -
1139-878106A12 RING SET, Piston
(.015 Oversize)RING SET, Piston
(.015 Oversize) -
12NSS NOT SOLD SEPARATE, Piston Ring-LowerNOT SOLD SEPARATE, Piston Ring-Lower
-
1353-8320811 LOCK RINGLOCK RING
-
14600-877853A04 CONNECTING ROD KITCONNECTING ROD KIT
-
1510-763491 SCREW, (.312-24 x .875)SCREW, (.312-24 x .875)
-
1612-8M0012299 THRUST WASHERTHRUST WASHER
-
1731-8M0045428 BEARING KITBEARING KIT
-
1829-822553 BEARING, NeedleBEARING, Needle
-
-27-8M0046714 GASKET SET, EngineGASKET SET, Engine
-
-879808T07 POWERHEAD ASSEMBLY
(135)POWERHEAD ASSEMBLY
(135) -
-879808T07 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-879809T07 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175)
