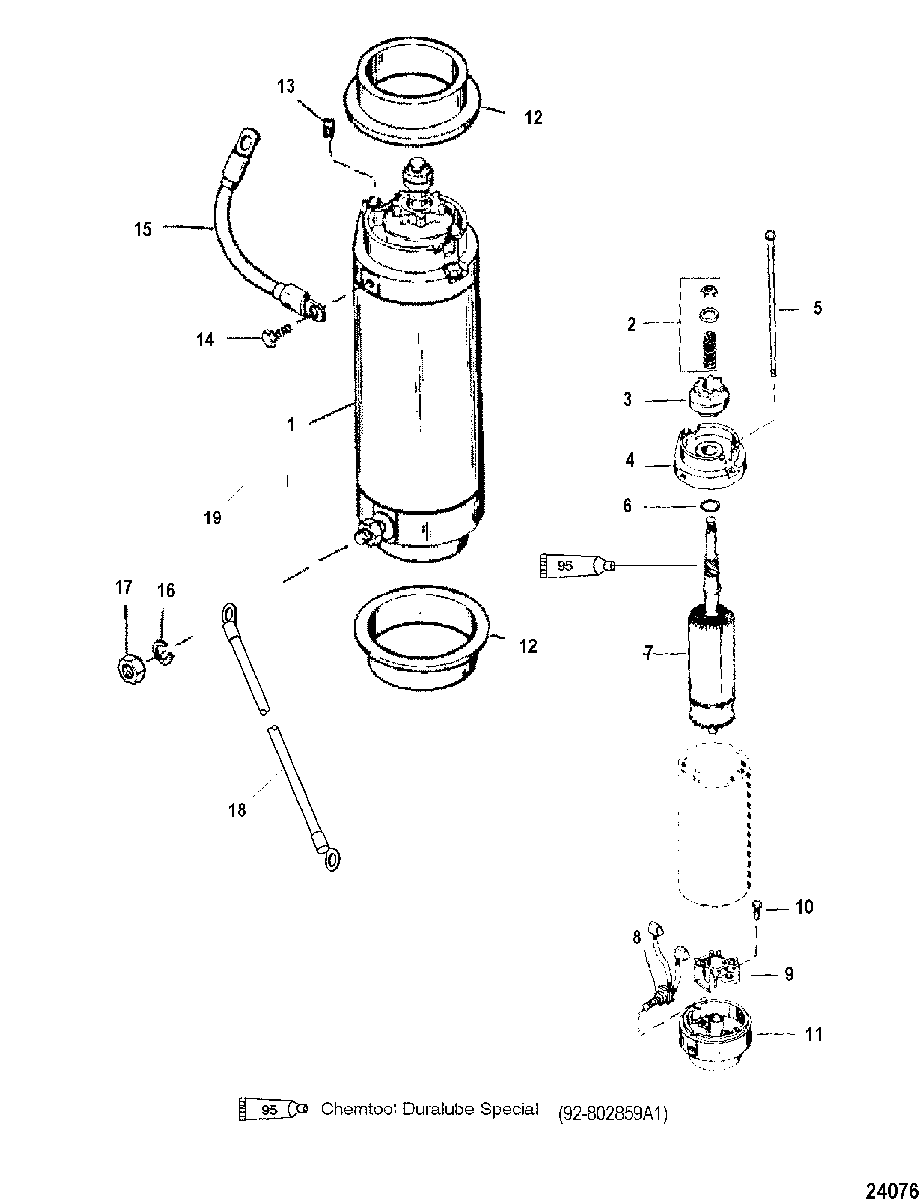

STARTER MOTOR(CENTRIFUGAL BENDIX) для Mariner - V-150 EFI (2.5L) 0T409000 THRU 0T800999
-
№АртикулНазвание
-
150-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
290645 DRIVE KITDRIVE KIT
-
313310T1 PINION ASSEMBLYPINION ASSEMBLY
-
475660 PLATEPLATE
-
510-749681 THRU BOLTTHRU BOLT
-
6NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
7792161 ARMATUREARMATURE
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDERHOLDER
-
10NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
1115386001 END CAPEND CAP
-
1223-8M0034918 COLLARCOLLAR
-
138M0043376 STOP, RubberSTOP, Rubber
-
1410-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
1584-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
1613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1711-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1884-88439A25 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
1937-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
