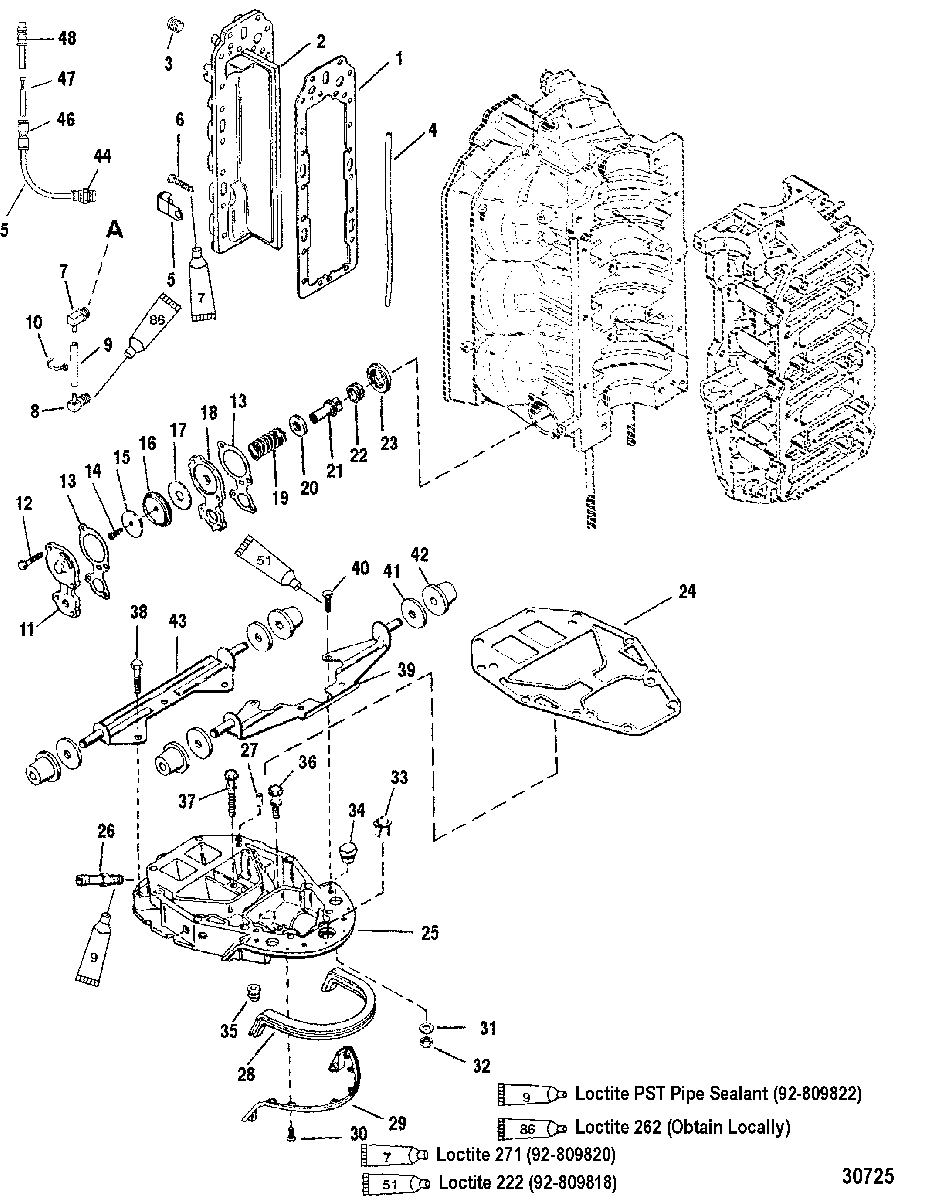

EXHAUST MANIFOLD AND EXHAUST PLATE для Mariner - V-150 (EFI) 0G960500 THRU 0T408999
-
№АртикулНазвание
-
127-190506 GASKETGASKET
-
2828343T3 PLATE, Exhaust DividerPLATE, Exhaust Divider
-
322-185981 PLUG, Pipe (.375-18)PLUG, Pipe (.375-18)
-
426-814754 SEAL, (12.50 Inches)SEAL, (12.50 Inches)
-
554-814634 CLAMPCLAMP
-
610-8263561 SCREW AND WASHER, (.312-18 x 1.500)SCREW AND WASHER, (.312-18 x 1.500)
-
610-881190 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
610-881892 SCREW, (.312-18 x 1.750)SCREW, (.312-18 x 1.750)
-
722-8144301 FITTINGFITTING
-
822-920071 FITTING, (90 Degree)FITTING, (90 Degree)
-
932-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 26 IN.)HOSE, (57.00 Inches Bulk) (Cut to 26 IN.)
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
118M0039767 COVERCOVER
-
1210-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1327-78690002 GASKETGASKET
-
1410-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
1512-76451 WASHERWASHER
-
16144791 DIAPHRAGMDIAPHRAGM
-
1716496 DEFLECTOR, WaterDEFLECTOR, Water
-
1816497A1 PLATEPLATE
-
1924-64878 SPRINGSPRING
-
2012-85303 WASHERWASHER
-
2114480 POPPETPOPPET
-
2225-64872 GROMMETGROMMET
-
2365848 CARRIERCARRIER
-
2427-991764 GASKETGASKET
-
2518260T2 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
2622-897722 FITTING, StraightFITTING, Straight
-
2717-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
288M0043164 SEALSEAL
-
29680101 BRACKETBRACKET
-
3010-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3112-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
3211-69254 NUTNUT
-
3323-27132 BUSHINGBUSHING
-
3425-19565002 GROMMETGROMMET
-
3525-12602002 GROMMETGROMMET
-
3610-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
3710-68783 SCREW, (.312-18 x 2.50)SCREW, (.312-18 x 2.50)
-
3810-898833 SCREW, (.375-16 x 3.50)SCREW, (.375-16 x 3.50)
-
39812905T BRACKET ASSEMBLY, FrontBRACKET ASSEMBLY, Front
-
4010-8055571 SCREW, (.3125-18 x .50)SCREW, (.3125-18 x .50)
-
4112-187031 WASHERWASHER
-
4225-18778001 GROMMETGROMMET
-
4318578T09 BRACKET ASSEMBLY, RearBRACKET ASSEMBLY, Rear
-
4422-881866 FITTINGFITTING
-
4532-85978571 TUBING, (44.00 Inches Bulk) (Cut to 44 IN.)TUBING, (44.00 Inches Bulk) (Cut to 44 IN.)
-
4622-859747 COUPLERCOUPLER
-
4722-859732 PLUGPLUG
-
4822-859731 FITTING, AdapterFITTING, Adapter
-
-27-815791A00 GASKET SET, EngineGASKET SET, Engine
-
-823434R00 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-812817T00 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
