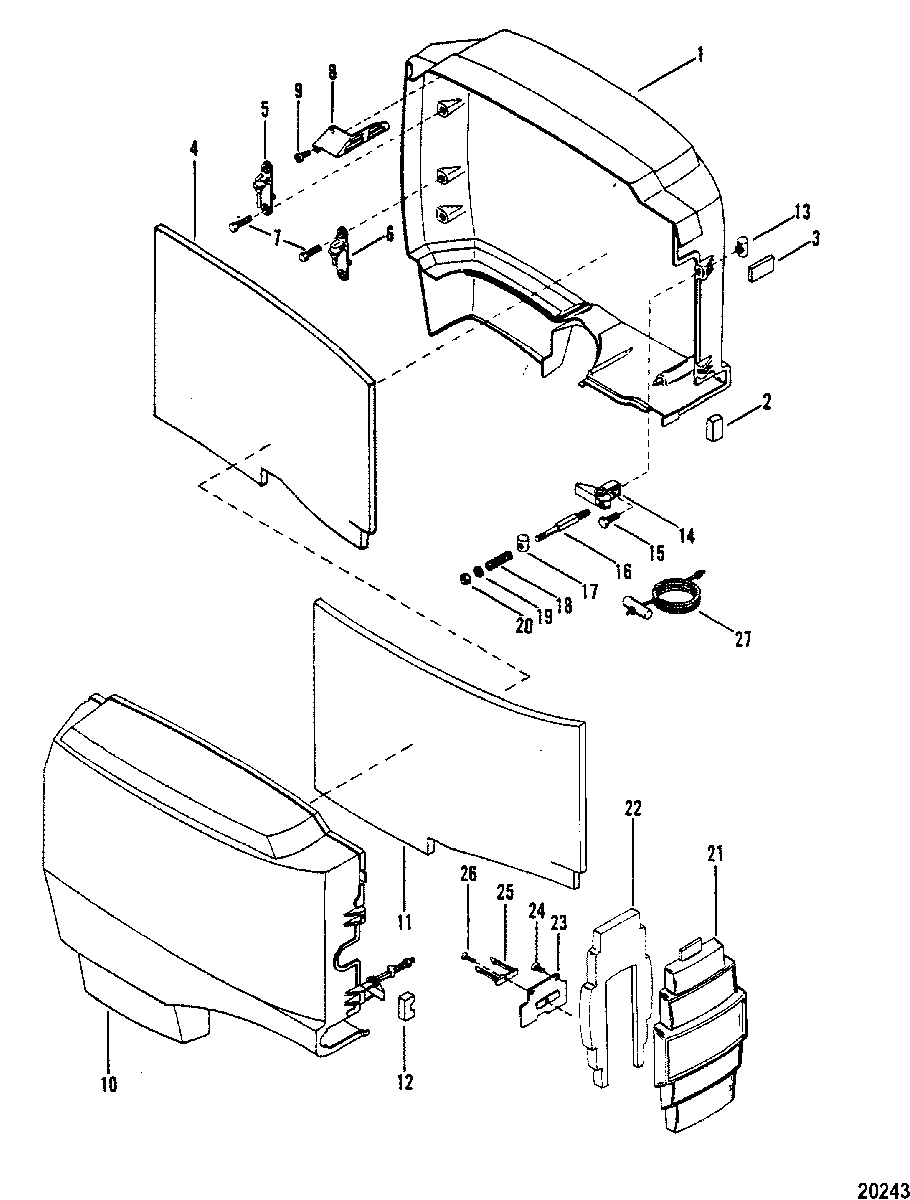

Cowls and Front Cover для Mariner - V-150 Magnum 5600162 THRU 0A904645
-
№АртикулНазвание
-
12151-7620A4 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
12151-7620A22 TOP COWL ASSEMBLY
(GRAY)TOP COWL ASSEMBLY
(GRAY) -
267260 SEALSEAL
-
367258 PADPAD
-
488227 BLANKETBLANKET
-
5879871 BRACKET, UPPERBRACKET, UPPER
-
687985 BRACKET, LOWERBRACKET, LOWER
-
710-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
868049 SHIELD
(STARBOARD)SHIELD
(STARBOARD) -
868048 SHIELD
(PORT)SHIELD
(PORT) -
910-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
910-57807 SCREW, (#10-16 x .750) Stainless SteelSCREW, (#10-16 x .750) Stainless Steel
-
102150-7619A1 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
102150-7619A5 TOP COWL ASSEMBLY
(GRAY)TOP COWL ASSEMBLY
(GRAY) -
1188227 BLANKETBLANKET
-
1267260 SEALSEAL
-
1362628 BARRELBARREL
-
1446785A5 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
1510-31312 SCREW, (#10-32 x 0.875)SCREW, (#10-32 x 0.875)
-
1615222 BARBAR
-
1762629 BARRELBARREL
-
1824-62624 SPRINGSPRING
-
1912-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
2011-859124 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
212149-5399A3 FRONT COVER
(BLACK)(USE W/REF. #23)FRONT COVER
(BLACK)(USE W/REF. #23) -
212149-5399A16 FRONT COVER
(GRAY)(USE W/REF. #23)FRONT COVER
(GRAY)(USE W/REF. #23) -
212149-7532A2 COVER ASSEMBLY, Cowl - Front
(BLACK)(USE W/O REF. #23)COVER ASSEMBLY, Cowl - Front
(BLACK)(USE W/O REF. #23) -
212149-7532A23 COVER ASSEMBLY, Cowl - Front
(GRAY)(USE W/O REF. #23)COVER ASSEMBLY, Cowl - Front
(GRAY)(USE W/O REF. #23) -
2267615 BLANKET
(USE W/REF. #23)BLANKET
(USE W/REF. #23) -
2267615 BLANKET
(USE W/O REF. #23)BLANKET
(USE W/O REF. #23) -
2367261 SHIELD
(USE W/REF. #23)SHIELD
(USE W/REF. #23) -
2410-35519 SCREW, (#10-16 x .500)
(USE W/REF. #23)SCREW, (#10-16 x .500)
(USE W/REF. #23) -
2561158T HOOK
(USE W/REF. #23)HOOK
(USE W/REF. #23) -
2587907 HOOK
(USE W/O REF. #23)HOOK
(USE W/O REF. #23) -
2610-75162 SCREW
(USE W/REF. #23)SCREW
(USE W/REF. #23) -
2610-95700 SCREW, (#10-16 x .500)
(USE W/O REF. #23)SCREW, (#10-16 x .500)
(USE W/O REF. #23) -
2747341A11 ROPE AND HANDLE KIT (MANUAL STARTING)ROPE AND HANDLE KIT (MANUAL STARTING)
