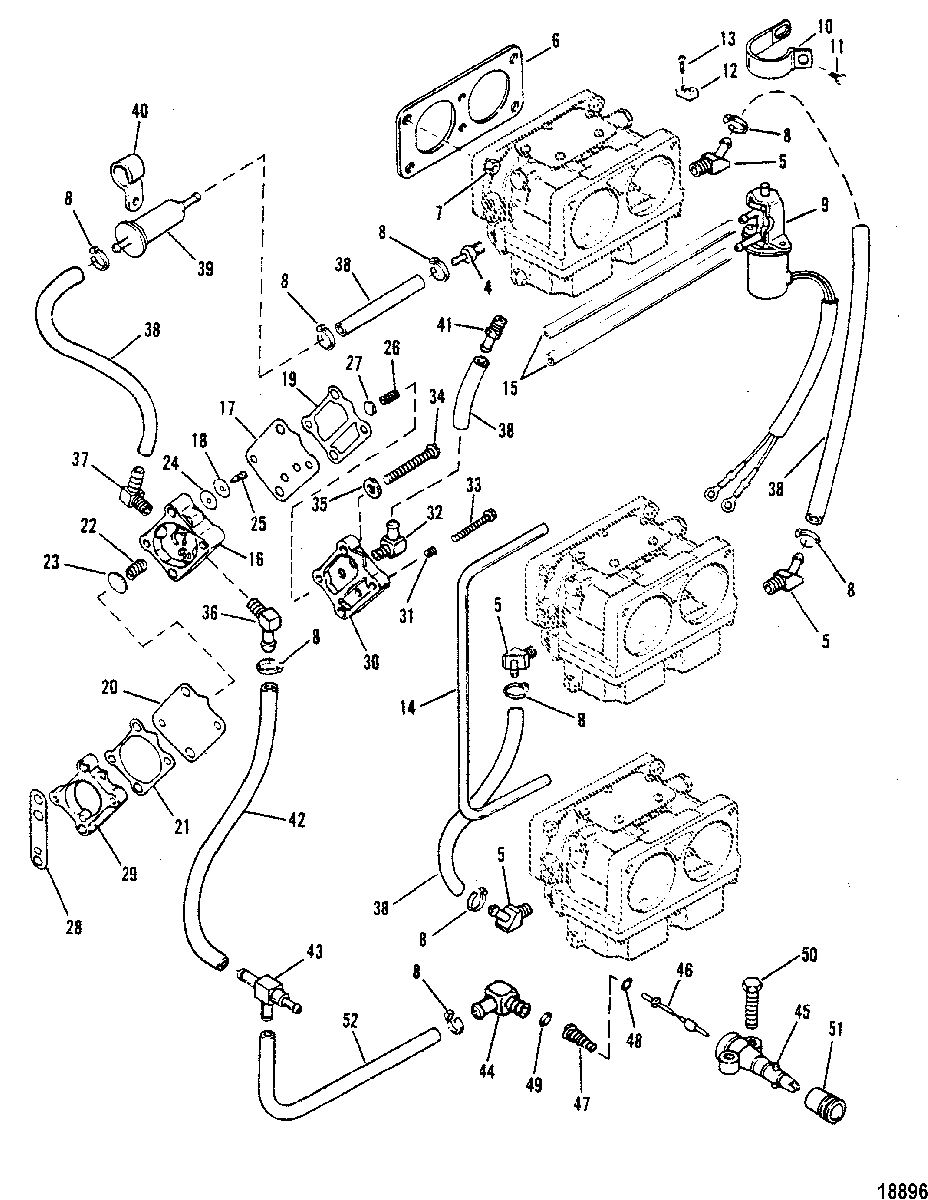

Fuel Pump(Square Fuel Pump) для Mariner - V-150 0A904646 THRU 0C100860
-
№АртикулНазвание
-
41395-6232 FITTING, FUEL INLETFITTING, FUEL INLET
-
522-70007 FITTING, 45 Degree, FUEL INLETFITTING, 45 Degree, FUEL INLET
-
627-904301 GASKET, CARBURETORGASKET, CARBURETOR
-
711-20184 NUT, (1/4-28X7/32), CARBURETOR MOUNTINGNUT, (1/4-28X7/32), CARBURETOR MOUNTING
-
854-816311T CLAMP, FUEL HOSE TO CARBURETORCLAMP, FUEL HOSE TO CARBURETOR
-
942859A2 VALVE ASSEMBLY, EnrichnerVALVE ASSEMBLY, Enrichner
-
1054-633001 CLAMP, ENRICHNER VALVECLAMP, ENRICHNER VALVE
-
1110-69079 SCREW, (#10-16 x .440), VALVE CLAMPSCREW, (#10-16 x .440), VALVE CLAMP
-
1286-45915 TERMINAL BLOCK, REED BLOCK HOUSINGTERMINAL BLOCK, REED BLOCK HOUSING
-
1310-35519 SCREW, (#10-16 x .500), TERMINAL BLOCK ATTACHINGSCREW, (#10-16 x .500), TERMINAL BLOCK ATTACHING
-
1432-892024122 TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE (7-3/4")TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE (7-3/4")
-
1532-9912688 TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR (4-1/4")TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR (4-1/4")
-
1615930A15 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
1721-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
18NSS NOT SOLD SEPARATE, Check Valve-RubberNOT SOLD SEPARATE, Check Valve-Rubber
-
19NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
20NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
21NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
22NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
23NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
24NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
25NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
26NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
27NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
2827-987691 GASKET, BASEGASKET, BASE
-
29144303 BASE, FUEL PUMPBASE, FUEL PUMP
-
30987752 PLATE, FUEL PUMPPLATE, FUEL PUMP
-
3122-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
3222-19688 FITTINGFITTING
-
3310-16452 SCREW, (#12-24 x 2.00), FUEL PUMPSCREW, (#12-24 x 2.00), FUEL PUMP
-
3410-4000310 SCREW, (M5 x 40), FUEL PUMP TO CRANKCASESCREW, (M5 x 40), FUEL PUMP TO CRANKCASE
-
3512-4002314 WASHER, FUEL PUMP SCREWWASHER, FUEL PUMP SCREW
-
3622-14868 FITTING, FUEL PUMP (ELBOW)FITTING, FUEL PUMP (ELBOW)
-
3722-19688 FITTING, FUEL PUMP (ELBOW)FITTING, FUEL PUMP (ELBOW)
-
3832-8M0108355 LINE, (57.00 Inches Bulk)LINE, (57.00 Inches Bulk)
-
3935-816296Q03 FILTER, FuelFILTER, Fuel
-
4054-15279 CLAMP, FUEL FILTERCLAMP, FUEL FILTER
-
4122-64705 FITTING, PULSE HOSEFITTING, PULSE HOSE
-
4232-8M0108349 TUBINGTUBING
-
4322-424253 TEETEE
-
4422-36221 ELBOW, FUEL LINE TO ADAPTOR
(BLACK & GRAY)ELBOW, FUEL LINE TO ADAPTOR
(BLACK & GRAY) -
4530186 ADAPTOR, CHECK UNIT
(BLACK & GRAY)ADAPTOR, CHECK UNIT
(BLACK & GRAY) -
4630185Q3 STEM, CHECK UNIT ADAPTOR
(BLACK & GRAY)STEM, CHECK UNIT ADAPTOR
(BLACK & GRAY) -
4724-30189 SPRING, ADAPTOR TO STEM
(BLACK & GRAY)SPRING, ADAPTOR TO STEM
(BLACK & GRAY) -
4825-16524 O-RING, ADAPTOR STEM
(BLACK & GRAY)O-RING, ADAPTOR STEM
(BLACK & GRAY) -
4930188 WASHER, ADAPTOR
(BLACK & GRAY)WASHER, ADAPTOR
(BLACK & GRAY) -
5010-69067 SCREW, (.250-20 x 1.375), ADAPTOR TO BOTTOM COWL
(BLACK & GRAY)SCREW, (.250-20 x 1.375), ADAPTOR TO BOTTOM COWL
(BLACK & GRAY) -
5192037 SEAL, FUEL CONNECTOR
(BLACK & GRAY)SEAL, FUEL CONNECTOR
(BLACK & GRAY) -
5232-8M0108349 TUBING
(BLACK & GRAY)TUBING
(BLACK & GRAY) -
-27-90484A88 GASKET SETGASKET SET
