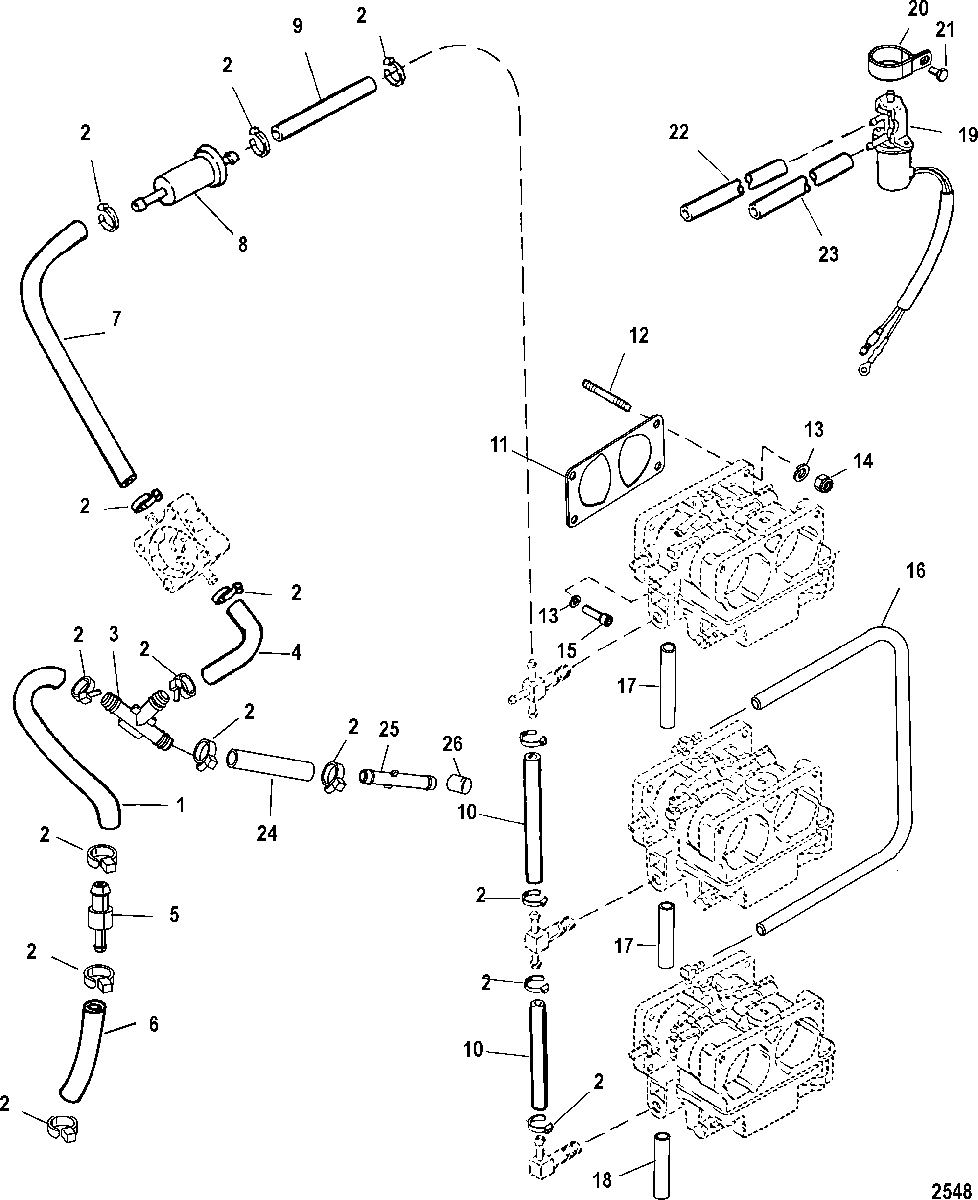

Fuel Lines для Mariner - V-150 0G960500 THRU 1B226999
-
№АртикулНазвание
-
132-82381335 TUBING, (15.00 Inches Bulk) (Cut to 4-1/2 Inches)TUBING, (15.00 Inches Bulk) (Cut to 4-1/2 Inches)
-
254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
322-818993 CONNECTOR, TeeCONNECTOR, Tee
-
432-830760 HOSEHOSE
-
522-8189941 CHECK VALVECHECK VALVE
-
632-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 2 Inches)- To Oil PumpTUBING, (.312) (70.00 Inches Bulk) (Cut to 2 Inches)- To Oil Pump
-
732-830762 HOSEHOSE
-
835-816296Q2 FILTER, FuelFILTER, Fuel
-
932-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 11 Inches)HOSE, (57.00 Inches Bulk) (Cut to 11 Inches)
-
1032-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 4-1/2 Inches)HOSE, (57.00 Inches Bulk) (Cut to 4-1/2 Inches)
-
1127-828292 GASKETGASKET
-
1216-270372 STUD, (.250-28 x 1.125)STUD, (.250-28 x 1.125)
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1411-8267089 NUT, (.250-28)NUT, (.250-28)
-
1510-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
1632-892024122 TUBING, (20.00 Feet Bulk) (Cut to 9 Inches)
SN# 0T800999 & BelowTUBING, (20.00 Feet Bulk) (Cut to 9 Inches)
SN# 0T800999 & Below -
1632-892024122 TUBING, (240.00 Inches Bulk) (Cut to 9 Inches)
SN# 0T801000 & UpTUBING, (240.00 Inches Bulk) (Cut to 9 Inches)
SN# 0T801000 & Up -
1732-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 4-1/4 Inches)HOSE, (.187) (26.00 Inches Bulk) (Cut to 4-1/4 Inches)
-
1832-9912878 HOSE, (.187) (26.00 Inches Bulk) (26 Inches RequiredI)- To Cylinder HeadHOSE, (.187) (26.00 Inches Bulk) (26 Inches RequiredI)- To Cylinder Head
-
1989-819503A4 SOLENOID KIT, Enrichner ValveSOLENOID KIT, Enrichner Valve
-
2054-633003 CLAMPCLAMP
-
2110-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
2232-9912688 TUBING, (36.00 Inches Bulk) (Cut to 4-1/2 Inches)- To Top CarbTUBING, (36.00 Inches Bulk) (Cut to 4-1/2 Inches)- To Top Carb
-
2332-9912688 TUBING, (36.00 Inches Bulk) (Cut to 3-3/4 Inches)-To Middle CarbTUBING, (36.00 Inches Bulk) (Cut to 3-3/4 Inches)-To Middle Carb
-
2432-85682257 TUBING, (26.00 Inches Bulk) (Cut to 18 Inches)TUBING, (26.00 Inches Bulk) (Cut to 18 Inches)
-
2522-822769 CONNECTORCONNECTOR
-
26NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
-27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not includedGASKET SET, Engine, Cylinder head o-rings and seal not included
-
-812815R97 POWERHEAD ASSEMBLY
(135)POWERHEAD ASSEMBLY
(135) -
-823434R00 POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III)POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III) -
-813043R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
