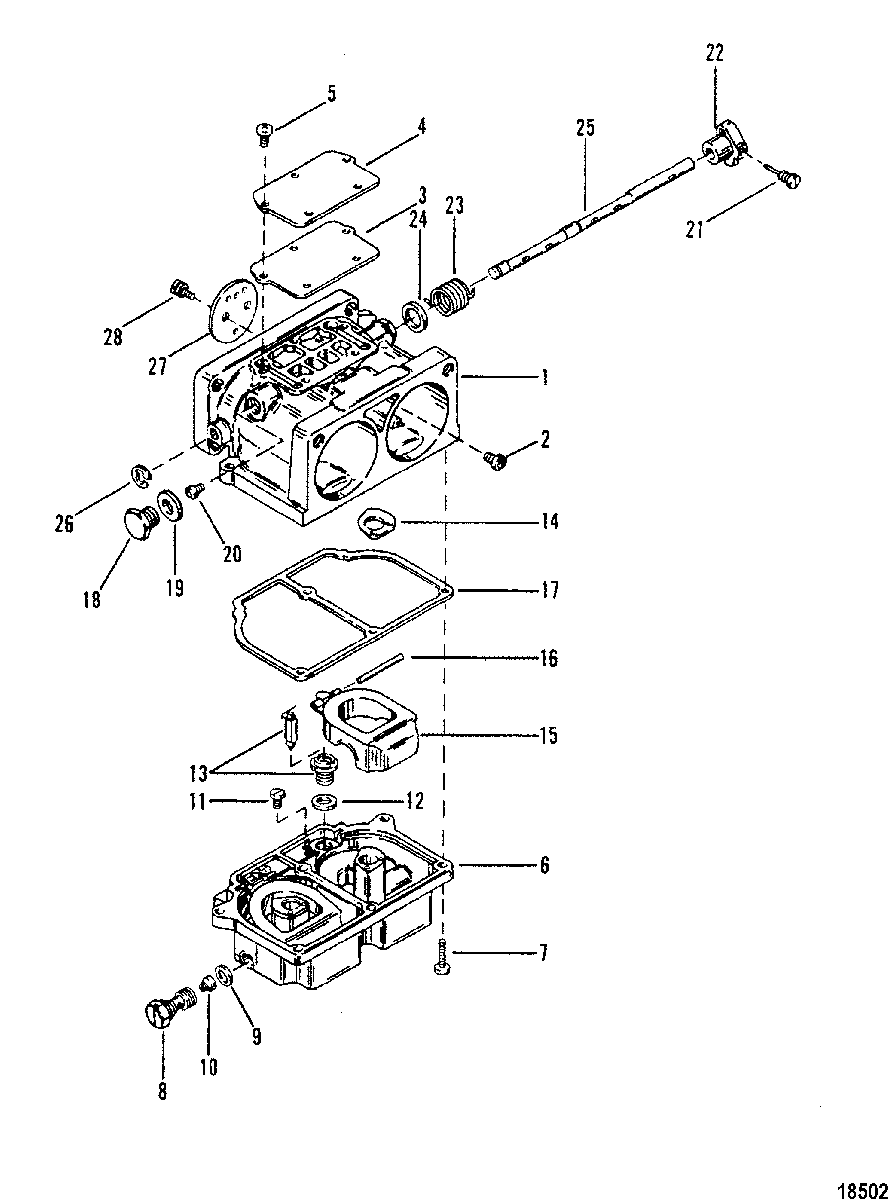

Carburetor Assembly для Mariner - V-150 5600162 THRU 0A904645
-
№АртикулНазвание
-
11382-7563A1 CARBURATOR
(WH-9)CARBURATOR
(WH-9) -
11382-7563A4 CARBURETOR
(TOP)(WH-12)CARBURETOR
(TOP)(WH-12) -
11382-7563A5 CARBURETOR
(CENTER)(WH-12)CARBURETOR
(CENTER)(WH-12) -
11382-7563A6 CARBURETOR
(BOTTOM)(WH-12)CARBURETOR
(BOTTOM)(WH-12) -
11374-5643A97 CARBURETOR
(TOP)(WH-29)CARBURETOR
(TOP)(WH-29) -
11374-5643A98 CARBURETOR
(CENTER)(WH-29)CARBURETOR
(CENTER)(WH-29) -
11374-5643A99 CARBURETOR
(BOTTOM)(WH-29)CARBURETOR
(BOTTOM)(WH-29) -
21399-6249 JET, Main (.096), VENT BOWLJET, Main (.096), VENT BOWL
-
21395-7335 JET, (.098), VENT BOWLJET, (.098), VENT BOWL
-
3NSS NOT SOLD SEPARATE, GASKET, COVER PLATENOT SOLD SEPARATE, GASKET, COVER PLATE
-
41395-6032 PLATEPLATE
-
5NSS NOT SOLD SEPARATE, SCREW, COVER PLATENOT SOLD SEPARATE, SCREW, COVER PLATE
-
6NLA No Longer Available, FUEL BOWL
(WH-2/WH-9)No Longer Available, FUEL BOWL
(WH-2/WH-9) -
61395-7822 BOWL, Fuel
(WH-27/WH-29)BOWL, Fuel
(WH-27/WH-29) -
61395-7823 BOWL, Fuel
(TOP)(WH-12/WH-23)BOWL, Fuel
(TOP)(WH-12/WH-23) -
61395-7822 BOWL, Fuel
(CENTER/BOTTOM) (WH-12/WH-23)BOWL, Fuel
(CENTER/BOTTOM) (WH-12/WH-23) -
7NSS NOT SOLD SEPARATE, SCREW, FUEL BOWLNOT SOLD SEPARATE, SCREW, FUEL BOWL
-
81395-6025 PLUG, MAIN JETPLUG, MAIN JET
-
9NSS NOT SOLD SEPARATE, GASKET, MAIN JETNOT SOLD SEPARATE, GASKET, MAIN JET
-
101399-4216 JET, (.064), MAIN FUELJET, (.064), MAIN FUEL
-
101399-5225 JET, Main (.054), MAIN FUELJET, Main (.054), MAIN FUEL
-
101395-6359 JET, (.052), MAIN FUELJET, (.052), MAIN FUEL
-
101395-6028 JET, (.050), MAIN FUELJET, (.050), MAIN FUEL
-
101395-6246 JET, (.048), MAIN FUELJET, (.048), MAIN FUEL
-
11NSS NOT SOLD SEPARATE, SCREW, FLOAT PINNOT SOLD SEPARATE, SCREW, FLOAT PIN
-
12NSS NOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEATNOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEAT
-
131395-7624 NEEDLE/SEAT KIT, Inlet
(WH-9)NEEDLE/SEAT KIT, Inlet
(WH-9) -
131395-7824 NEEDLE/SEAT ASSEMBLY, InletNEEDLE/SEAT ASSEMBLY, Inlet
-
14NSS NOT SOLD SEPARATE, GASKET, NOZZLE BOSSNOT SOLD SEPARATE, GASKET, NOZZLE BOSS
-
151395-9267 FLOAT
(WH-9)FLOAT
(WH-9) -
151395-9267 FLOATFLOAT
-
16NSS NOT SOLD SEPARATE, PIN, FLOAT LEVERNOT SOLD SEPARATE, PIN, FLOAT LEVER
-
17NSS NOT SOLD SEPARATE, GASKET, FUEL BOWLNOT SOLD SEPARATE, GASKET, FUEL BOWL
-
181395-4541 SCREW, IDLE AIR BLEED JETSCREW, IDLE AIR BLEED JET
-
19NSS NOT SOLD SEPARATE, GASKET, BLEED JET PLUGNOT SOLD SEPARATE, GASKET, BLEED JET PLUG
-
201395-6359 JET, (.052), IDLE AIR BLEEDJET, (.052), IDLE AIR BLEED
-
201395-6487 JET, Main (.060), IDLE AIR BLEEDJET, Main (.060), IDLE AIR BLEED
-
201399-5225 JET, Main (.054), IDLE AIR BLEEDJET, Main (.054), IDLE AIR BLEED
-
201399-5213 JET, Main (.056), IDLE AIR BLEEDJET, Main (.056), IDLE AIR BLEED
-
211395-6027 SCREW, THROTTLE LEVERSCREW, THROTTLE LEVER
-
2267752 LEVERLEVER
-
23NSS NOT SOLD SEPARATE, SPRING, THROTTLE RETURNNOT SOLD SEPARATE, SPRING, THROTTLE RETURN
-
241395-6031 SPACER, THROTTLE LEVERSPACER, THROTTLE LEVER
-
251395-6022 SHAFTSHAFT
-
26NSS NOT SOLD SEPARATE, RING, RETAINER - THROTTLE SHAFTNOT SOLD SEPARATE, RING, RETAINER - THROTTLE SHAFT
-
27NLA No Longer Available, Throttle Valve
(WH-2)No Longer Available, Throttle Valve
(WH-2) -
271395-7626 VALVE, Throttle
(WH-9/WH-12)VALVE, Throttle
(WH-9/WH-12) -
271395-6023 VALVE, ThrottleVALVE, Throttle
-
28NSS NOT SOLD SEPARATE, SCREW, THROTTLE VALVENOT SOLD SEPARATE, SCREW, THROTTLE VALVE
-
-1395-6452 GASKET KITGASKET KIT
-
-1395-7826 REPAIR KIT
(WH-2/WH-9/WH-12)REPAIR KIT
(WH-2/WH-9/WH-12) -
-1395-8506 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
