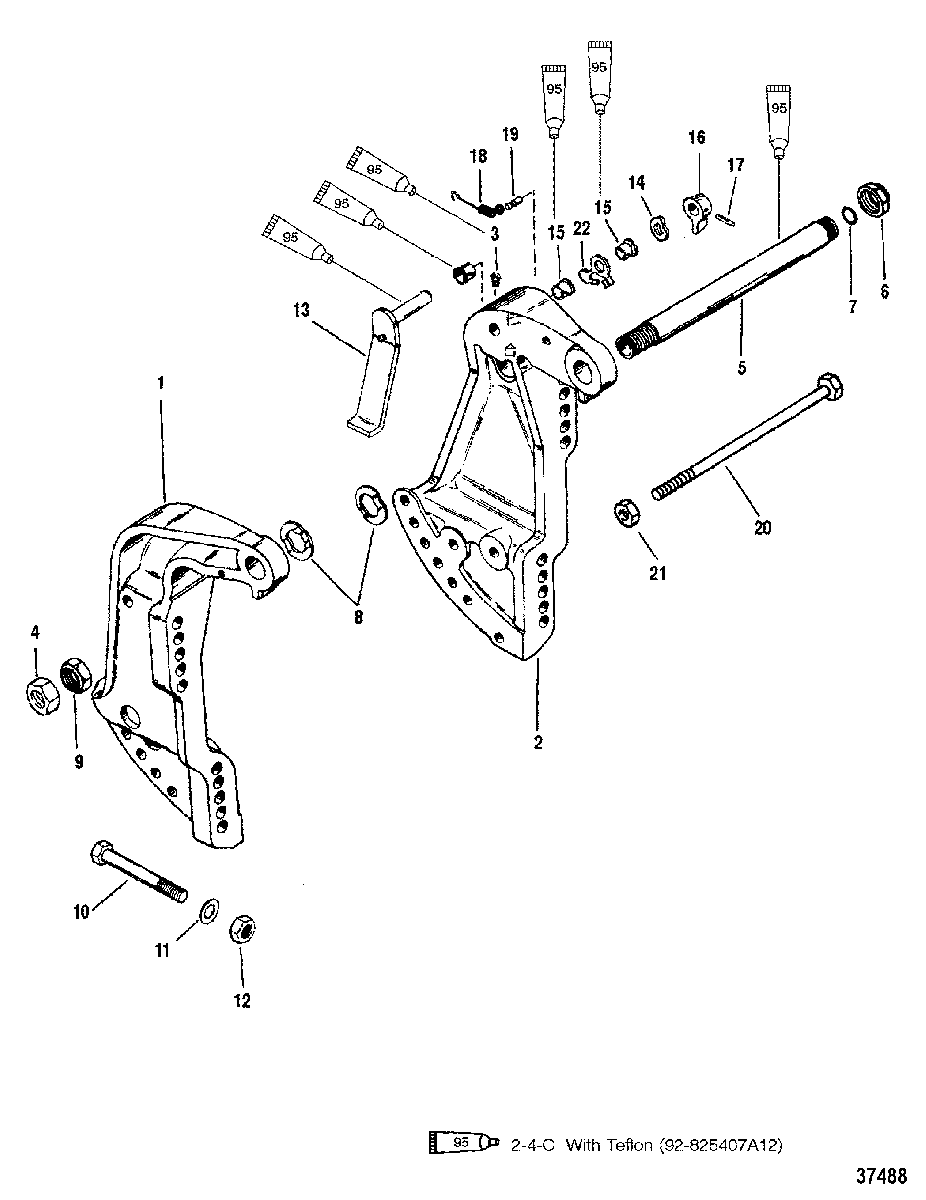

TRANSOM BRACKETS(S/N-0G589999 & BELOW) для Mariner - V-175 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
13401-8718F7 BRACKET, Transom
(STARBOARD) BLACKBRACKET, Transom
(STARBOARD) BLACK -
23400-8716A8 BRACKET ASSEMBLY, Transom
(PORT) BLACKBRACKET ASSEMBLY, Transom
(PORT) BLACK -
13401-8718F8 BRACKET, Transom
(STARBOARD) GRAYBRACKET, Transom
(STARBOARD) GRAY -
23400-8716A9 BRACKET ASSEMBLY, Transom
(PORT) GRAYBRACKET ASSEMBLY, Transom
(PORT) GRAY -
322-98727 FITTING, Grease (PORT)FITTING, Grease (PORT)
-
411-47525 NUT, (.875-14), BottomNUT, (.875-14), Bottom
-
5826125A1 TILT TUBETILT TUBE
-
611-826135 NUT, (1.00-14) Brass/Nickel PlateNUT, (1.00-14) Brass/Nickel Plate
-
725-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
813-88750 WASHERWASHER
-
911-826164 NUT, (.875-14)NUT, (.875-14)
-
1010-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1211-91962 NUT, (.500-20)NUT, (.500-20)
-
138M0115104 LEVER ASSEMBLYLEVER ASSEMBLY
-
1413-99611 WAVE WASHERWAVE WASHER
-
1523-65830 NYLINERNYLINER
-
1699633 KNOBKNOB
-
1717-99615 PIN, GroovePIN, Groove
-
1824-99622 SPRINGSPRING
-
1917-99604 PIN, GroovePIN, Groove
-
2010-96930A1 BOLT ASSEMBLYBOLT ASSEMBLY
-
2111-23161 NUT, (.375-24)NUT, (.375-24)
-
22814207 STOPSTOP
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
