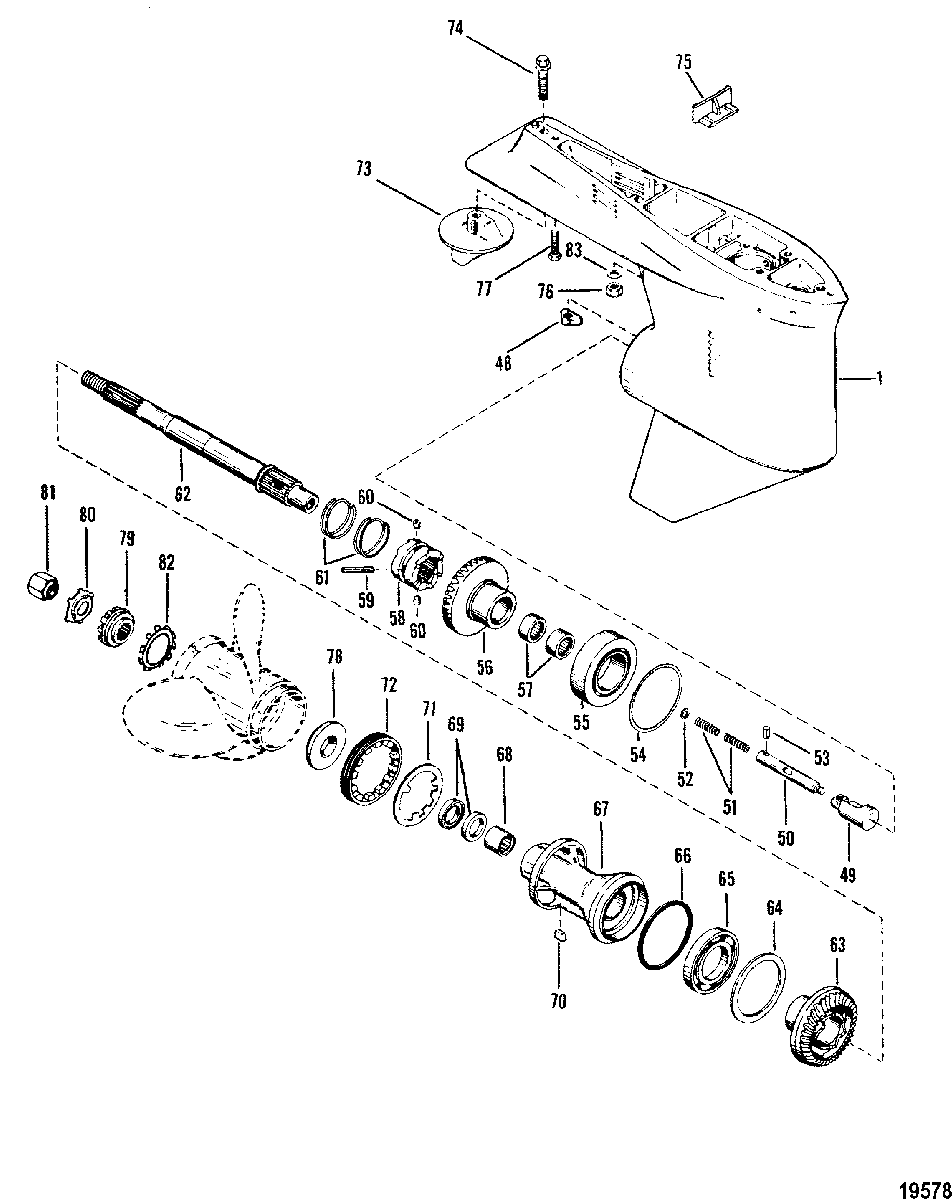

GEAR HOUSING(PROPELLER SHAFT)(2.0:1) для Mariner - V-175 (MAG/EFI) 0D000750 THRU 0D081999
-
№АртикулНазвание
-
-1647-9148T81 GEAR HOUSING, STANDARD ROTATION 2:1 GEAR RATIO (Complete)GEAR HOUSING, STANDARD ROTATION 2:1 GEAR RATIO (Complete)
-
11647-9148T47 GEAR HOUSING ASSEMBLY (Basic)GEAR HOUSING ASSEMBLY (Basic)
-
48789562 SHIFT CAMSHIFT CAM
-
4989594A1 FOLLOWER, CAMFOLLOWER, CAM
-
5079911A1 ROD, CLUTCH ACTUATORROD, CLUTCH ACTUATOR
-
5124-79910 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5212-78910 WASHER, COMPRESSION SPRINGWASHER, COMPRESSION SPRING
-
5317-8M0084245 PIN, SPRING LOCATORPIN, SPRING LOCATOR
-
5415-47397A1 SHIM SET, BEARING OUTER RACE (.002-3-5-10)SHIM SET, BEARING OUTER RACE (.002-3-5-10)
-
5531-78172A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
5643-44102A2 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5731-73363T BEARING, Roller (5/8")BEARING, Roller (5/8")
-
5731-549281 BEARING, Roller (1")BEARING, Roller (1")
-
5852-8M0100493 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5917-8M0084243 PIN, Cross, RATCHET TO PROPELLER SHAFTPIN, Cross, RATCHET TO PROPELLER SHAFT
-
6017-78909 PIN, Detent, RATCHETPIN, Detent, RATCHET
-
6124-78962 SPRING, RETAINING-CROSS PINSPRING, RETAINING-CROSS PIN
-
6244-94148 PROPELLER SHAFTPROPELLER SHAFT
-
63N.S.S. Not Sold Seperate, Reverse Gear (PART OF 43-44102A2)Not Sold Seperate, Reverse Gear (PART OF 43-44102A2)
-
64681001 RING, THRUST - BEARING CARRIERRING, THRUST - BEARING CARRIER
-
6530-88957T BEARING, Ball, BALL - REVERSE GEARBEARING, Ball, BALL - REVERSE GEAR
-
6625-31534 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
6743567T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6831-30956T BEARING, Needle, BEARING CARRIERBEARING, Needle, BEARING CARRIER
-
6926-76868 SEAL, BEARING CARRIERSEAL, BEARING CARRIER
-
7028-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7114-79447 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
728M2000347 RETAINER, GEAR HOUSINGRETAINER, GEAR HOUSING
-
7397-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7410-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSINGSCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
-
758M0039169 FILLER BLOCKFILLER BLOCK
-
7611-34933 NUT, (.437-20)NUT, (.437-20)
-
7710-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
7710-74727 SCREW, (.375-16 x 6.00)SCREW, (.375-16 x 6.00)
-
7812-835467Q01 THRUST HUBTHRUST HUB
-
7912-31211Q03 WASHER, SplinedWASHER, Splined
-
8014-816629Q TAB WASHERTAB WASHER
-
8111-52707Q1 NUT KIT, PropellerNUT KIT, Propeller
-
8213-423511 LOCKWASHERLOCKWASHER
-
8312-45176 WASHER, (.453 x .812 x .105)WASHER, (.453 x .812 x .105)
-
-26-89238A2 SEAL KITSEAL KIT
-
-27-815791A92 GASKET SET
(200)GASKET SET
(200) -
-27-815791A92 GASKET SET
(175)GASKET SET
(175)
