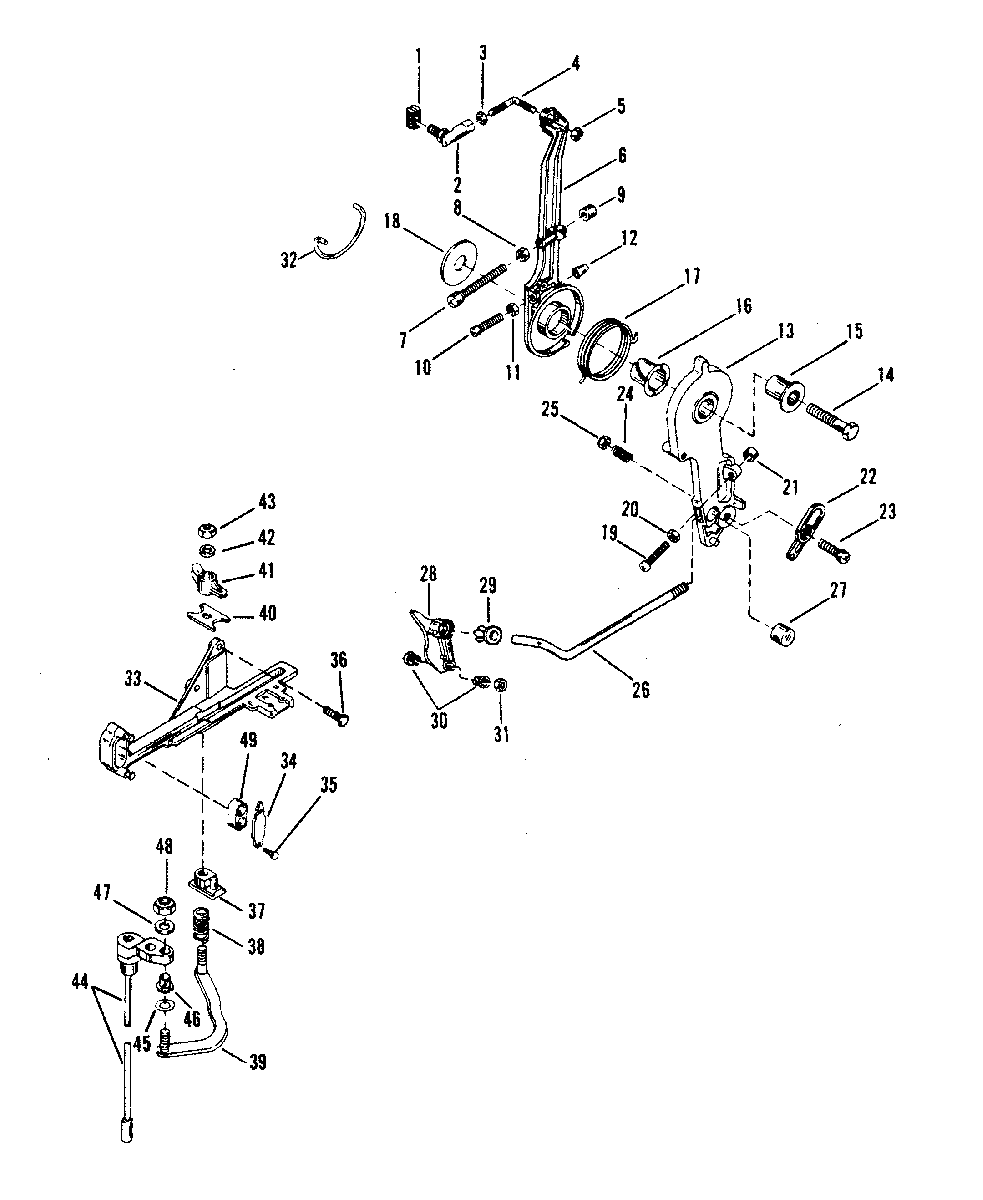

THROTTLE LEVER AND SHIFT SHAFT для Mariner - V-175 (SKI) 0C239553 THRU 0D081999
-
№АртикулНазвание
-
174897T PIVOT, TRIGGER PLATEPIVOT, TRIGGER PLATE
-
262459T BALL JOINT, TRIGGER PLATEBALL JOINT, TRIGGER PLATE
-
311-45076 NUT, LINK RODNUT, LINK ROD
-
476035 LINK ROD, TRIGGER PLATELINK ROD, TRIGGER PLATE
-
511-46438 NUT, BALL JOINTNUT, BALL JOINT
-
641094A3 LEVER, SPARK ADVANCELEVER, SPARK ADVANCE
-
710-64022 SCREW, SPARK ADVANCE LEVER-STOPSCREW, SPARK ADVANCE LEVER-STOP
-
811-64015 NUT, SPARK ADVANCE STOP SCREWNUT, SPARK ADVANCE STOP SCREW
-
926852 CAP, SPARK ADVANCE LEVER STOP SCREWCAP, SPARK ADVANCE LEVER STOP SCREW
-
1010-13627 SCREW, SPARK ADVANCE LEVER-STOP (1-1/4")SCREW, SPARK ADVANCE LEVER-STOP (1-1/4")
-
1111-68219 NUT, SPARK ADVANCE LEVER STOP SCREWNUT, SPARK ADVANCE LEVER STOP SCREW
-
1248039 CAP, SPARK ADVANCE LEVER STOP SCREWCAP, SPARK ADVANCE LEVER STOP SCREW
-
13410952 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1410-818165 SCREW, THROTTEL LEVER/ADVANCE LEVER (1-3/4")SCREW, THROTTEL LEVER/ADVANCE LEVER (1-3/4")
-
1523-55164 BUSHING, THROTTLE LEVERBUSHING, THROTTLE LEVER
-
1623-55171 BUSHING, SPARK ADVANCE LEVERBUSHING, SPARK ADVANCE LEVER
-
1724-68784 SPRING, THROTTLE AND SPARK ADVANCE LEVERSPRING, THROTTLE AND SPARK ADVANCE LEVER
-
1812-46765 WASHER, SPARK ADVANCE LEVERWASHER, SPARK ADVANCE LEVER
-
1910-64022 SCREW, THROTTLE LEVER-STOP (2-1/8")SCREW, THROTTLE LEVER-STOP (2-1/8")
-
2011-64015 NUT, THROTTLE LEVER STOP SCREWNUT, THROTTLE LEVER STOP SCREW
-
2126852 CAP, THROTTLE LEVER STOP SCREWCAP, THROTTLE LEVER STOP SCREW
-
2239483 LATCH, CABLELATCH, CABLE
-
2310-69026 SCREW, CABLE LATCH TO THROTTLE LEVERSCREW, CABLE LATCH TO THROTTLE LEVER
-
2424-20099 SPRING, CABLE LATCH TO THROTTLE LEVERSPRING, CABLE LATCH TO THROTTLE LEVER
-
2511-826709109 NUT, CABLE LATCH SCREWNUT, CABLE LATCH SCREW
-
2614634 ROD, THROTTLE CONTROLROD, THROTTLE CONTROL
-
2714638 BARREL, THROTTLE CONTROL RODBARREL, THROTTLE CONTROL ROD
-
288142392 THROTTLE CAMTHROTTLE CAM
-
2923-932481 SWIVEL BUSHINGSWIVEL BUSHING
-
3023-26856 BUSHING, THROTTLE CAMBUSHING, THROTTLE CAM
-
3111-826709109 NUT, THROTTLE CAM STUDNUT, THROTTLE CAM STUD
-
3224-41050 SPRING, THROTTLE RETURNSPRING, THROTTLE RETURN
-
33814283A2 BRACKET, ANCHOR-CONTROL CABLESBRACKET, ANCHOR-CONTROL CABLES
-
3498889 LATCH, CONTROL CABLELATCH, CONTROL CABLE
-
3510-42975 SCREW, LATCHSCREW, LATCH
-
3610-53167T SCREW, ANCHOR BRACKET ATTACHINGSCREW, ANCHOR BRACKET ATTACHING
-
37814284 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
3824-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
3967073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
4052100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
418M0036768 LATCH, CONTROL CABLE FASTENING
ANCHOR BRACKETLATCH, CONTROL CABLE FASTENING
ANCHOR BRACKET -
4212-35462 WASHER, LATCHWASHER, LATCH
-
4311-826709109 NUT, LINK RODNUT, LINK ROD
-
4479932A16 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
4513-29720 WAVE WASHER, LINK RODWAVE WASHER, LINK ROD
-
4623-26600 BUSHING, NYLON-LINK RODBUSHING, NYLON-LINK ROD
-
4712-35462 WASHER, LINK RODWASHER, LINK ROD
-
4811-826709109 NUT, LINK ROD TO SHIFT SHAFTNUT, LINK ROD TO SHIFT SHAFT
-
4939519 CAP, BARREL RETAINER-ANCHOR BARCAP, BARREL RETAINER-ANCHOR BAR
