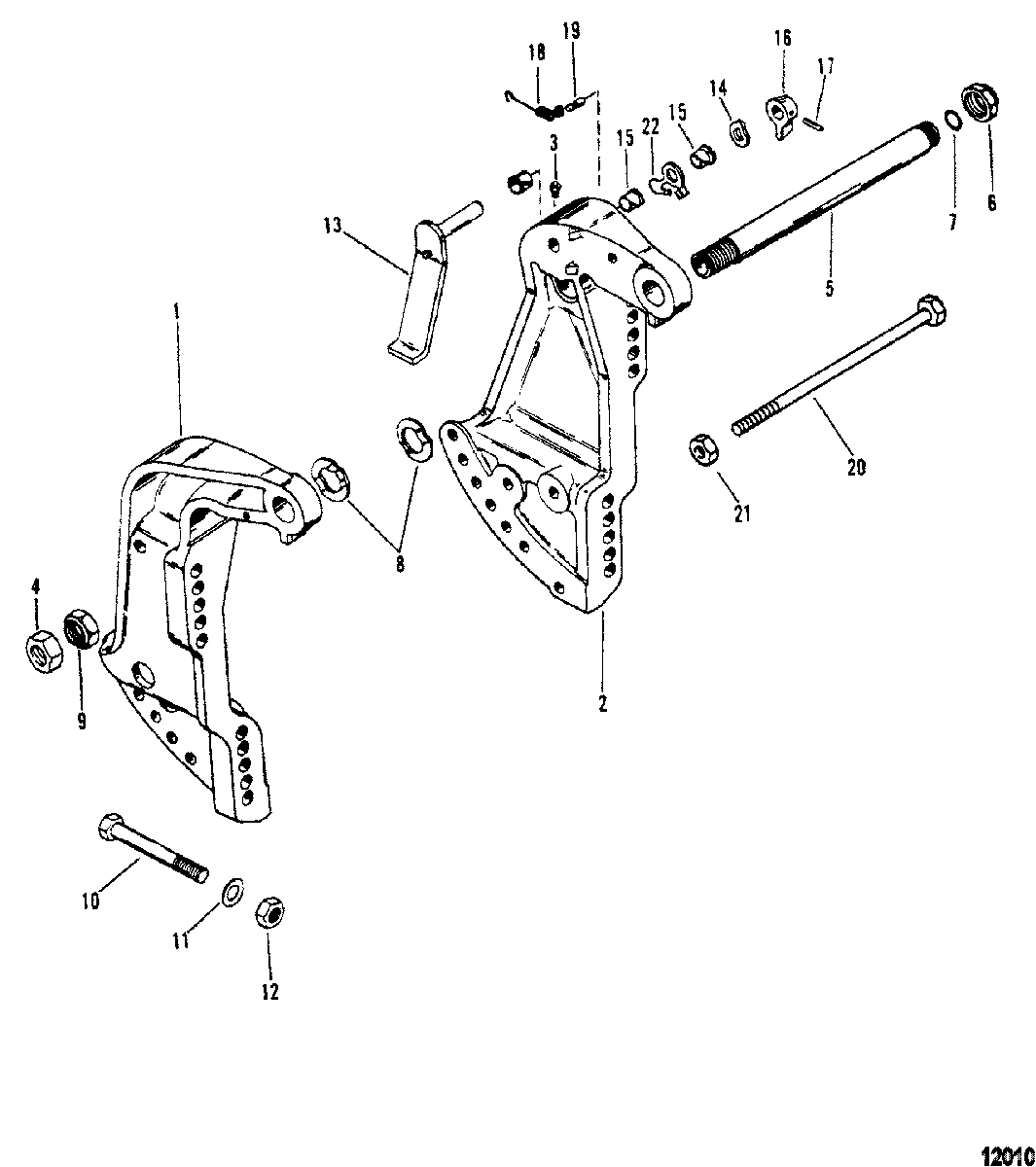

Transom Brackets для Mariner - V-175 (SKI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
13401-8718F7 BRACKET, Transom, Starboard - BlackBRACKET, Transom, Starboard - Black
-
23400-8716A8 BRACKET ASSEMBLY, Transom, Port - BlackBRACKET ASSEMBLY, Transom, Port - Black
-
13401-8718F8 BRACKET, Transom, Starboard - GrayBRACKET, Transom, Starboard - Gray
-
23400-8716A9 BRACKET ASSEMBLY, Transom, Port - GrayBRACKET ASSEMBLY, Transom, Port - Gray
-
13401-8718F10 BRACKET, Transom, Starboard - TrackerBRACKET, Transom, Starboard - Tracker
-
23400-8716A10 BRACKET ASSEMBLY, Transom, Port - TrackerBRACKET ASSEMBLY, Transom, Port - Tracker
-
322-98727 FITTING, Grease, PortFITTING, Grease, Port
-
411-8M0041651 NUT, (.875-14)NUT, (.875-14)
-
5826125A1 TUBE KIT, Tilt, Carbon SteelTUBE KIT, Tilt, Carbon Steel
-
5826125A1 TILT TUBE, Stainless SteelTILT TUBE, Stainless Steel
-
611-826135 NUT, (1.00-14) Nylon Insert, BlackNUT, (1.00-14) Nylon Insert, Black
-
611-82671327 NUT, (1.00-14), GrayNUT, (1.00-14), Gray
-
611-82671327 NUT, (1.00-14), TrackerNUT, (1.00-14), Tracker
-
725-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
813-88750 WASHERWASHER
-
911-826164 NUT, (.875-14)NUT, (.875-14)
-
1010-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1211-91962 NUT, (.500-20)NUT, (.500-20)
-
138M0115104 LEVER ASSEMBLYLEVER ASSEMBLY
-
1413-99611 WAVE WASHERWAVE WASHER
-
1523-65830 NYLINERNYLINER
-
1699633 KNOBKNOB
-
1717-99615 PIN, GroovePIN, Groove
-
1824-99622 SPRINGSPRING
-
1917-99604 PIN, GroovePIN, Groove
-
2010-96930A1 BOLT ASSEMBLYBOLT ASSEMBLY
-
2111-23161 NUT, (.375-24)NUT, (.375-24)
-
22814207 STOPSTOP
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
