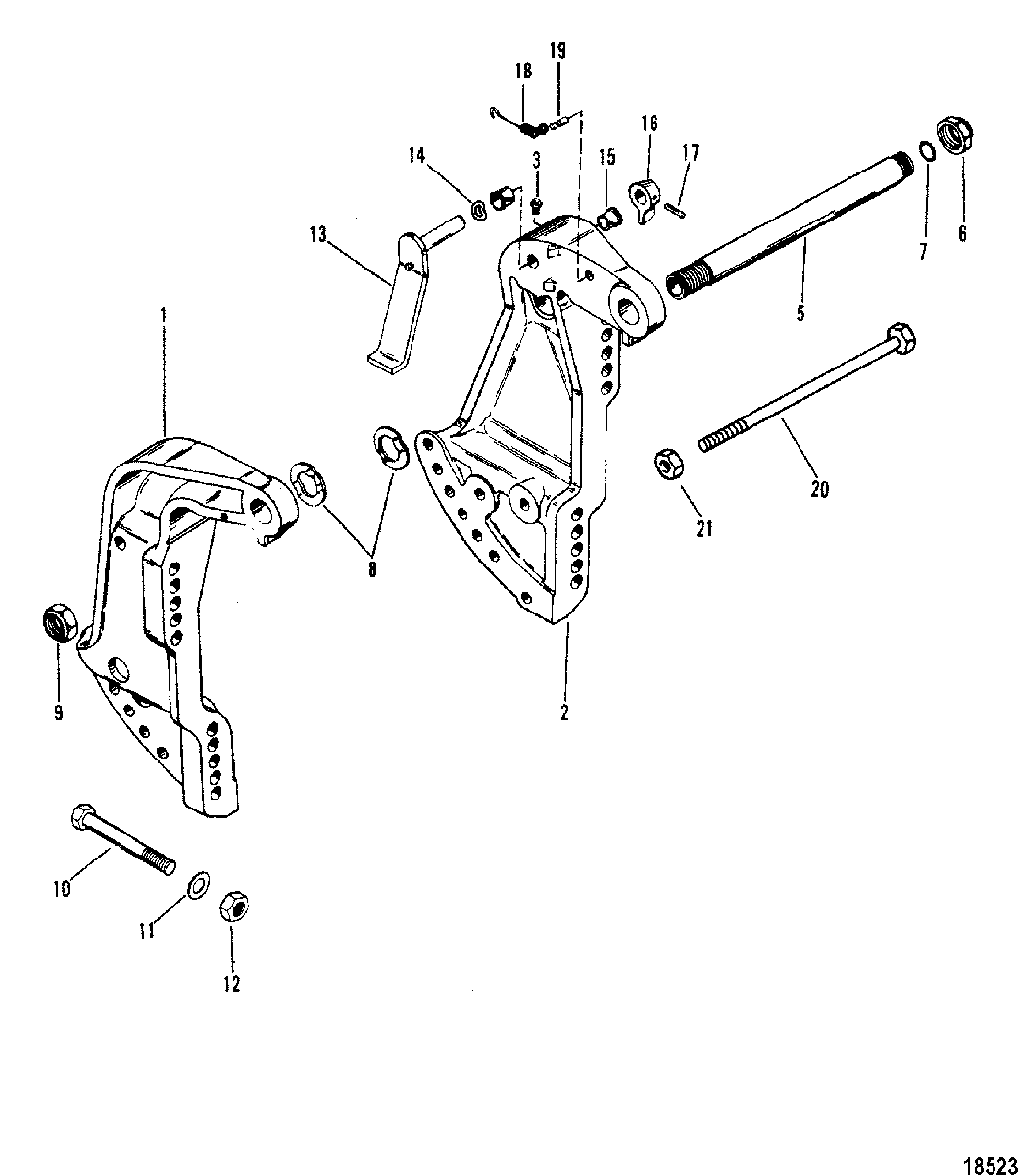

TRANSOM BRACKETS для Mariner - V-175 0C100861 THRU 0C239552
-
№АртикулНазвание
-
13401-8718F7 BRACKET ASSEMBLY, Transom
(STARBOARD) (BLACK)BRACKET ASSEMBLY, Transom
(STARBOARD) (BLACK) -
13401-8718F8 BRACKET ASSEMBLY, Transom
(STARBOARD) (GRAY)BRACKET ASSEMBLY, Transom
(STARBOARD) (GRAY) -
23400-8716A8 BRACKET ASSEMBLY, Transom
(PORT) (BLACK)BRACKET ASSEMBLY, Transom
(PORT) (BLACK) -
23400-8716A9 BRACKET ASSEMBLY, Transom
(PORT) (GRAY)BRACKET ASSEMBLY, Transom
(PORT) (GRAY) -
322-98727 FITTING, Grease, PORT TRANSOM BRACKETFITTING, Grease, PORT TRANSOM BRACKET
-
5826125A1 TILT TUBETILT TUBE
-
611-82671327 NUT, TILT TUBE (1"-14)
(BLACK)NUT, TILT TUBE (1"-14)
(BLACK) -
611-82671327 NUT, TILT TUBE (1"-14)
(GRAY)NUT, TILT TUBE (1"-14)
(GRAY) -
725-45711 O-RING, (.612 x .103), TILT TUBEO-RING, (.612 x .103), TILT TUBE
-
813-88750 WASHER, TILT TUBEWASHER, TILT TUBE
-
911-858869 NUT, (.875-14), TILT TUBENUT, (.875-14), TILT TUBE
-
1010-677551 SCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOMSCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOM
-
1112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLTWASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLT
-
1112-24501 WASHER, TRANSOM BRACKET BOLT
(UPPER - SEA RAY)WASHER, TRANSOM BRACKET BOLT
(UPPER - SEA RAY) -
1211-91962 NUT, (.500-20), TRANSOM BRACKET BOLTNUT, (.500-20), TRANSOM BRACKET BOLT
-
138M0115104 LEVER ASSEMBLY, TILT LOCKLEVER ASSEMBLY, TILT LOCK
-
1413-99611 WAVE WASHER, TILT LEVERWAVE WASHER, TILT LEVER
-
1523-65830 NYLINER, TILT LEVERNYLINER, TILT LEVER
-
1699633 KNOB, TILT LOCK LEVER
(BLACK)KNOB, TILT LOCK LEVER
(BLACK) -
1699633 KNOB, TILT LOCK LEVER
(GRAY)KNOB, TILT LOCK LEVER
(GRAY) -
1717-99615 PIN, GroovePIN, Groove
-
1824-99622 SPRINGSPRING
-
1917-99604 PIN, GroovePIN, Groove
-
2010-96930A1 BOLT ASSEMBLY, TILT LOCKBOLT ASSEMBLY, TILT LOCK
-
2111-23161 NUT, (.375-24), BOLTNUT, (.375-24), BOLT
-
-27-11338A88 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
