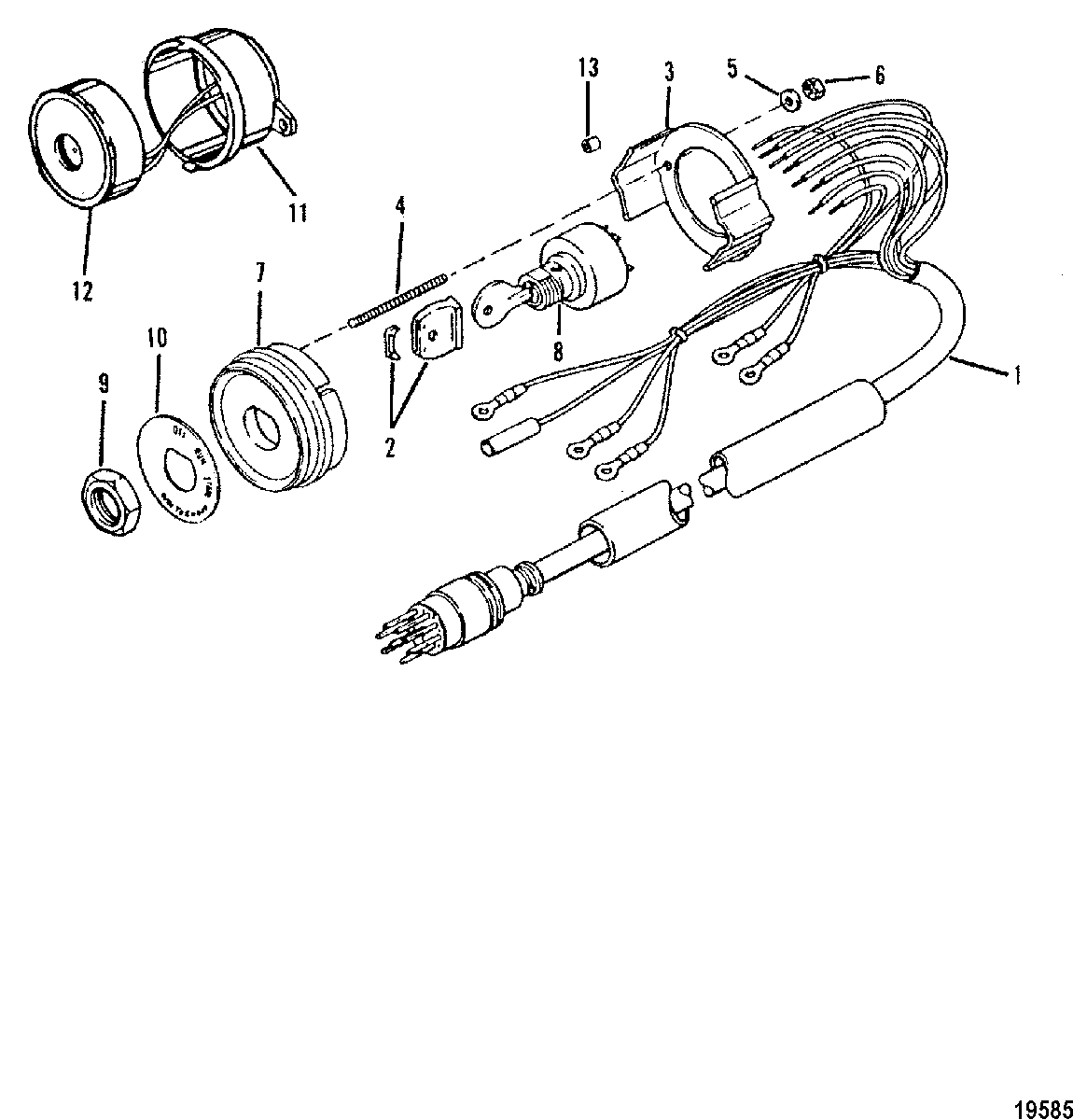

Key Switch Assembly для Mariner - V-200 (2.5L) 1991 ONLY 0C291520 THRU 0D081999
-
№АртикулНазвание
-
184-816626A20 KEY SWITCH ASSEMBLY (20")KEY SWITCH ASSEMBLY (20")
-
290468A1 COVER ASSEMBLY, KeyCOVER ASSEMBLY, Key
-
376424 BRACKETBRACKET
-
416-55422 STUD, (#10-32 x 2.00)STUD, (#10-32 x 2.00)
-
512-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
611-68219 NUT, (#10-32)NUT, (#10-32)
-
7816479A3 PLATEPLATE
-
887-88107A5 KEY SWITCH (SEE CHART FOR KEY)KEY SWITCH (SEE CHART FOR KEY)
-
911-879755 NUT, SpecialNUT, Special
-
1038-90311 INSERTINSERT
-
1168878A6 ALARM HORN AND WIRE ASSEMBLYALARM HORN AND WIRE ASSEMBLY
-
1268879 COVERCOVER
-
1323-8127111 SPACER, (.375)SPACER, (.375)
-
1323-812711 SPACER, (.250)SPACER, (.250)
-
NS894911 KEY, Ignition (1A)KEY, Ignition (1A)
-
NS894917 KEY, Ignition (2A)KEY, Ignition (2A)
-
NS894912 KEY, Ignition (1B)KEY, Ignition (1B)
-
NS894918 KEY, Ignition (2B)KEY, Ignition (2B)
-
NS894913 KEY, Ignition (1C)KEY, Ignition (1C)
-
NS894919 KEY, Ignition (2C)KEY, Ignition (2C)
-
NS894914 KEY, Ignition (1D)KEY, Ignition (1D)
-
NS8949110 KEY, Ignition (2D)KEY, Ignition (2D)
-
NS894915 KEY, Ignition (1E)KEY, Ignition (1E)
-
NS8949111 KEY, Ignition (2E)KEY, Ignition (2E)
-
NS894916 KEY, Ignition (1F)KEY, Ignition (1F)
-
NS8949112 KEY, Ignition (2F)KEY, Ignition (2F)
