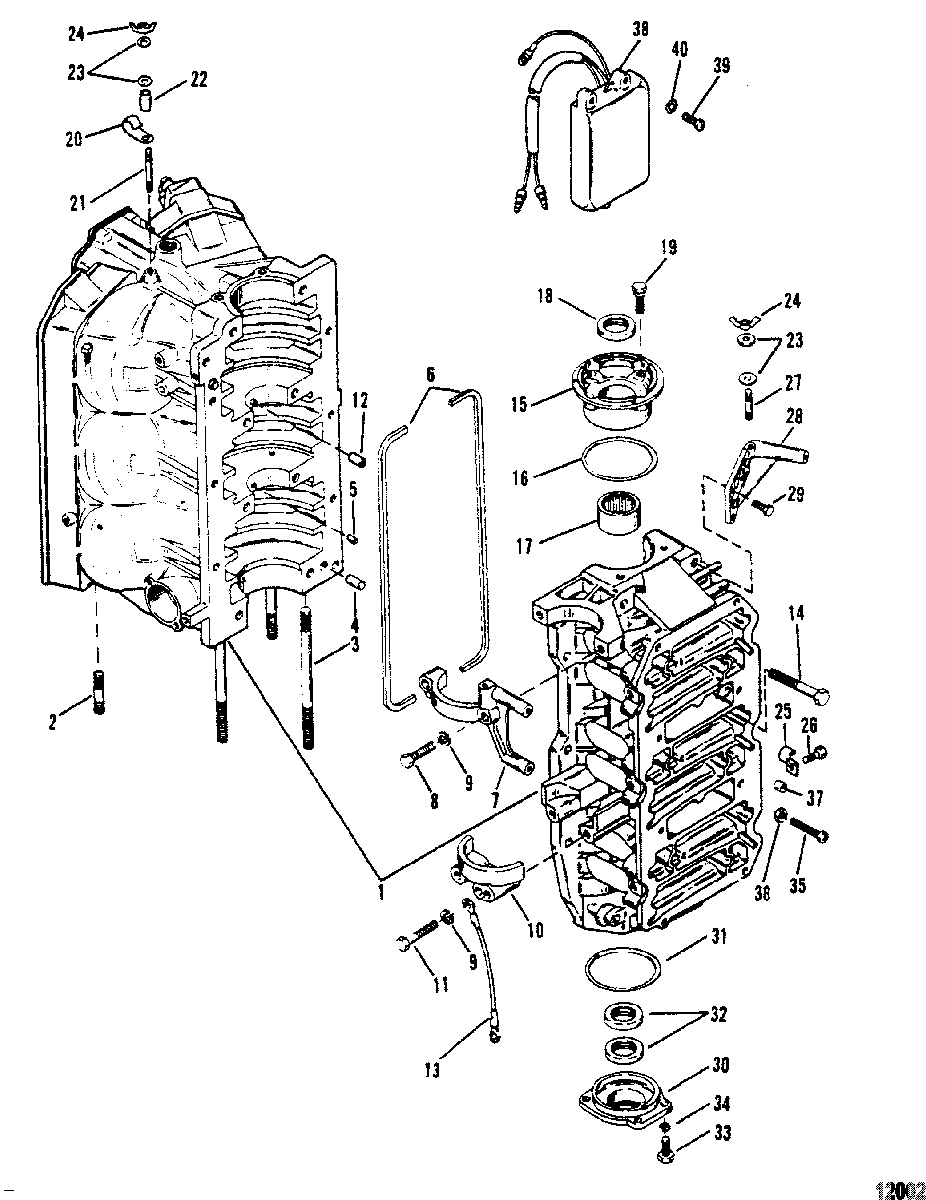

Cylinder Block And End Caps для Mariner - V-200 (MAG/EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
1884-9763T23 CYLINDER BLOCK (150)CYLINDER BLOCK (150)
-
1884-9763T17 CYLINDER BLOCK (175)CYLINDER BLOCK (175)
-
1884-9763T61 CYLINDER BLOCK (200)CYLINDER BLOCK (200)
-
216-76175 STUD, Powerhead (1.875) (Old Design)STUD, Powerhead (1.875) (Old Design)
-
216-8M0034455 STUD, Powerhead (1.75")STUD, Powerhead (1.75")
-
316-670654 STUD, Powerhead (5.50")STUD, Powerhead (5.50")
-
316-8M0034454 STUD, Powerhead (6.75")STUD, Powerhead (6.75")
-
417-43044 PIN, Dowel - Without Hole (.375 x .625), LocatingPIN, Dowel - Without Hole (.375 x .625), Locating
-
517-8M0036405 PIN, Bearing RacePIN, Bearing Race
-
627-11338 GASKET, SealingGASKET, Sealing
-
78M0088723 COVER, Starter Motor-UpperCOVER, Starter Motor-Upper
-
810-828213 SCREW, (.312-18 x 1.500) Hex Flange, Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange, Hex Flange
-
810-73657 SCREW, (.312-18 x 1.50), Use with LockwasherSCREW, (.312-18 x 1.50), Use with Lockwasher
-
913-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1076867 COVER, LowerCOVER, Lower
-
1110-815549 SCREW, (.312-18 x 2.00)SCREW, (.312-18 x 2.00)
-
1110-828214 SCREW, (.312-18 x 2.00) Hex Flange, Hex Head FlangeSCREW, (.312-18 x 2.00) Hex Flange, Hex Head Flange
-
1223-99448 BUSHINGBUSHING
-
1384-88807A20 CABLE ASSEMBLYCABLE ASSEMBLY
-
1410-66717 SCREW, (.375-16 x 3.250)SCREW, (.375-16 x 3.250)
-
1410-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
151159-858521T1 END CAP ASSEMBLY, UpperEND CAP ASSEMBLY, Upper
-
1625-54029 O-RING, (2.800 x .103)O-RING, (2.800 x .103)
-
1731-16756A4 BEARING KITBEARING KIT
-
1826-41953 SEALSEAL
-
1910-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)SCREW AND LOCKWASHER, (.312-18 x 1.00)
-
2054-63153 J CLIPJ CLIP
-
2116-15094 STUD, (.190-32 x 1.870)STUD, (.190-32 x 1.870)
-
2223-67269 SPACERSPACER
-
2312-49221 WASHER, (.187 x .500 x .062) NeopreneWASHER, (.187 x .500 x .062) Neoprene
-
2411-816874 WING NUT, (#10-32)WING NUT, (#10-32)
-
2554-16793 CLAMPCLAMP
-
2610-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
2716-8M0034435 STUD, (#10-32 x 1.00)STUD, (#10-32 x 1.00)
-
28422482 BRACKETBRACKET
-
2910-49668 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
301156-7809T1 END CAP ASSEMBLYEND CAP ASSEMBLY
-
3125-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
3226-41953 SEALSEAL
-
3310-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
3413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3510-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
3611-64015 NUT, (.250-20)NUT, (.250-20)
-
3726852 CAP, NylonCAP, Nylon
-
3887076A10 IDLE SPEED CONTROLIDLE SPEED CONTROL
-
3910-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
4012-38833 WASHERWASHER
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-823434R97 POWERHEAD ASSEMBLY (150)POWERHEAD ASSEMBLY (150)
-
-812817R97 POWERHEAD ASSEMBLY (175)POWERHEAD ASSEMBLY (175)
-
-813043R97 POWERHEAD ASSEMBLY (200)POWERHEAD ASSEMBLY (200)
